0~12W E16 flyback transformer output power range is 0-12W,used in mobile phone charger, digital cameras,auxiliary power transformer.Our series mumber is MCTE1603-MCT1613.
brand:
MCTitem no.:
0~12 W E16 Flyback Transformershipping port:
ShanghaiHigh frequency flyback transformers are suitable for power supplies and a variety of power adapters. However, the design difficulty of the flyback converter is the design of the transformer, because the input voltage range is wide, especially at low input voltage, full load conditions, the transformer will work in continuous current mode, and in high input voltage, light load conditions transformer will work in discontinuous current mode. 0~12W E16 high frequency flyback transformer, the circuit is simple, can provide multi-channel DC output, so suitable for multiple sets of output requirements, it's conversion efficiency is high, the loss is small.
Quick Details
|
Part No: 0~12 W E16 Flyback Transformer |
|
Brand name: MCT |
|
The operating frequency: 20kHz-500KHz |
|
Custom made: Available |
|
Working temperature: -40 ℃ to + 125 ℃ |
|
Logo: Can be customized |
|
Storage temperature: -25 ℃ to + 85 ℃ |
|
Packing: Carton,can custom |
|
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
|
Power range: 0.5W~15W |
|
OEM: Available |
|
Shape type: horizontal, vertical |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: 0~12W E16 High Power Flyback Transformer For Switching Power Supply
Applications: Single-phase Transformer, DC-DC converter, Driving transformer, Power transformer, Digital camera, hand-held switching mode power charger.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Details

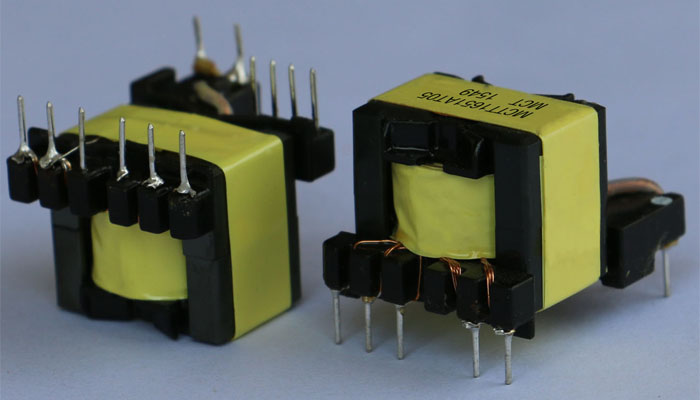

E16 type single output 5V/12V flyback transformer, our PN includes MCTE1601 and MCTE1602
SIZE E16-2 OUTPUT:5 or 12V and 3.3 or 5V-flyback transformer, our PN includes MCTE1603 and MCTE1604
SIZE E16-SINGLE OUTPUT:5 or 12v transformer for tiny switch,our PN includes MCTE1605, MCTE1606, MCTE1607, MCTE1608, MCTE1609, MCTE1610
SIZE E16-2 OUTPUTS:5 or 12v -flyback transformer, our PN includes MCTE1611, MCTE1612 and MCTE1613
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
