Single phase EMI noise filters. Rated currents from 1A to 10A. Low leakage current and high quality components ensure the safety and reliability of filters. Various terminal options: faston/screw/wire.
brand:
MCTitem no.:
MCT2S Single Phase Single Stage Filters Seriesshipping port:
Shanghai
We design and produce various EMI power filters, with easy and fast chassis mounting. We use high quality components to ensure the safety and reliability of EMI filters.
Quick Details

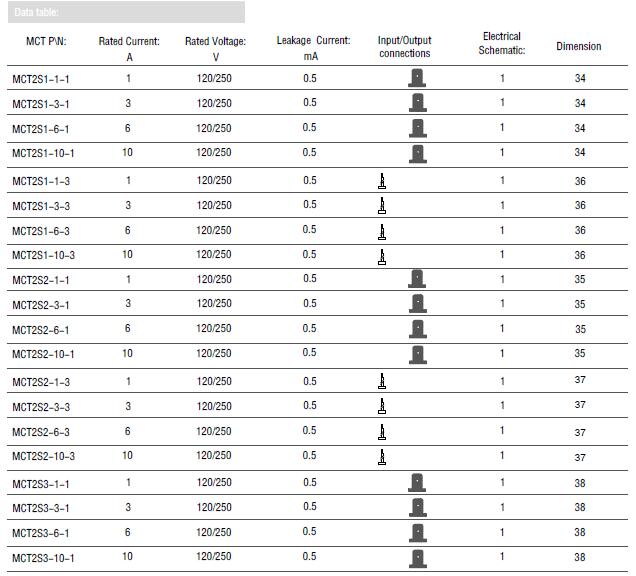

MCT2S Single Phase Single Stage Filters Series |
Brand name: MCT |
Rated Voltage: 120/250VAC |
Custom made: Available |
Rated Current: 1A~10A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |

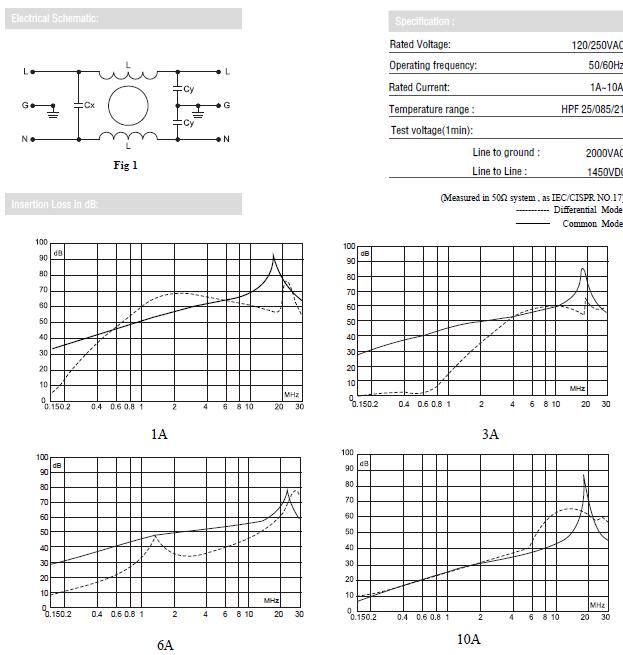

Part Information

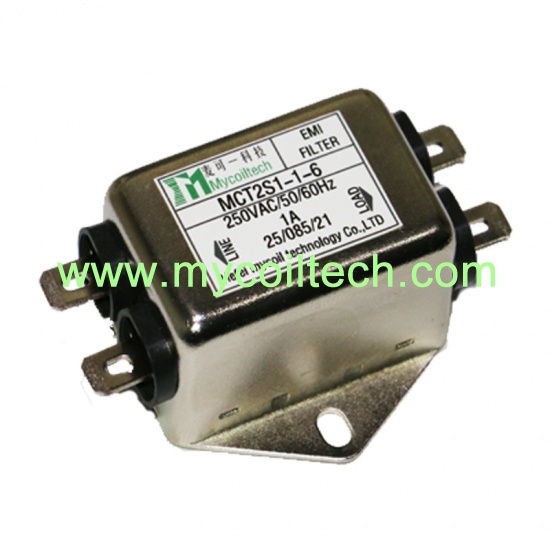

Product Name: 10A 120V Single Phase Single Stage EMI Filters
Applications: Single-phase power supplies. Medical equipment. Electrical and electronic equipment. Test and measurement equipment. Household equipment and consumer goods.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
Single phase single stage noise filters. Rated currents from 6A to 100A. Low leakage current and high quality components ensure the safety and reliability of filters. Various terminal options: faston/screw/wire.
Single phase two stage noise filters. MCT2S7 two-stage filters are designed for noisy applications requiring good differential and common-mode attenuation. Rated currents from 1A to 35A. Easy and fast chassis mounting. Various terminal options: faston/screw/wire.
Single phase power filters. High performance with differential mode choke. Good low frequency attenuation. Good performance for inverter and kinds of speed motor apparatus, which meet the RFI electromagnetic compatibility of Euro standards. Welcome for customized products.
3+3 Pins DIP Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
EF20 power transformer bobbin, 4+4 pins horizontal EF20 transformer bobbin, phenolic material EF20 bobbin. Pin pitch=5.0mm, Bobbin Size=20.0mmX19.8mmX15.50mm. Parallel distance=15.0mm. We manufacture final transformers, custom design and OEM transformers also acceptable.
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=19mmX16.5mmX11.7mm
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=8.5mm
3+3 pins double slots EE20 bobbin. Horizontal EE20 ferrite coils. Bobbin Size=20.0mmX13.6mmX13.6mm. Pin Pitch=5.0mm. Row distance=15.0mm. DIP transformer EE20 bobbin. EE20 electronic transformer mainly used in UPS, DC converters, switching power supply, computers, LED lights, test equipment, measurement and control unit.
High voltage ETD29 transformer. Ferrite core ETD29 bobbin 6+6 pins single slot bobbin. Parallel Distance=25.6mm.Pin pitch=5.08mm. Bobbin Size=35.2mmX33.5mmX24.9mm. We manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
ERL28 flyback transformer for switching power supply, kinds of high-frequency circuit. It has small volume,light weight,nice appearance.It palys important role in oscillating and separating.

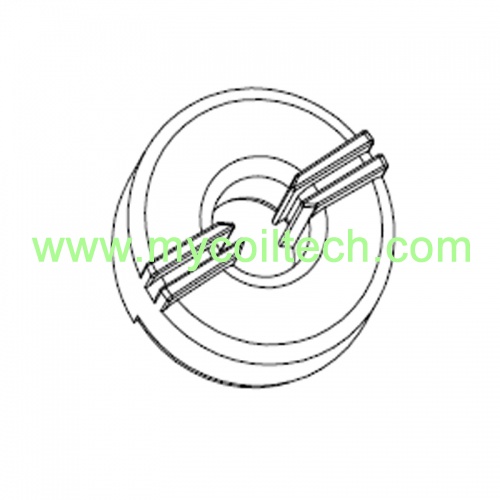

Choke coil inductor base. We supply matched toroidal cores and final inductors. PBT material base for power inductor. Samples are available. Black plastic inductor base. UL REC:94V-0.
