DC EMI filter mainly used in electric power supply, data system, testing equipment, digital system and other consumer electronics. Always designed for DC power line.
brand:
MCTitem no.:
MCT7DC-6shipping port:
ShanghaiOur EMI power DC filters are available for electronic equipments, measuring instruments (DC side), such as switching power supply, private branch exchange(PBX), data communication, sports equipment, other consumer electronics products. Hefei Mycoil Technology Co.,LTD is professional manufacture in designing, producing electronic transformers, choke coils, full range of SMD power inductors, EMI filters. We are ISO9001:2008 certification factory, we have a research team consists of five engineers, we can design filter products to meet customer's requirement and provide custom made service. We also have quality control department, we use environmental protected materials and high quality components to ensure DC EMI noise filters more safety and reliability.
Quick Details
Part No: MCT7DC-6 |
|
Brand name: MCT |
Rated Voltage: 80VDC/250VDC |
|
Custom made: Available |
Rated Current: 50A~140A |
|
Logo: Can be customized |
Temperature range: HPF 25/085/21 |
|
Packing: Carton,can custom |
Operating Frequency: DC |
|
Certification: ISO9001,ROHS,CE |
Test Voltage(1min): Line to Ground: 350VDC |
|
OEM: Available |
Test Voltage(1min): Line to Line: 500VDC |
|
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: 80A 100A Specialized For Household Appliance DC EMI Noise Filter
DC EMI Filters Features: Designed for DC power line. Excellent differential and common-mode attenuation. High performance, easy to install. Custom design acceptable.
Applications: Switching power supply, Private Branch, Exchange(PBX), Data communication, Communication system, Industrial equipment power supply, Medical equipment, Testing equipment.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Details

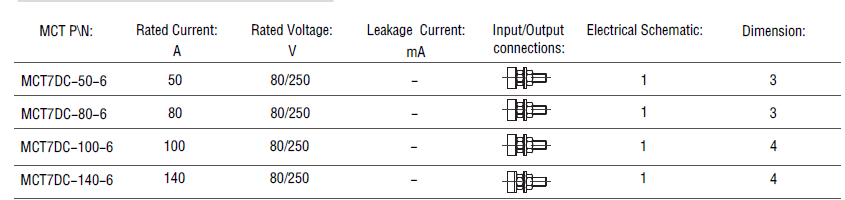

Data Table
nsion: unit :mm |
|
|
|

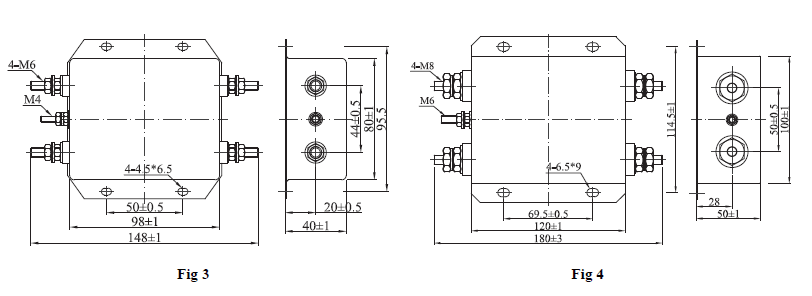

Dimension: unit :mm |

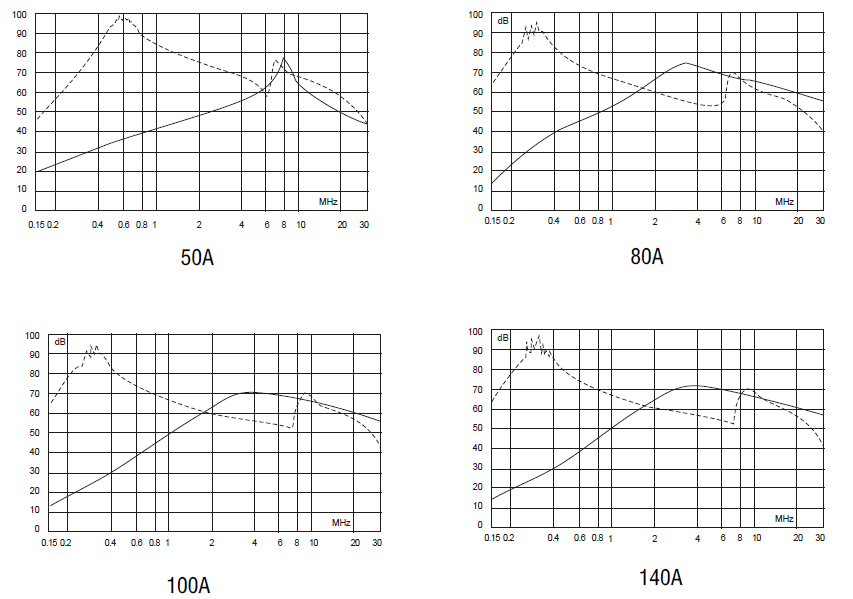

Insertion Loss in dB
