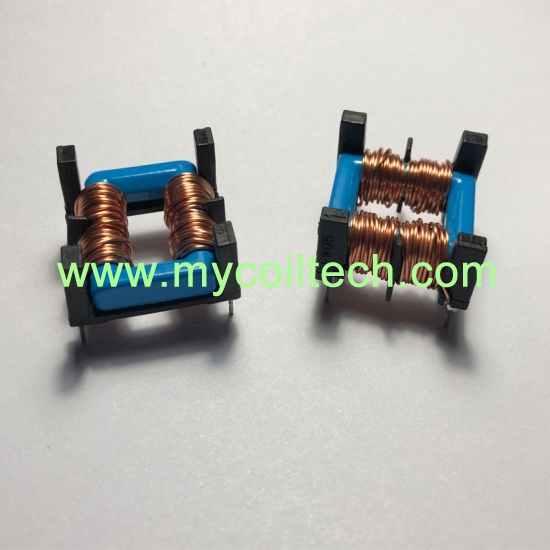

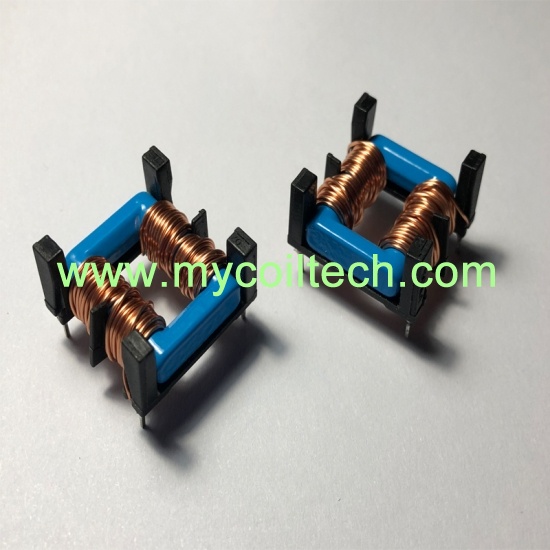

AC Power Line Common Mode Choke Filter Inductor

AC power line chokes have high inductance with low resistance. Very small stray inductance for symmetrical interference suppression. High pulse-handling capability. Very good inductance/rated current ratio. Low height (13.5 mm). Suitable for wave soldering. Our common mode choke coils mainly used in high frequency SMPS, EMI filters, AC-DC converters in distributed power systems, switching power suppliers.

  • brand:

    MCT
  • item no.:

    Power Line Chokes MCTQ19S
  • shipping port:

    Shanghai
  • payment:

    T/T in advance and PayPal
contact now
product description

Hefei Mycoil Technology Co., LTD supply all kinds common mode chokes, samples are available for testing, welcome customized inductors.



Quick Details

Part No: Power Line Chokes MCTQ19S



Brand name: MCT

Rated voltage 250 V AC



Custom made: Available

Rated current 0.45 ...1.6 A(+40 °C)



Logo: Can be customized

Rated inductance 10 ... 100 mH



Packing: Carton, can custom

Hi-pot Test voltage Vtest:2000 V AC, 2 s (line/line)



MOQ: Any quantity

PHENOLIC coil former (UL94 V-0)



OEM: Available

Sector winding



Shipping: Air, Ship, etc

Lead time: 25 days after payment



Certification: ISO9001,ROHS,CE



Part Information

Product Name: AC Power Line Common Mode Chokes Filter Inductor

Terminals: Base material CP wire. Hot dipped. Pins 0.7×0.7 mm. Lead spacing 10×19 mm

Product Construction: Current-compensated frame core double choke. Closed magnetic circuit with frame construction made of ferrite. 4-section winding with direct winding on the core. Clearance and creepage distances >3 mm


Product Specification

1.Dimensional drawing and layout recommendation

 Common mode choke for EMI Filter

2.Technical data and measuring conditions

Rated voltage VR:250 V AC (50/60 Hz)

Hi-pot Test voltage Vtest:2000 V AC, 2 s (line/line)

Rated temperature TR:+40 C

Rated current IR:Referred to 50 Hz and rated temperature,see the data table

Rated inductance LR:Measured with LCZ1062 at 10 kHz/0.1 mA, +20°C.Inductance is specified per winding.

Inductance tolerance:

Solderability (lead-free):Sn96.5Ag3.0Cu0.5: +(245±5)°C, (3±0.3) s

Wetting of soldering area≥95%

Resistance to soldering heat(wave soldering):+(260±5) °C, (10±1) s


3.Characteristics table

MCT PN

IR:A

LR:mH

Lstray typuH

DCR:mΩ

MCTQ19S102M

0.45

100.0

1937

2931

MCTQ19S682M

0.60

68.0

1346

1974

MCTQ19S472M

0.70

47.0

924

1261

MCTQ19S392M

0.80

39.0

761

1100

MCTQ19S272M

0.90

27.0

520

771

MCTQ19S152M

1.30

15.0

291

432

MCTQ19S101M

1.60

10.0

204

291

The core M10 with AL=4500±30% and M12 with AL=5400±30% can be selected.

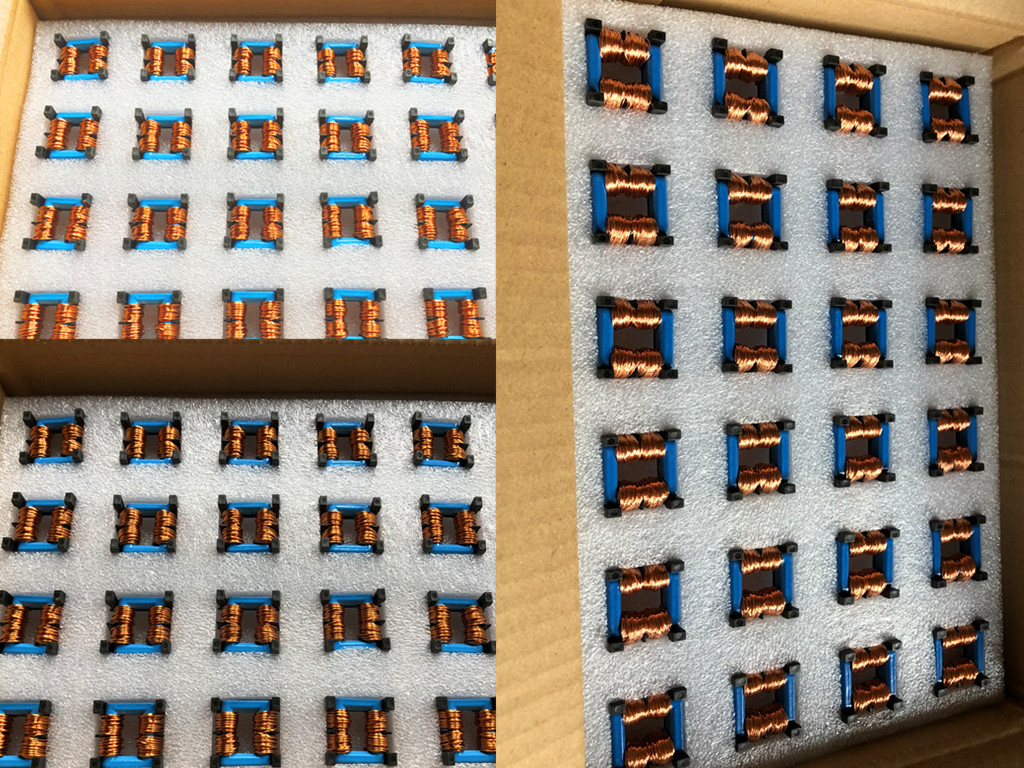

Packing Details and Delivery
1. Neutral Packing:  PP packing belt + Outer packing hard paper carton + inner packing pearl cotton
2.As customer requirement: Customized CTN, Polystyrene tray,etc.
3. The delivery time is 25-30 working days after the payment.

SQ CMC choke coils


For more details, welcome to contact us:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

QQ:     2783136957

Contact: Miss Lily
