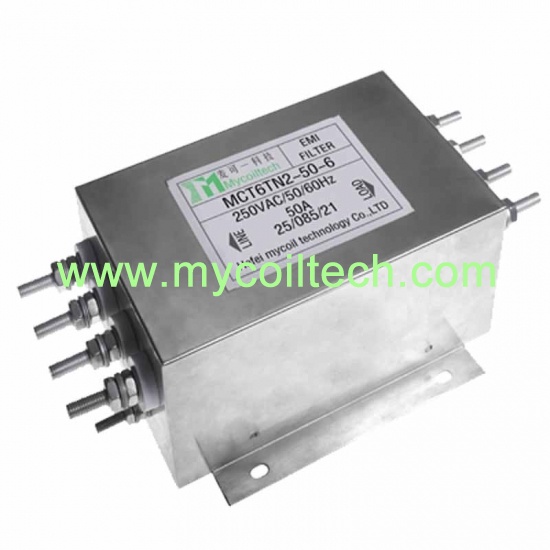

30A/50A/300A 440VAC three phase four line filter. High quality components ensure the safety and reliability of filter. Chassis mounting with various connection: fast on/screw/wire terminal. Test voltage(1min): Line to ground:2700VAC. Line to Line:1450VDC. Line to Neutral:1450VDC. Excellent interference suppression performance for CM and DM.
brand:
MCTitem no.:
MCT6TN2 Three Phase Neutral Line Filtersshipping port:
ShanghaiPopular three phase four line EMI noise filter, drive/UPS EMI EMC filters. Factory price and fast delivery time, we can provide samples in 5 days, custom design also available, if you are interested in our filter products, welcome to contact us, we are glad to service for you.
Quick Details
Part No: MCT6TN2 Three Phase Neutral Line Filters |
Brand name: MCT |
Rated Voltage: 250/440VAC |
Custom made: Available |
Rated Current: 6A~600A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: AC Three Phase Four Line EMI RFI Noise Filters
Applications: General purpose four wire filtering. High power office equipment. Electrical equipment. Inverters and converters. Industrial applications. Various noisy applications requiring good filter performance. UPS and SMPS.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
250/440VAC EMI power line three phase filter. High quality components ensure the safety and reliability of filter. Chassis mounting with various connection: fast on/screw/wire terminal. Test voltage(1min): Line to ground:2700VAC. Line to Line:1450VDC. Line to Neutral:1450VDC. Excellent interference suppression performance for CM and DM.
