IEC EMI filters with switch, it has compact unit, light weight, low price. Rear/front or snap-in mounting.(S and S1 type). Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1. Test Voltage ( 1min ): Line to Ground: 2000AC. Line to Line:1450VAC.
brand:
MCTitem no.:
Filter With Switchshipping port:
ShanghaiThe MCTAIE7 power entry module combines an IEC inlet, mains filter with excellent filter attenuation and a mains switch in a small form factor. It has high saturation resistance and excellent thermal behavior. Welcome customized products.
Quick Details
Part No: Filter With Switch |
Brand name: MCT |
Rated Voltage: 120/250VAC |
Custom made: Available |
Rated Current: 1A~10A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF 25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: AIE7 Power Entry Module IEC Filter with Switch
Applications: Single phase power supplies, switch-mode power supplies. Small to medium-sized machines and household equipment. Portable electrical and electronic equipment. Test and measurement equipment. Medical equipment.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu

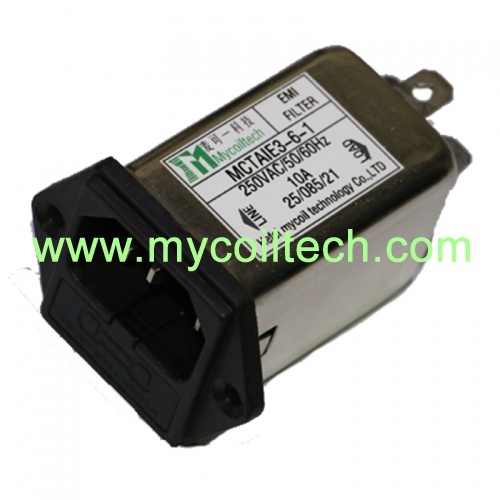

IEC noise EMI filters manufacture. Single phase EMI filter for converter, with compact unit, light weight, low price, easy to install. Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1. Test Voltage ( 1min ): Line to Ground: 2000AC. Line to Line:1450VAC.

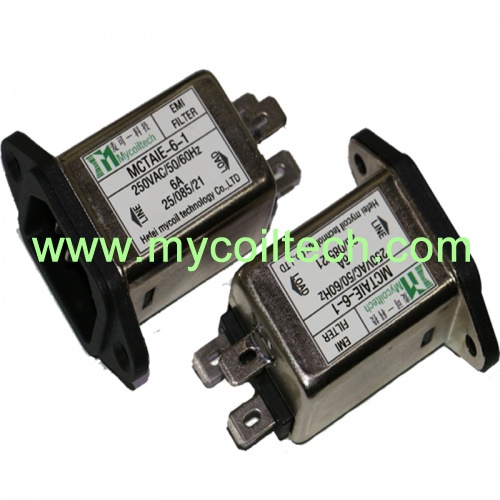

IEC EMI filters rated currents up to 10A. Rear/front or snap-in mounting. Custom-specific versions are available on request. Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1. Test Voltage ( 1min ): Line to Ground: 2000AC. Line to Line:1450VAC.
