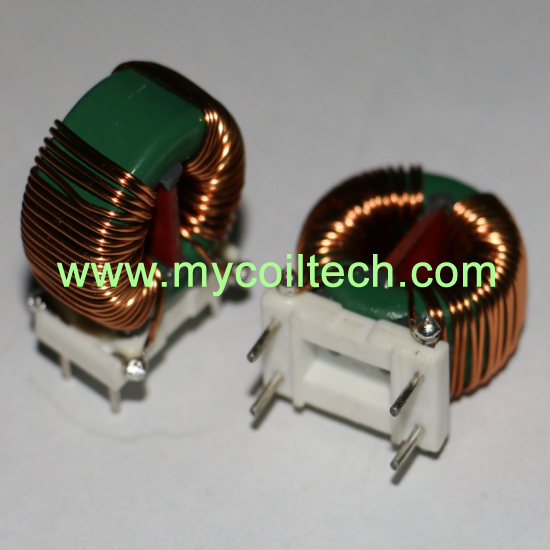

B22V Common Mode Choke Inductors with Phenolic Base

Common mode choke with base mainly for power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer.
  • brand:

    MCT
  • item no.:

    MCT B22V with Base Series Common Mode Choke
  • shipping port:

    Shanghai
contact now
product description

We are ISO9001:2008 certification factory, which located in Anhui province(near to Shanghai). We have a research team consists of five engineers, engineering and technical personnel can quickly respond to make common mode choke samples, to ensure that customers can complete the sample machine test at the first time and provide strong technical and service support. Common mode chokes with base mainly used in electronic devices EMI radiated noise suppression, power supply, high frequency inductors, power transformers, etc.


Quick Details

Part Number: MCT B22V with Base Series Common Mode Choke



Brand name: MCT

Type: Choke Inductor



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: B22V Common Mode Choke Inductors with Phenolic Base

Applications:  Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

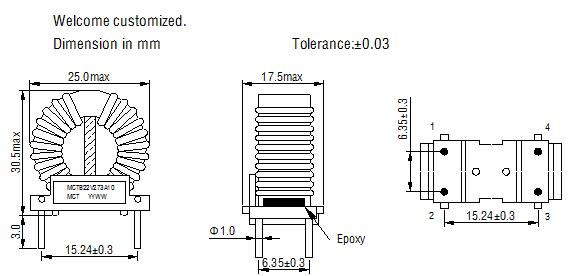

Product Specification

Customized High Quality Common Mode Choke with Base from Mycoil


Typical electrical parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCTB22V273A10

27.0

0.50

1.0

MCTB22V223A13

22.0

0.35

1.3

MCTB22V103A20

10.0

0.15

2.0

MCTB22V682A30

6.8

0.10

3.0

MCTB22V272A40

2.7

0.05

4.0

MCTB22V152A70

1.5

0.023

7.0

MCTB22V102AA0

1.0

0.012

10.0

MCTB22V681AB0

0.68

0.085

12.0


We can decign it.If you have any requests, please contact us, we will give you fast reply
