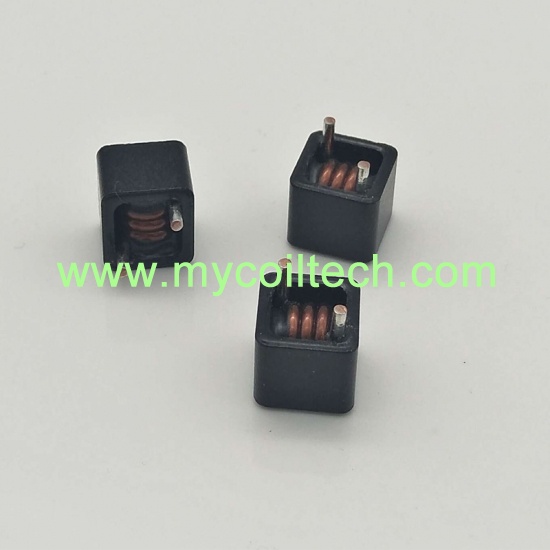

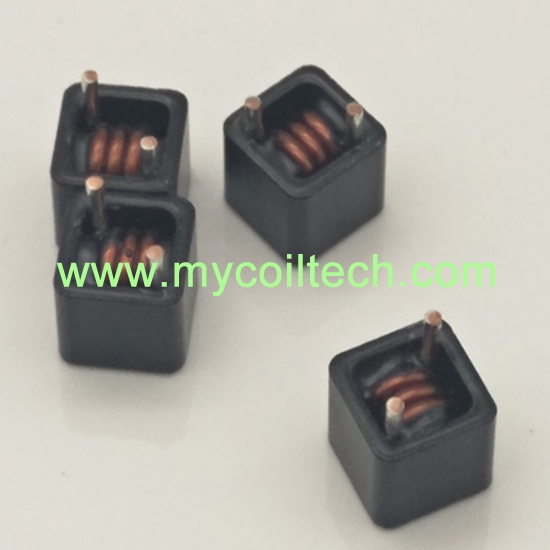

DIP large current inductor has low resitance and high frequency. mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems.
brand:
MCTitem no.:
MCTLD Series High Current DIP Type Inductorshipping port:
ShanghaiDIP type high current inductors mainly used in high frequency SMP, EMI filters, switching power suppliers, DC-DC converters in distributed power systems, high frequency SMPS, inductor for general purpose use, etc.
Hefei Mycoil Technology Co., LTD is professional large current inductors manufacturer, we produce design and sell PQ series current inductors, RM series current inductors, DIP type current inductors, SMD type current inductors and other type large current inductors. All large current inductors are RoHS Certification products, we accept custom design and OEM services. We have our own quality control department, strict quality control links, all products we shipped were double tested, so we can offer customer high quality large current inductors.
Quick Details
|
Part No: MCTLD Series High Current DIP Type Inductor |
|
Brand name: MCT |
|
Inductance at IDC is a typical value for the component taken at IDC |
|
Custom made: Available |
|
L0 test condition: 100KHz/1.0Vrms, 0ADC |
|
Logo: Can be customized |
|
Testing ambient temperature is referenced to 25°C |
|
Packing: Carton,can custom |
|
Operating temperature range: -40°C~+120°C |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information
Product Name: Large Current DIP Inductor low Resistance and High Frequency
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Home appliance, Automotive electronics.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging,protect DIP type high current inductor performance. )
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification

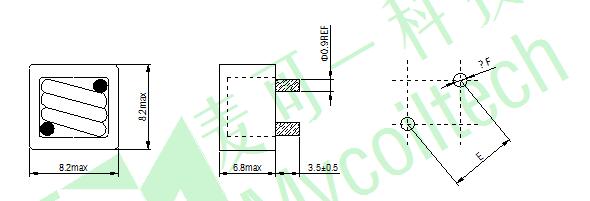

Mechanical dimension: Unit: mm
Electrical Characteristics:
|
MCT PN |
L(0A) uH±20% |
DCR（mΩ） max |
L（rms） uH±20% |
Irms A |
Isat A |
E |
F |
|
MCTLDR47M |
0.47 |
3.5 |
0.42 |
21 |
35 |
5.5±1 |
0.90 |
|
MCTLDR60M |
0.60 |
3.5 |
0.54 |
20 |
30 |
5.5±1 |
0.90 |
|
MCTLDR80M |
0.80 |
4.0 |
0.70 |
18 |
24 |
6.5±1 |
0.80 |
|
MCTLD1R0M |
1.00 |
6.0 |
0.90 |
16 |
22 |
6.5±1 |
0.70 |
Note:
1.L0 test condition:100KHz/1.0Vrms，0ADC
2.Inductance at IDC is a typical value for the component taken at IDC
3.Heating current will cause an approximate ΔT of 40°C without core loss
4.Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature
5.Testing ambient temperature is referenced to 25°C
6.Operating temperature range -40°C~+120°C
