brand:
MCTitem no.:
EDR Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: EDR Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/MP4/MP44/MP95 |
Logo: Can be customized |
|
Type: Power core Phase: single |
OEM: Available |
|
Features: High inductance, low loss |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information

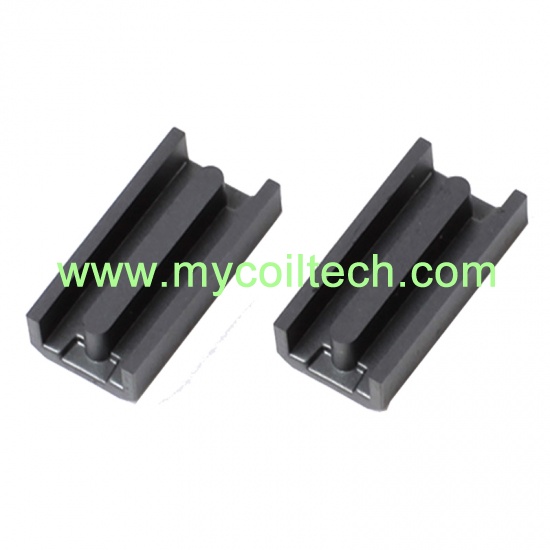

Product Name: EDR Series High Frequency Soft Ferrite Core Used for Switching Power Output Transformer
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: Switching Power Output Transformer. Choke coil for high frequency SMPS. EMI/RFI filters. DC/DC converters. IP and OP devices
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
|

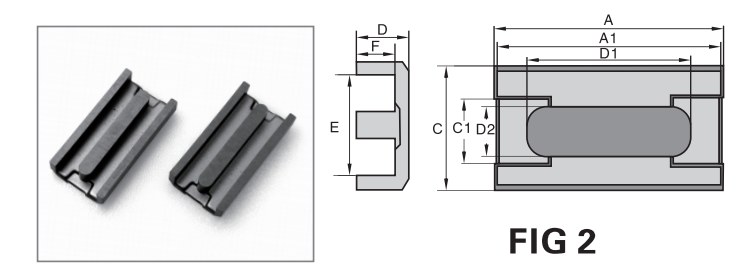

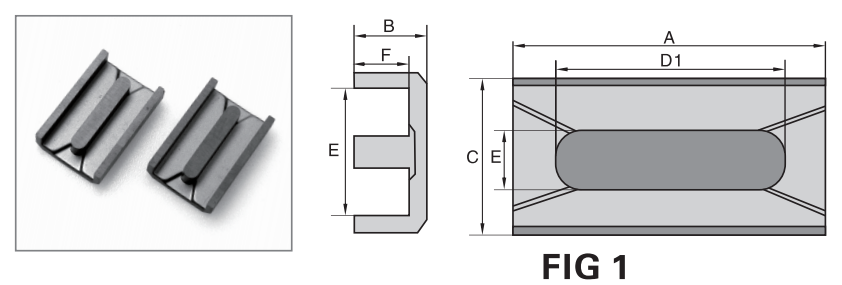

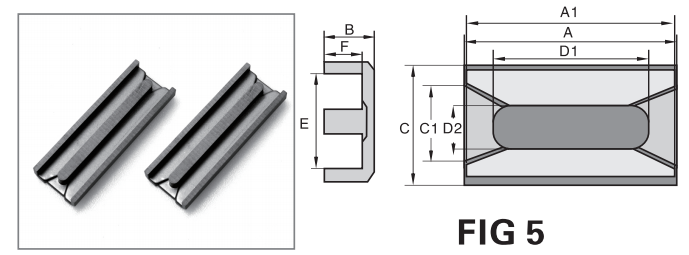

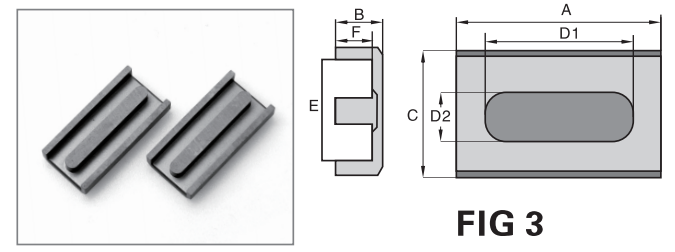

Dimension |
Fig |
A |
B |
C |
D1 |
D2 |
E |
F |
|
Type &Size |
（mm） |
（mm） |
（mm） |
（mm） |
（mm） |
（mm） |
（mm） |
|
|
MCT PN |
|
|
|
|
|
|
|
|
|
EDR20 |
1 |
20.2±0.5 |
4.6±0.2 |
13.5±0.5 |
15.75±0.3 |
2.7±0.15 |
10.4min |
2.9±0.2 |
|
EDR25 |
2 |
25.4±0.5 |
4.85±0.25 |
12.8±0.5 |
21.6±0.4 |
2.8±0.3 |
8.5min |
3.4±0.25 |
|
EDR26 |
1 |
26.0±0.5 |
4.5±0.3 |
13.6±0.3 |
21.7±0.5 |
2.7±0.3 |
10.3 min |
2.8±0.3 |
|
EDR28 |
3 |
28.0±0.5 |
4.6±0.3 |
13.5±0.5 |
25.2±0.5 |
3.2±0.3 |
9.5 min |
3.0±0.3 |
|
EDR30 |
4 |
30.0±0.5 |
4.60±0.20 |
14.70±0.40 |
25.8±0.3 |
2.75±0.20 |
11.4min |
2.75±0.20 |
|
EDR32 |
4 |
32.0±0.5 |
4.10±0.20 |
11.70±0.40 |
27.8±0.2 |
2.20±0.20 |
8.7min |
2.65±0.20 |
|
EDR39 |
5 |
39.40±0.5 |
4.50±0.2 |
13.5±0.5 |
35.00±0.2 |
2.70±0.2 |
10.40 min |
2.80±0.2 |
|
EDR40 |
5 |
40.0±0.7 |
4.75±0.25 |
13.7±0.6 |
39.8±0.6 |
2.95±0.2 |
10.8min |
3.45±0.3 |
|
EDR41 |
1 |
41.0±0.7 |
4.4±0.2 |
12.8±0.3 |
34.8±0.5 |
2.7±0.2 |
9.5min |
3.2±0.3 |
|
TYPE |
Effective parameters |
Weight(g/prs) |
AL（nH/N2）±25%，1KHZ,0.25V,100TS |
|||||||||
|
MCT PN |
C1(mm-1) |
Ae(mm2) |
Le(mm) |
Ve(mm3) |
(g/set) |
MP4 |
MP44 |
MP47 |
M5P |
MP90 |
MP95 |
MP96 |
|
EDR20 |
0.37 |
56.30 |
20.60 |
1159.78 |
6.25 |
2790 |
2911 |
3033 |
1698 |
2669 |
4003 |
4003 |
|
EDR25 |
0.31 |
78.30 |
24.40 |
1910.52 |
9.6 |
3490 |
3642 |
3793 |
2124 |
3338 |
5007 |
5007 |
|
EDR26 |
0.33 |
71 |
23.62 |
1677.02 |
9.2 |
3480 |
3631 |
3783 |
2118 |
3329 |
4993 |
4993 |
|
EDR28 |
0.33 |
77.08 |
25.68 |
1979.41 |
10.35 |
3620 |
3777 |
3935 |
2203 |
3463 |
5194 |
5194 |
|
EDR30 |
0.24 |
104.35 |
24.88 |
2596.23 |
12.45 |
4800 |
5009 |
5217 |
2922 |
4591 |
6887 |
6887 |
|
EDR32 |
0.27 |
82.7 |
22.4 |
1852.48 |
11.6 |
4400 |
4591 |
4783 |
2678 |
4209 |
6313 |
6313 |
|
EDR39 |
0.19 |
128.20 |
23.74 |
3043.47 |
13.3 |
5230 |
5457 |
5685 |
3183 |
5003 |
7504 |
7504 |
|
EDR40 |
0.24 |
108.96 |
26.05 |
2838.41 |
14.2 |
4800 |
5009 |
5217 |
2922 |
4591 |
6887 |
6887 |
|
EDR41 |
0.19 |
118.85 |
22.83 |
2713.35 |
13.6 |
5300 |
5530 |
5761 |
3226 |
5070 |
7604 |
7604 |
