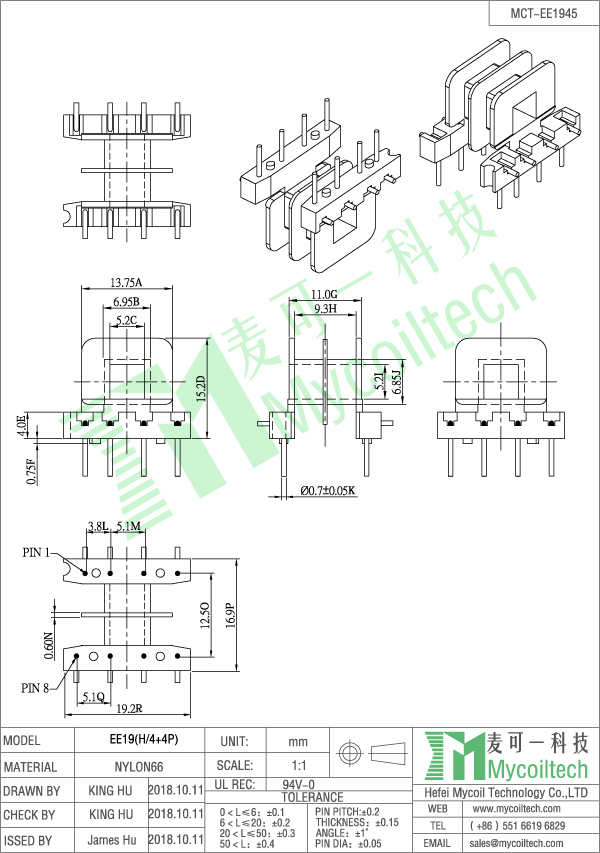

EE19 horizontal coil bobbin. Double slots 5+5 pins transformer bobbin. Bobbin Size=19.0mmX16.7mmX15.2mm. Parallel distance=12.5mm. Pin Pitch1=3.8mm. Pin Pitch2=5.1mm. We can make bobbin tooling for customer.
brand:
MCTitem no.:
MCT-EE1945(H/4+4P)shipping port:
Shanghaipayment:
T/T in advanceHot selling EE19 5+5 pin horizontal bobbin, factory price and high quality, we can provide samples to test.
Quick Details
|
Part Number: MCT-EE1945 |
Brand Name: MCT |
|
Material: NYLON |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE19 Electronic Bobbin For PCB Mounting Transformer
Product Range: Transformers, coils, bobbins, magnetic cores.
Applications: switching power supply transformers, inductors, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Specification
Any questions, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
