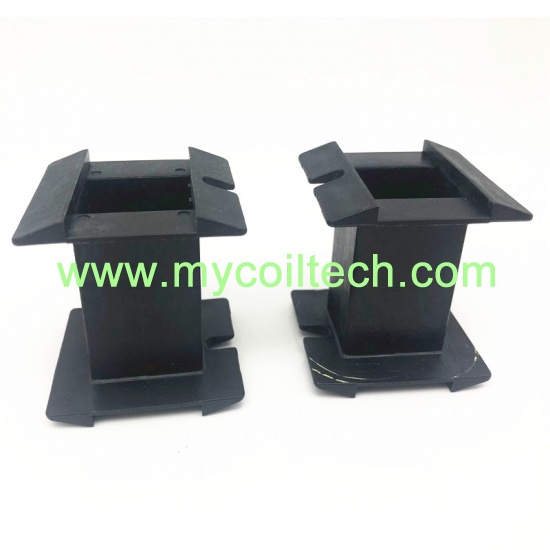

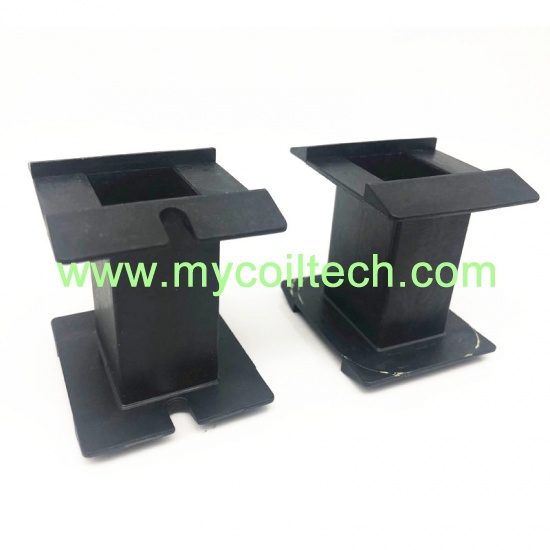

EE65 power transformer for DC converter. No pin large bobbin EE65. Bobbin Size=51.7mmX43.7mmX49.5mm. We can make bobbin tooling. PA66 material EE65 transformer bobbin.
brand:
MCTitem no.:
MCT-EE6501shipping port:
Shanghaipayment:
T/T in advanceprice range:
3000-5000/0.078$Hot selling EE65 high frequency transformer bobbin, high quality and good appearance, samples available.
Quick Details
|
Part Number: MCT-EE6501 |
Brand Name: MCT |
|
Material: PA66 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE65 Ferrite Core Transformer Bobbin No Pin
Product Range: Transformers, filters, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, choke inductors, high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Welcome for inquiry, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
