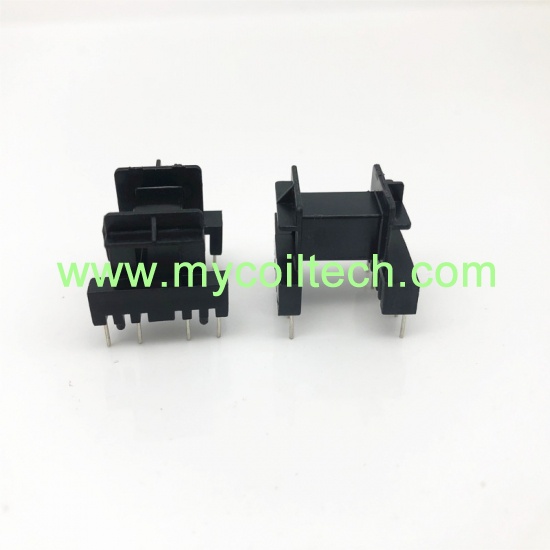

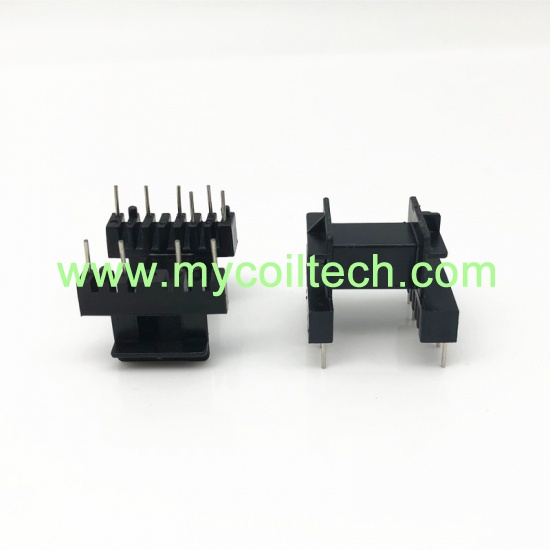

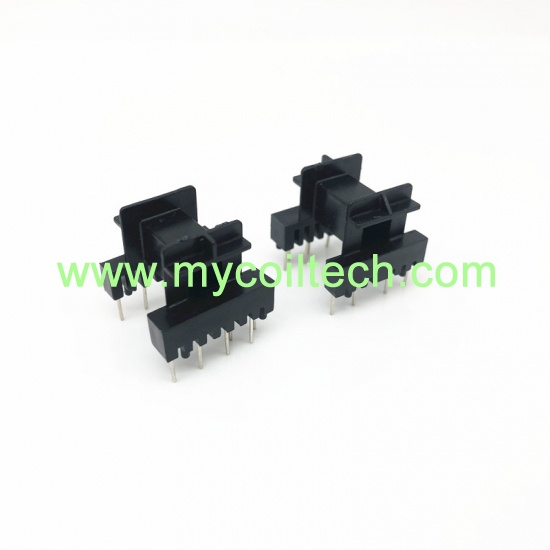

EF20 driver transformer. Horizontal/vertical shape EF20 coil former. 4+4+4 pin EF20 transformer frame. Bobbin Size=21.0mmX20.0mmX15.1mm. Pin pitch=2.5mm. Row distance=15.0mm. Our transformer widely used in light system, industrial power supplies, and audio-visual equipment.
product origin:
Chinabrand:
MCTitem no.:
MCT-EF2021-2shipping port:
Shanghaipayment:
T/T in advanceEF20 switching power transformer, we produce various bobbins and supply matched magnetic cores, samples can be sent for testing.
Quick Details
|
Part No: MCT-EF2021-2 |
Brand Name: MCT |
|
Material: FR530 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EF20 High Frequency Transformer for PCB Board
Main Parts: Transformers, Inductors, coils, bobbins, ferrite cores.
Lead Time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: We use TNT/UPS/DHL/FedEx, etc air shipping ways. Also by ship, and other ways.

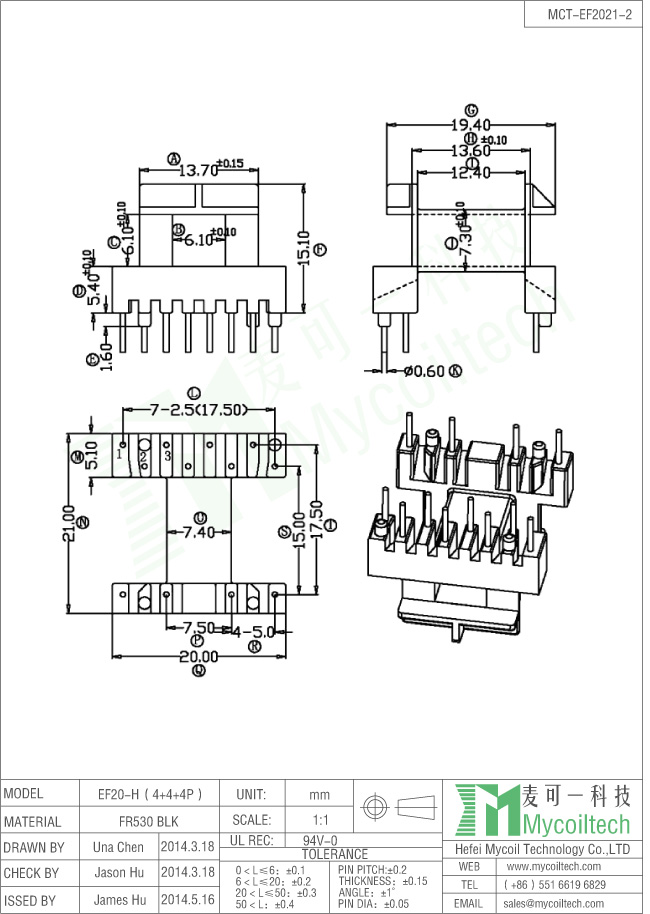

Product Specification
Welcome to contact us, we will give you fast reply.
