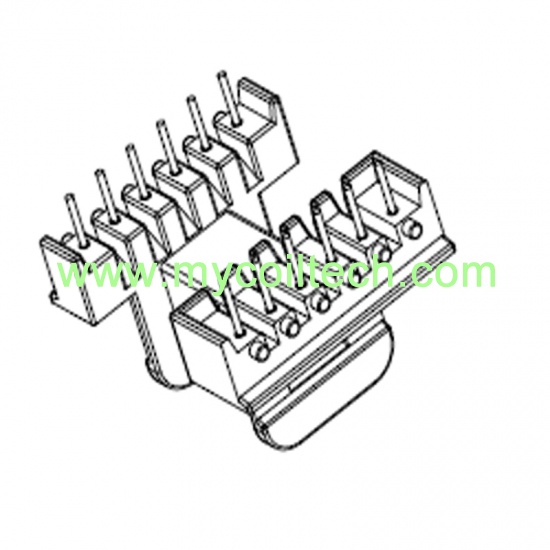

EF25 horizontal coil former factory. Pin 6+6. Bobbin Size=28.5mmX25.0mmX19.0mm. Parallel Distance=22.5mm. Pin pitch=3.8mm. Phenolic material transformer bobbin. DIP transformer bobbin.
brand:
MCTitem no.:
MCT-EF2548shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.07$We are the China professional electronic components factory, we produce and sale all kinds transformers and inductors, such as flyback transformers, lan transformers, audio frequency transformers, encapsulated transformers, current transformers, common mode chokes, filter inductor, toroidal inductor, etc. All parts accept custom design.
Quick Details
|
Part No: MCT-EF2548 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black,Red |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EF25 8 Pins Switching Mode Transformer Bobbin Horizontal
Standard parts: Transformers, Inductor, Coils,current transformers, magnetic cores.
Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.
Product Specification
If you have any questions, please be free to contact us, we will do our best to solve for you.
