ShanghaiHefei Mycoil Technology Co.,LTD is professional electronic encapsulated transformers manufacturer, we have a research team consists of five engineers, engineering and technical personnel can quickly respond to make encapsulated transformers drawings and samples, to ensure that customers can complete the sample machine test at the first time. We accept custom design.
Quick Details
|
Part No: EI38 2.5VA-9VA |
Brand name: MCT |
|
Primary voltages from 12 V to 250 V |
Custom made: Available |
|
Output Power up to 9VA |
Logo: Can be customized |
|
Temperature class ta 70 °C/B |
Packing: Carton, can custom |
|
Bobbin type: Dual chamber windings |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
|
Lead time: 25 days after payment |
Shipping: Air, Ship, etc |
Part Information
Product Name: EI Series Encapsulated Electronic Transformer for PCB Mounting
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Product Part Number
|
Frame size/Core height |
Output Power Ta 70°C/B |
Height(h) |
Weight |
Packaging unit |
|
MCT EI 381/7.5 mm |
2.5V/A |
22.1mm |
0.100kg |
40 pieces |
|

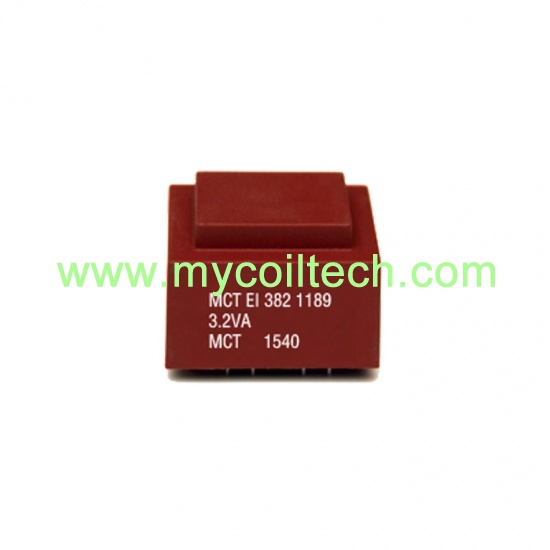

MCT EI 382/13.6mm |
4.5 V/A |
28.1mm |
0.150kg |
40 pieces |
|
MCT EI 383/16.5mm |
6.0 V/A |
30.8mm |
0.190kg |
60 pieces |
|
MCT EI 384/28.0mm |
9.0V/A |
42.8mm |
0.280kg |
- |
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
Flat Type Printed Circuit Board EI34 Encapsulated Transformers with Small Base
EI34 encapsulated electronic transformer output power range from 1.6VA to 8.0VA. Inherently short-circuit proof, no load power loss. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.

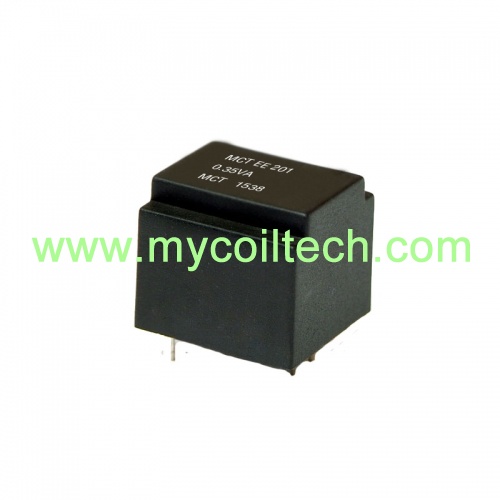

Printed Circuit Board Encapsulated Transformer Output Power 0.35VA
Encapsulated transformer output power range from 0.35VA to 0.5VA. Primary voltages from 12 V to 250 V. Secondary voltages from 4 V to 24 V or 2 x 3 V to 2 x 12 V. Further voltages on demand.Vacuum-encapsulated. Inherently short-circuit-proof.

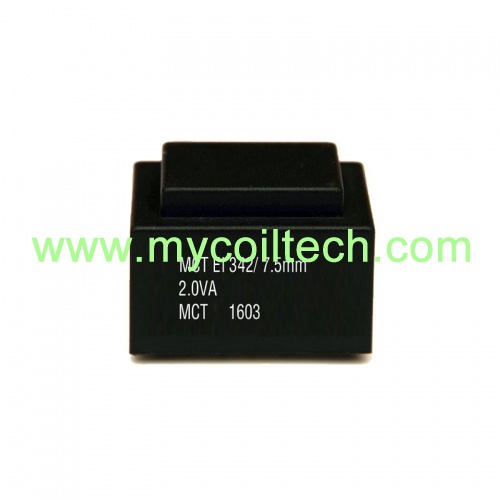

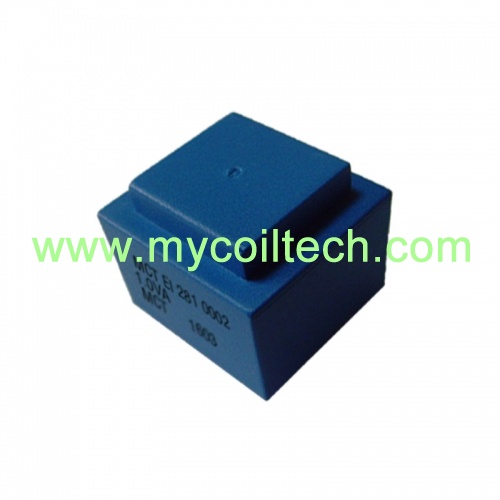

EI28 Encapsulated Electronic Transformer with 2.0VA Output Power
EI series encapsulated transformer output power range from 1.0VA to 2.0VA. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.

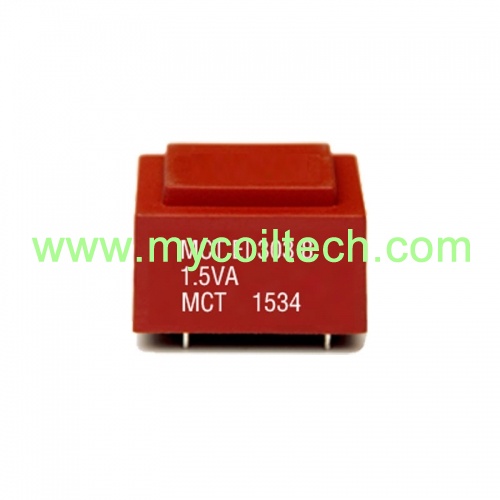

1.5VA Output Power PCB Mount Encapsulated Transformer
