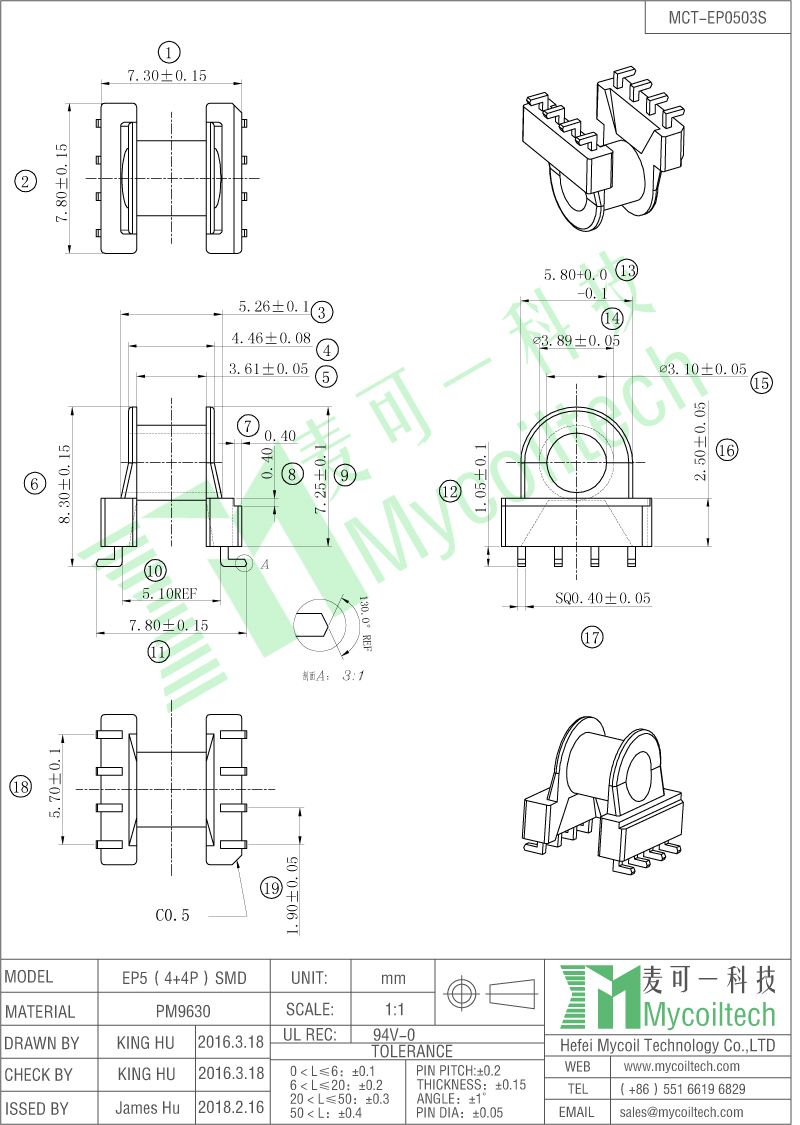

PCB mounting SMD transformer. EP5 type small coil bobbin. Bobbin Size=7.8mmX7.8mmX7.25mm. Parallel Distance=7.3mm. Pin pitch=1.9mm. PM9630 material transformer bobbin. Design customer requirement transformer.
brand:
MCTitem no.:
MCT-EP0503Sshipping port:
Shanghai Portpayment:
T/T in advanceprice range:
1000-5000/0.055$Audio isolation transformer from Hefei Mycoil Technology.,LTD. Single phase and high frequency, mainly for electronic transformers, magnetic cores, coil products. OEM service and custom design also available.
Quick Details
|
Part No: MCT-EP5(4+4P)SMD |
Brand Name: MCT |
|
Material: PM9630 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EP5 High Power Electronic Transformer SMD Bobbin
Applications: switching power supply transformers, sense inductors, coils, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air(TNT/UPS/DHL/FedEx), By ship, etc.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
Product Specification
EP13 Transformer Bobbin Horizontal Bobbin 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.9mmX13.3mmX11.5mm
4+8 Pins EP13 Transformer Bobbin For High Frequency Transformer
4+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=13.2mm Size=15.2mmX13.6mmX10.2mm
3+3 Pins EP7-01 Dip Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.35mm Size=9.4mmX7.4mmX8mm
Dip EP7 Phenolic Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=5.5mm Size=9.4mmX7.5mmX8.3mm
3+3 Pins EP7 Transformer Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.3mm Size=9.2mmX7.6mmX8.6mm
Dip EP7-04 Horizontal Transformer bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.3mm Size=9.2mmX7.6mmX8.6mm
Dip EP7 Phenolic Bobbin For High Frequency Transformer
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.54mm Parallel Distance=5.08mm Size=9.3mmX7.4mmX8.4mm
3+3 Pins EP7 Double Slots Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=5.08mm Size=9.03mmX7.4mmX8.4mm
3+3 Pins EP7 Horizontal Bobbin For Tranformer
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=5.08mm Size=9.3mmX7.4mmX8.4mm
3+3 Pins EP7-08 Double Slots Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.54mm Parallel Distance=9.6mm
3+3 Pins EP7-09 Phenolic Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=5.08mm Size=9.3mmX7.4mmX8.4mm
3+3 Pins EP7 Double Slots Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=5.08mm Size=9.3mmX7.4mmX8.4mm
