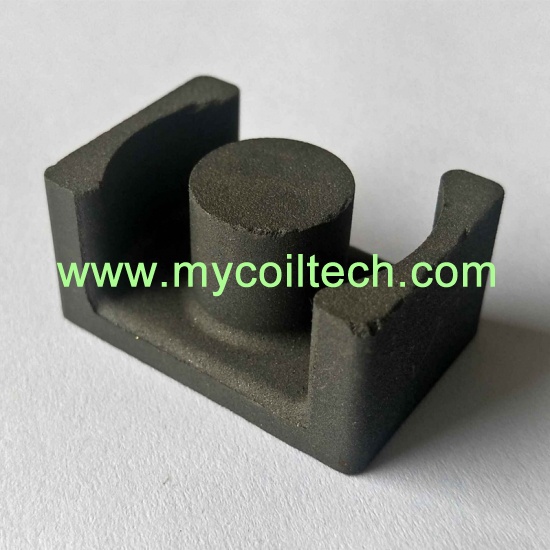

EQ Sendust Core For Power Factor Correction Circuits

Sendust core for EMI filter. EQ series sendust corefor transformer has large energy storage capacity and excellent DC bias characteristics. Material properties: MS for Fe-Si-Al, MSF for Fe-Si. We can provide samples for testing first.
  • brand:

    MCT
  • item no.:

    Sendust Core with EQ Type Cores
  • shipping port:

    Shanghai
contact now download
product description

We are the one of the most professional transformer and inductor manufacturer in China. Our factory is made up of 500 people, huge output can be finished every day. Welcome to visit our factory. We produce various coil bobbins and matched magnetic cores. We have a technical team consist of 5 experienced engineers, we can design to meet customer's requirements.


Quick Details

Part Number: EQ Type Sendust Cores

Brand Name: MCT

Material: MS for Fe-Si-Al, MSF for Fe-Si

Logo: Can be customized

Type: Sendust core

OEM: Available

Features: Large energy storage capacity

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: EQ Sendust Core For Power Factor Correction Circuits

Applications: AC Reactor for inverter. Power inductor for large current. Buck/Boost inductor for inverter.

Cores Feature: Large energy storage capacity, Excellent DC bias characteristic

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

EQ Series Sendust Core

Sendust core fro inductor

MCT PN

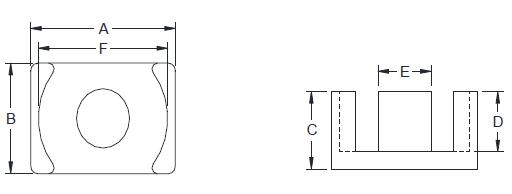

Dimensions(mm)

Le

cm

Ae

Cm²

AL(nH±12%)

CSC PN

A

B

C

D

E

F

Ui=26

Ui=40

Ui=60

MS-EQ2014A

20.5

14.0

8.1

5.7

8.8

18.0

4.52

0.608

44

68

101

SEQ2014A

MSF-EQ2014A

20.5

14.0

8.1

5.7

8.8

18.0

4.52

0.608

44

68

101

KEQ2014A

MS-EQ2014B

20.5

14.0

8.1

5.7

8.8

18.0

5.32

0.608

37

57

86

SEQ2014B

MSF-EQ2014B

20.5

14.0

8.1

5.7

8.8

18.0

5.32

0.608

37

57

86

KEQ2014B

MS-EQ2619A

26.5

19.0

10.1

6.8

12.0

22.6

5.47

1.198

72

110

165

SEQQ2619A

MSF-EQ2619A

26.5

19.0

10.1

6.8

12.0

22.6

5.47

1.198

72

110

165

KEQQ2619A

MS-EQ2619B

26.5

19.0

12.4

9.1

12.0

22.6

6.39

1.198

61

94

141

SEQQ2619B

MSF-EQ2619B

26.5

19.0

12.4

9.1

12.0

22.6

6.39

1.198

61

94

141

KEQQ2619B

MS-EQ3222A

32.0

22.0

10.3

6.6

13.5

27.6

6.03

1.523

83

127

190

SEQ3222A

MSF-EQ3222A

32.0

22.0

10.3

6.6

13.5

27.6

6.03

1.523

83

127

190

KEQ3222A

MS-EQ3222B

32.0

22.0

15.2

11.5

13.5

27.6

7.99

1.523

62

96

144

SEQ3222B

MSF-EQ3222B

32.0

22.0

15.2

11.5

13.5

27.6

7.99

1.523

62

96

144

KEQ3222B

MS-EQ3626A

36.0

26.0

17.4

13.4

14.4

32.0

9.47

1.808

62

96

144

SEQ3626A

MSF-EQ3626A

36.0

26.0

17.4

13.4

14.4

32.0

9.47

1.808

62

96

144

KEQ3626A

MS-EQ4128A

41.5

28.0

19.9

15.4

14.9

36.5

11.52

1.997

57

87

131

SEQ4128A

MSF-EQ4128A

41.5

28.0

19.9

15.4

14.9

36.5

11.52

1.997

57

87

131

KEQ4128A

MS-EQ5032A

50.0

32.0

25.0

19.5

20.0

44.0

13.34

3.141

77

118

178

SEQ5032A

MSF-EQ5032A

50.0

32.0

25.0

19.5

20.0

44.0

13.34

3.141

77

118

178

KEQ5032A
