new products

EE65 High Power Transformer Horizontal Frame
EE65 single phase transformer. Horizontal EE65 bobbin 8+8 pins. Bobbin Size=51.5mmX43.7mmX54.8mm. Parallel Distance=44.5mm. Pin pitch=5.0mm. Good quality EE65 encapsulated transformer, singled packed with carton.
EF30 Power Transformer Vertical Bobbin 6+6 Pin
EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.
High Current DIP Type Inductor High Frequency Power Inductor
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
ETD44 High Frequency Transformer Ferrite Core 120~180W Flyback Transformer For LED Drive Power
ETD44 high frequency flyback transformer power range is 20~800W. Usage:DC converters,drive transformers,PFC inductors.Winding:Auto-transformer.

High Frequency Choke Coil Inductor With Base

Choke mode coil base. 3+3 pins common mode choke base. Base size=10.3mmX6.2mmX7.3mm. Pin pitch=3.5mm. Parallel distance=4.0mm. We manufacture electronic components for customers, special specifications available upon request.

product origin:
China
brand:
MCT
item no.:
MCT-BASE67(6P)
shipping port:
Shanghai
payment:
T/T in advance
price range:
1000-5000/0.036$

contact now

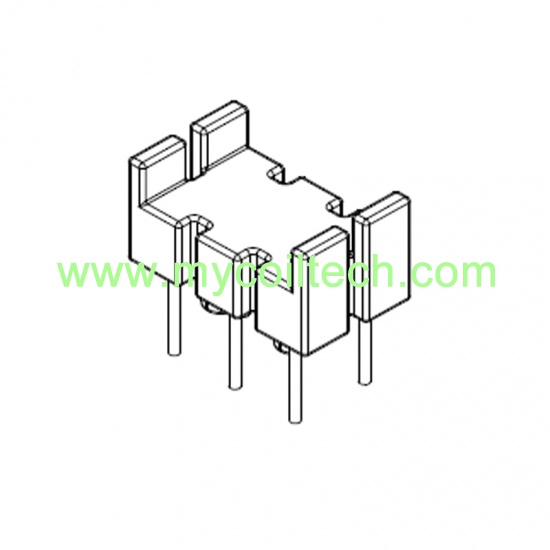

product description

Factory direct selling choke coil base, ferrite core inductor base, samples can be sent in 3-5 days.

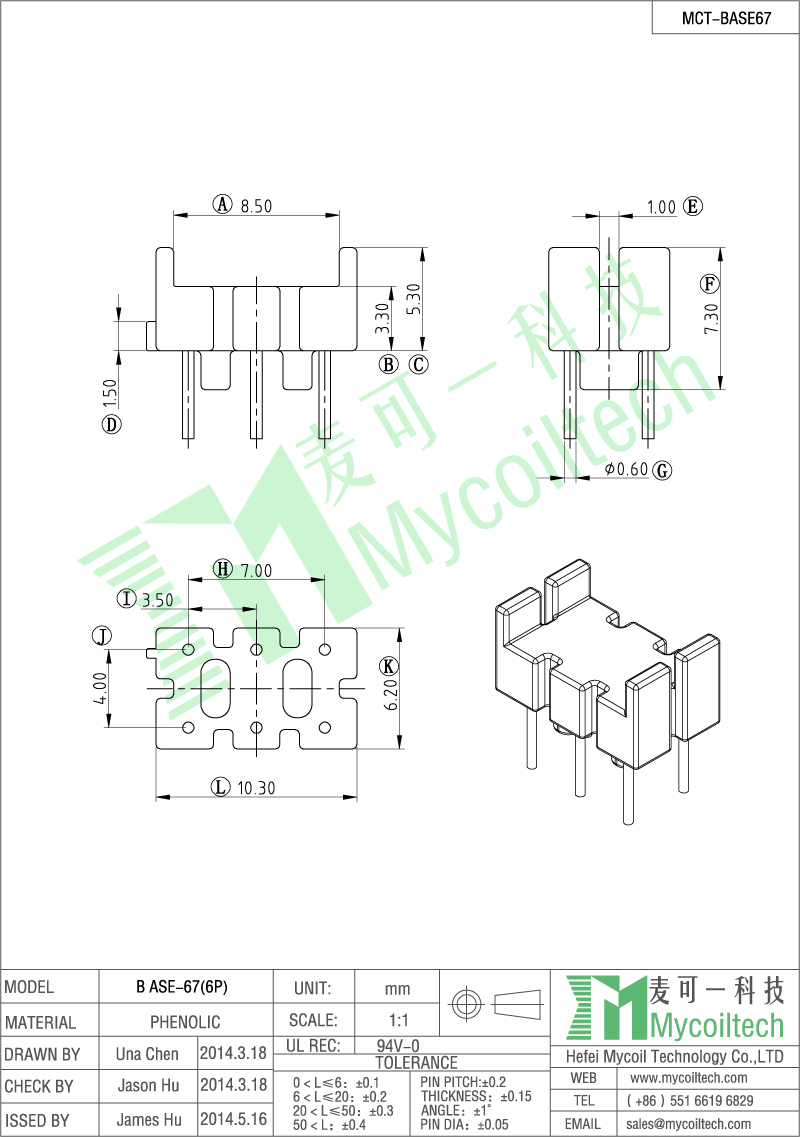

Quick Details

Part No: MCT-BASE67	Brand Name: MCT
Material: Phenolic	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
