Shanghai PortMCTL35U Series Standard Winding EMI Suppression Filters For AC Power Lines have many applications, such as switching power supplies, communications equipments, household appliances, computers switching power supply, medical equipments, electronic components, lighting equipments.
UU common mode choke mainly used for AC power suppliers, DC-DC converters and telecommunication equipment. If you are looking for ferrite common mode choke coils/filter inductor, you can find it by different electrical parameters, such as inductance, rated current and DCR. We also can design as your requirements, you just offer us your specification or drawings.
Quick Details
|
Part No: MCTL35 Series Standard Winding |
|
Brand name: MCT |
|
Rated voltage:85~265VAC,50/60Hz |
|
Custom made: Available |
|
Insulation resistance:100MΩ @500VDC |
|
Logo: Can be customized |
|
Turns ratio:1:1±2% |
|
Packing: Carton,can custom |
|
Hi-pot: 2500VAC/1mA/60Sec |
|
Certification: ISO9001,ROHS,CE |
|
Testing frequency:1KHz/0.25V |
|
OEM: Available |
|
Operating temperature:-40°C~+105°C |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information

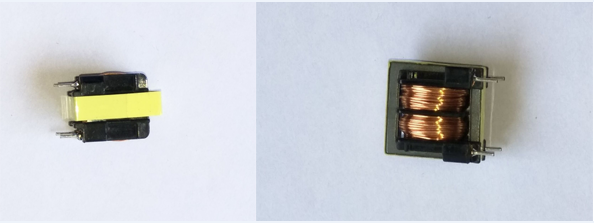

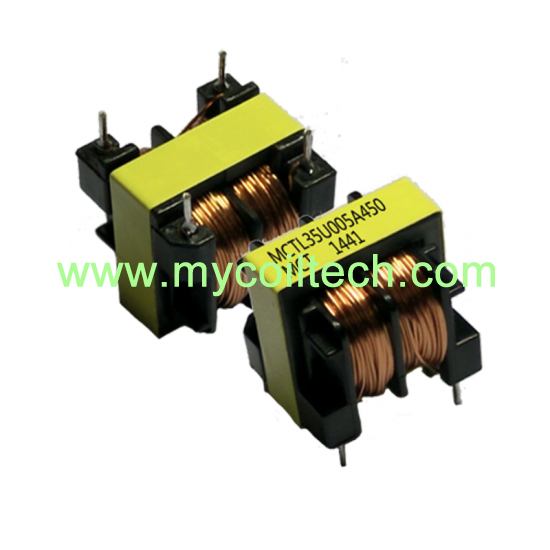

Product Name: High Frequency Electrical Power UU35 Common Mode Choke Inductor
Applications: Switching power supply, Lighting equipment, Data transmission, Wind generators, Frequency Converter.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.

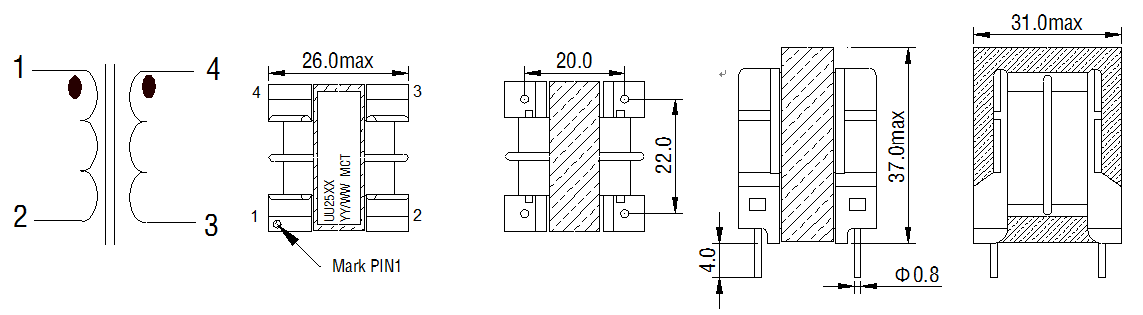

Product Specification
MCT Part No.
Inductance(mH) min
DC Resistance(Ω)max
Rated Current(A)
MCTL35U047A175
47.0
0.520
1.75
MCTL35U033A200
33.0
0.375
2.00
MCTL35U022A250
22.0
0.250
2.50
MCTL35U010A350
10.0
0.150
3.50
MCTL35U005A450
5.60
0.090
4.50
MCTL35U003A550
3.30
0.050
5.50
MCTL35U001A700
1.50
0.030
7.00
Different appreance is also customied designed by our engineers!
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
EMI Suppression Filter Common Mode Choke Coil UU9 For AC Power Lines
UU9 common mode choke foe line filter is easy to round,high saturated material,wide inductance range.Windings balanced within 1%.Different frequency require will also be meet.
Ferrite Common Mode Choke Coils UU10 Filter Inductor
UU10 common mode filter inductor has light weight, wide frequency range, high reliability, eaasy to round, low profile in vertical core layout. Used for high frequency transformers.
UU16 Wave Filter Inductance Common Mode Choke Coils Inductor
UU16 Series Standard Winding provides a large inductance. It has light weight, low profile in vertical core layout. Different frequency require will be meet by different material.
UU25 Common Mode Choke Filter For High Frequency Inverter
UU25 Common Mode Choke inductors are lead-free productswigh saturated material, wide inductance range. Different frequency require will be meet by different material.
ET20 Multi Section Inductor Base
2+2 pins ET20 horizontal inductor base, phenolic material base for ET20 filter. Base Size=21.0mmX21.0mmX11.6mm. Parallel Distance=18.5mm. Pin Distance=10.0mm. We manufacture final ET20 filter inductor, accept custom made transformers.
EE8.8 Clips For Small Electronic Transformer
Planar transformer bobbin. SMT transformer EE8.8 bobbin clamps. Mainly for high frequency transformer, flyback transformer, led lighting transformer and other electronic transformers. Clip Size=10.5mmX5.6mmX2.5mm. We have new bobbin tooling to meet special requirement.
High Frequency ETD49 Ferrite Core Vertical Bobbin
ETD49 welding transformer bobbin. 11+11 pins vertical ETD49 bobbin. Bobbin Size=53.4mmX34.0mmX55.2mm. Pin distance=5.0mm. Parallel Distance=28.0mm. Lead free transformer bobbin. DIP bobbin.
EF20 PCB Mounting Transformer Case
EF20 A3X2G5 material transformer case, we produce variour coil bobbins. We also manufacture final transformers and inductors. EF20 high frequency transformer mainly used in power supplies, electronic devisec, instrument, LED lighting, rectifier, audiio equipments.
EI38 Low Frequency Transformer Bobbin
EI38 ferrite core bobbin, 6+6 pins EI38/20.5 coil former. A3X2G5 material horizontal bobbin. Size=33.0mmX28.5mmX32.2mm, Parallel distance=27.3mm. Bobbin pin pitch=5.0mm. We produce various transformer bobbins and supply magnetic cores, we accept make new tooling to meet special size requirements.
PQ26/25 Flyback Transformer Vertical Bobbin
Vertical PQ26/25 single slot transformer, bobbin size=33.2mmX26.9mmX25.6mm. Parallel distance=26.3mm, pin pitch1=3.8mm, pin pitch2=7.6mm. Phenolic PQ26 bobbin for high frequency transformer, mainly used in PCB circuits, printers, filters, computers, LED lighting, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.
High Frequency EI19 Transformer Horizontal Bobbin
Switching power transformer. Horizontal EI19 2+2 pin bobbin. Bobbin Size=18.2mmX15.0mmX17.3mm.Pin pitch1=15.24mm. Pin pitch2=9.4mm. Parallel Distance=10.16mm. We produce and design EI16 electronic transformer for customer, mainly used in power supplies, lighting, UPS, computers, telecom communication systems, welding machines and other industries.
5+5 Pins BP Transformer Bobbin For Inductors Vertical Type Bobbin
BP40 vertical transformer bobbin. 5+5 Pins Bobbin. Parallel Distance=24mm. Pin Pitch=5mm. UL REC:94V-0. Bobbin Size=28.3mmX24mmX8.1mm. BP40 phenolic bobbin.
