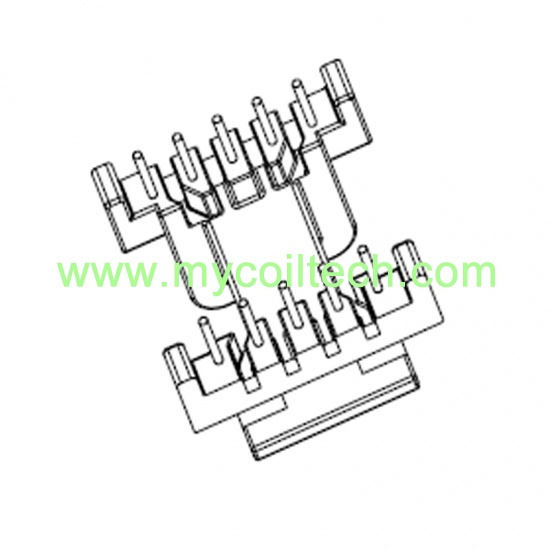

EF25 power transformer design. 5+5 pin coil former EF25. Bobbin Size=25.9mmX25.0mmX18.8mm. Transformer bobbin made of T375HF material. Pin pitch=4.0mm. Parallel Distance=20.0mm. DIP transformer bobbin.
product origin:
Chinabrand:
MCTitem no.:
MCT-EF2581shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.145$Wounded component manufacturer, transformer bobbin produce and sell, welcome customized final transformer.
Quick Details
|
Part No: MCT-EF2581 |
Brand Name: MCT |
|
Material: T375HF |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: High Frequency SMPS Transformer EF25 Bobbin
Standard parts: Transformers, Inductor, current transformers, magnetic cores.
Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.
Product Specification
Please be free to contact us, we will do our best to serve you.
Email: sales003@mycoiltech.com
Skype ID: live:sales003_125
Contact: Miss Lily
QQ: 2783136957
