brand:
MCTitem no.:
EFD Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: EFD Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core High permeability |
OEM: Available |
|
Core Materials: M10P, M7P, M5P, MP4 |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: High Frequency Transformers EFD Series Ferrite Core for Surface Mounting
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: Small size and large power transformers, monitor backlight power supply, LED power supply, precision instruments, power modules, the computer terminal output.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details

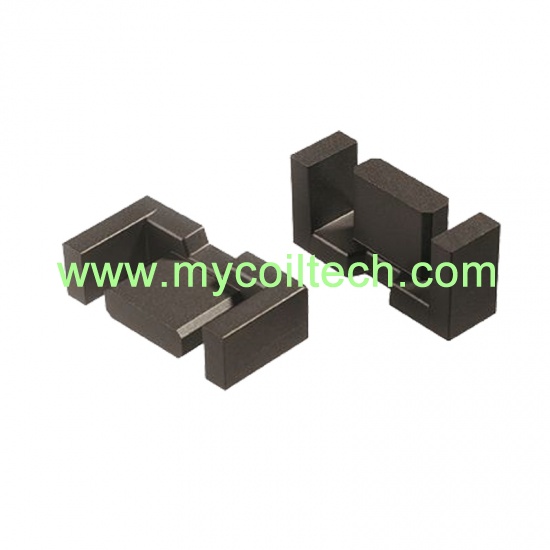

EFD series high frequency ferrite core wieh small thermal resistance
Fig1 EFD10/EFD15 Core Fig2 EFD Core
|
TYPE |
Dimension:mm |
Weight:g |
||||||
|
A |
B |
C |
D |
F |
G |
H |
||
|
EFD10 |
10.5±0.3 |
5.20±0.1 |
2.70±0.1 |
1.45±0.2 |
4.55±0.25 |
3.75±0.2 |
7.75±0.25 |
0.91 |
|
EFD12 |
12.5±0.3 |
6.20±0.2 |
3.50±0.2 |
2.0±0.2 |
5.40±0.25 |
4.55±0.2 |
9.0±0.25 |
1.8 |
|
EFD13 |
13.2±0.3 |
6.60±0.2 |
4.60±0.2 |
2.05±0.2 |
5.60±0.25 |
4.5±0.2 |
10.7±0.25 |
1.6 |
|
EFD15 |
15.0±0.4 |
7.50±0.2 |
4.65±0.2 |
2.4±0.2 |
5.30±0.25 |
5.5±0.25 |
11.0±0.35 |
2.8 |
|
EFD17 |
16.9±0.3 |
7.60±0.2 |
5.50±0.2 |
2.9±0.2 |
7.30±0.15 |
5.6±0.15 |
13.2±0.34 |
3.3 |
|
EFD20 |
20±0.55 |
10.0±0.2 |
6.65±0.3 |
3.6±0.2 |
8.90±0.3 |
7.7±0.25 |
15.4±0.5 |
7 |
|
EFD20L |
20±0.55 |
12.7±0.25 |
6.65±0.3 |
36.±0.2 |
8.90±0.3 |
10.45±0.25 |
15.4±0.5 |
7.9 |
|
EFD25 |
25±0.65 |
12.5±0.2 |
9.1±0.3 |
5.2±0.2 |
11.4±0.3 |
9.3±0.25 |
18.7±0.6 |
16 |
|
EFD30 |
30.0±0.8 |
15.0±0.2 |
9.1±0.3 |
4.9±0.25 |
14.6±0.4 |
11.2±0.3 |
22.4±0.75 |
24 |
|
EFD50 |
50.0±0.8 |
25.0±0.3 |
10.0±0.3 |
6.0±0.2 |
23.0±0.3 |
17.0±0.3 |
35.0±0.8 |
90 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
EFD10 |
3.29 |
7.2 |
23.7 |
171 |
560 |
|
|
|
|
EFD12 |
2.50 |
11.4 |
28.5 |
325 |
800 |
|
|
|
|
EFD13 |
3.01 |
9.80 |
29.5 |
289 |
700 |
|
|
|
|
EFD15 |
2.27 |
15.0 |
34.0 |
510 |
700 |
|
|
|
|
EFD17 |
1.77 |
20.0 |
35.4 |
708 |
1050 |
|
|
|
|
EFD20 |
1.52 |
31.0 |
47.0 |
1460 |
1300 |
|
|
|
|
EFD20L |
1.85 |
33.0 |
61.2 |
2105 |
1050 |
|
|
|
|
EFD25 |
1.00 |
58.0 |
57.0 |
3300 |
2000 |
|
|
|
|
EFD30 |
0.98 |
69.0 |
68.0 |
4700 |
2100 |
|
|
|
|
EFD50 |
0.68 |
151.5 |
103.3 |
15463 |
3900 |
|
|
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
