Single phase EMI filter for converter, has high performance with differential mode choke. (1)Test Voltage ( 1min ): Line to Ground: 2000AC. Line to Line:1450VAC. (2)Leakage current(max): Line to Ground: @250VAC/50Hz (3)Various connection optional: bolt and busbar terminals.
brand:
MCTitem no.:
High Performance Single Phase Filter Seriesshipping port:
Shanghai

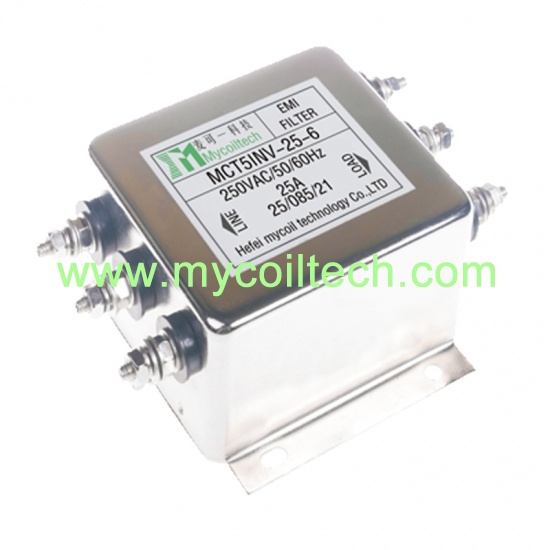

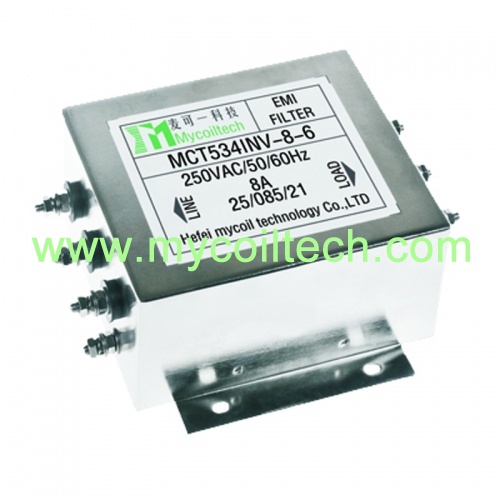

Best selling AC EMI/EMC noise filters, it has high performance and good low frequency attenuation. Our single phase EMI filters are available for inverters, which meet the RFI electromagnetic compatibility of European standard. We can provide samples for the testing, custom design acceptable.
Quick Details
Part No: High Performance Single Phase Filter Series |
Brand name: MCT |
Rated Voltage: 120/250VAC |
Custom made: Available |
Rated Current: 6A~25A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF 25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: High Performance Single Phase EMI Filter for Speed Motor Device
Product features: (1)High performance with differential mode choke. (2) Good low frequency attenuation. (3)Available for inverters and available for speed motor device.
Applications: Output filter for frequency inverter and converter, UPS, SMPS, three-phase motor drives.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
3 phase output EMC/EMI filter, it has excellent interference suppression for Dv/Dt. (1)Test Voltage ( 1min ): Line to Ground: 1450VAC. Line to Line: 2700VAC. (2)Insulation Resistance: Line to Ground: ≥3000Ω. Line to Line: ≥6000Ω. (3)Various connection optional: bolt and busbar terminals.
AC three phase input EMI filter for inverter, with high interference industrial environment. (1)Test Voltage ( 1min ): Line to Ground: 1450VAC. Line to Line: 2700VAC. (2)Leakage current(max): Line to Ground: @250VAC/50Hz (3)Various connection optional: bolt and busbar terminals.
4+4 pins ER7.5 SMD bobbin, ER7.5 PCB mounting transformer. Pin pitch=1.75mm. We supply ER7.5 cores, for special size, we can make new tooling.
Custom design transformer. EF series horizontal bobbin. Bobbin Size=25.7mmX22.8mmX20.9mm. Parallel Distance=20.0mm. Pin pitch=5.0mm. BASF material bobbin. DIP transformer bobbin.
2+2 Pins UU9.8 Bobbin, Horizontal Type Pin Pitch=7mm, Parallel Distance=8mm Size=12.8mmX10.6mmX12mm,UL REC:94V-0
EVD25 ferrite fore horizontal bobbin. 5+5 pins EVD25 transformer bobbin. Bobbin Size=26.1mmX25.8mmX19.9mm. Parallel Distance=20mm. Pin pitch=4.0mm. PA66 material EVD25 transformer bobbin. UL REC:94V-0.
2 Pin DIP Inductor Base,Phenolic Material,UL REC:94V-0 Base Outside Diameter=14.8mm Height=6.2mm
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Size=20.5mmX12.2mmX9.1mm
Eight slots EFD20 transformer bobbin. SMD horizontal coil former. Pin Pitch1=2.5mm. Pin Pitch2=4mm. Parallel distance=24mm. Size=28mmX19.6mmX8.09mm. Bobbin material: LCP-E4008. Customized designs are accepted.
ER28 vertical bobbin 6+6 pins. ER28 phenolic material bobbin. Bobbin Size=28.7mmX27mmX36.4mm. Pin Pitch=5mm. Parallel distance=22.5mm. We can make tooling. DIP bobbin. UL REC:94V-0
ETD34 switching power transformer. Customized high frequency ETD34 bobbin pin 7+7. Bobbin Size=39.6mmX23.3mmX43.2mm. Pin pitch=5.08mm. Parallel Distance=22.86mm. We supply ETD34 ferrite cores and transformers. ETD34 flyback transformer widely used in server,power supply,amplifier,electrical equipments,LED drive supply, etc.
Horizontal EVD30 6+6 pins bobbin, power transformer EVD30 bobbin. Bobbin Size=34.2mmX26.0mmX19.6mm. Parallel Distance=28.0mm. Bobbin Pin Pitch1=5.0mm. Bobbin Pin Pitch2=3.8mm. EVD25 transformer manufacture.
