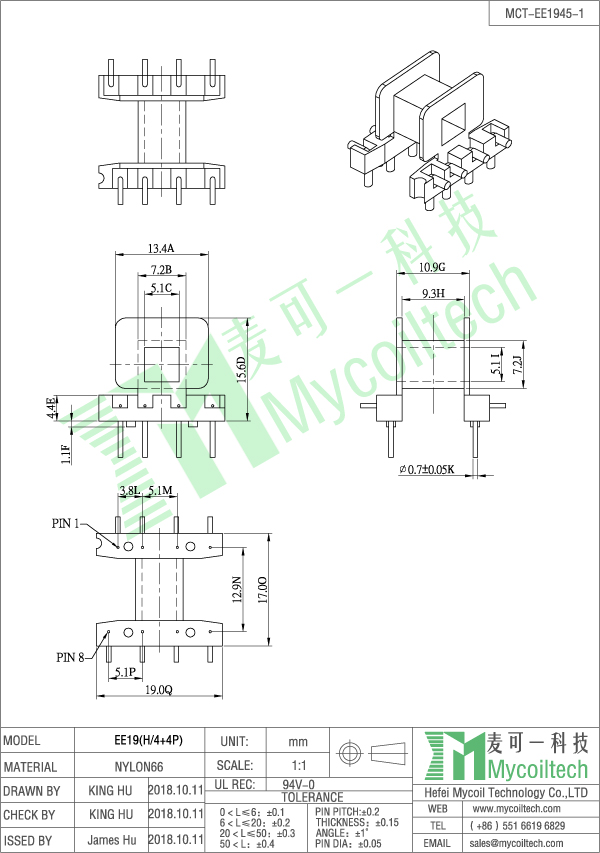

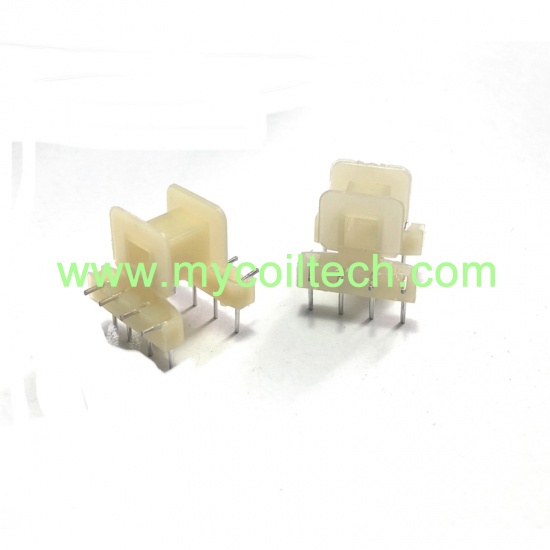

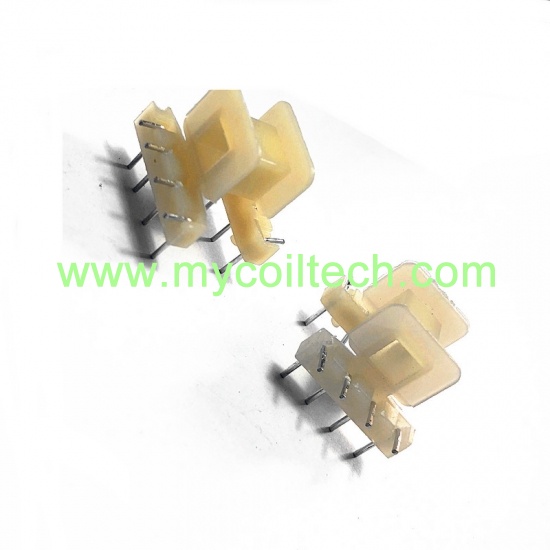

EE19 power transformer bobbin. 4+4 pin horizontal coil former. Parallel distance=12.9mm. Pin Pitch=3.8mm. Bobbin Size=19.0mmX17.0mmX15.6mm. Nylon material transformer bobbin.
brand:
MCTitem no.:
MCT-EE1945-1shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.066$8 pins EE19 coil former, horizontal EE19 transformer bobbin from MCT, we manufacture final transformers
Quick Details
|
Part Number: MCT-EE1945-1 |
Brand Name: MCT |
|
Material: NYLON66 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: High Voltage EE19 Transformer Horizontal Bobbin
Product Range: Transformers, coils, bobbins, magnetic cores.
Applications: switching power supply transformers, inductors, high frequency transformers, filters.
Product Specification
Please contact us for more details:
