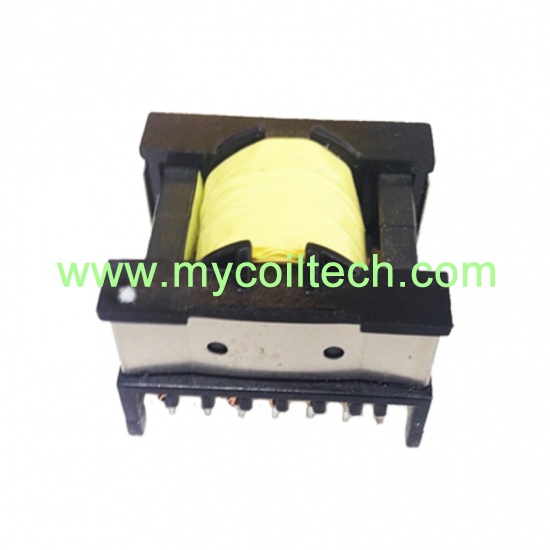

Horizontal ETD34 High Voltage Transformer for Switching Power Supply

ETD34 core power transformer for audio equipment. High frequency transformer ETD34 with horizontal transformer bobbin. It has high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.

  • brand:

    MCT
  • item no.:

    Flexible SMPS-Transformer ETD34
  • shipping port:

    Shanghai
contact now
product description

Transformer factory hot selling high quality switch mode transformers, low leakage inductance ETD34 transformers, custom design and OEM service also available.


Quick Details

Part No: Flexible SMPS-Transformer ETD34

Brand name: MCT

Insulation test voltage: 3750V

Custom made: Available

Low leakage inductance

Logo: Can be customized

Transformer with multi-winding

Packing: Carton, can custom

Operating temperature -40°C~+125°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: Horizontal ETD34 High Voltage Transformer for Switching Power Supply

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specifications

High current horizontal ETD34 transformer manufature

Electrical Data and Part Number(PN)

Lp in uH

L1..Lin mA

Lsat in mA

DCR/

MCT PN

115.0

2200

320

50

MCT-ED115

65.0

2200

660

50

MCT-ED065

35.0

2200

1550

50

MCT-ED035

22.0

2200

3000

50

MCT-ED022


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829

Request a Free Quote

If you are interested in our products or have any questions, contact us now!
