brand:
MCTitem no.:
MCT-EF2050shipping port:
ShanghaiBobbin factory direct selling transformer bobbins, good price and high quality 4+6 pin EF20 coil former. We accept small order and OEM service, we can provide samples for the testing.
Quick Details
|
Part No: MCT-EF2050 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information

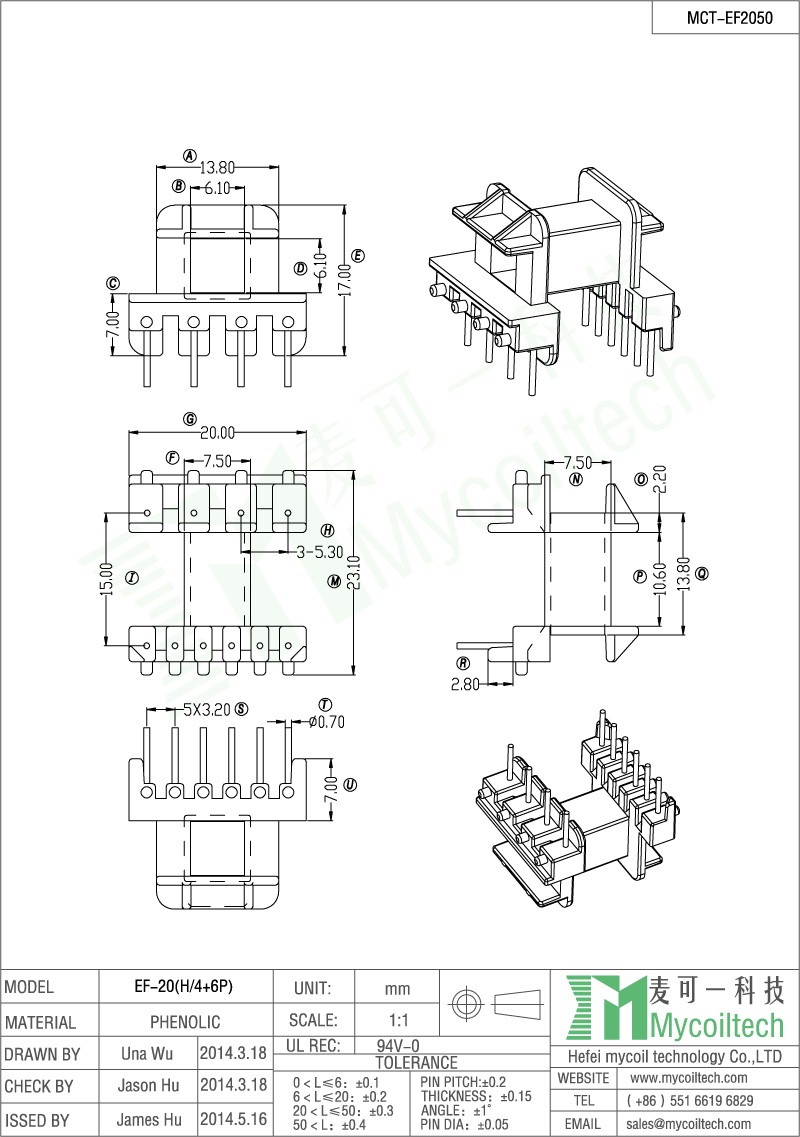

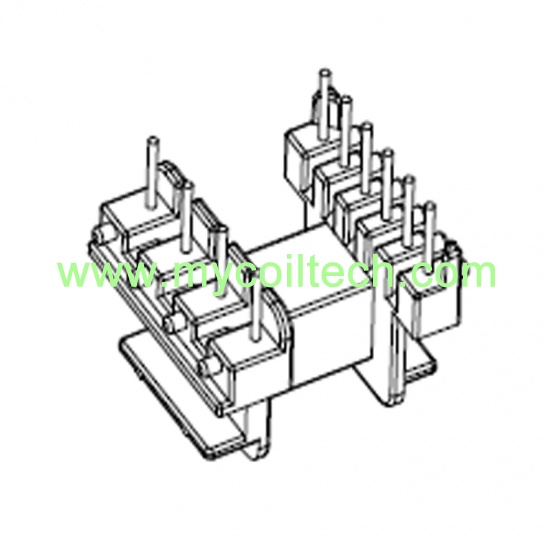

Product Name: PCB Mount Transformer EF20 4+6 Pin Horizontal Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
EF10 Electronic Transformer Bobbin, 4+4 Pin Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.2mm Size=12.8mmX11mmX9.8mm
EF16 Power Transformer Horizontal Frame
EF16 drive transformer bobbin, horizontal bobbin EF16 with 4+4 pins. Row distance=17.80mm. Pin pitch1=3.8mm. Pin pitch2=5.0mm. Bobbin Size=20.8mmX18.3mmX13.3mm. Bobbin creepage distance1=6.5mm, creepage distance2=4.0mm. EF16 SMPS transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EF13 Transformer Bobbin For PCB Mounting Transformer With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX13mmX12.1mm
2+2 Pins EF12 Phenolic Bobbin
4+4 Pins Horizontal Bobbin. Pin Pitch=6mm. Parallel Distance=12mm. Bobbin Size=14.5mmX11.8mmX9mm. Phenolic Matereial bobbin. UL REC:94V-0.
3+3 Pins EF12 Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Matereial,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=10mm Size=12.8mmX12.8mmX9.2mm
3+3 Pins EF12 Double Slots Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Matereial,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=10mm Size=12.8mmX12.8mmX9.2mm
5+5 Pins EF 12 Horizontal Transformer Bobbin
5+5 Pins Horizontal Bobbin, Phenolic Matereial,UL REC:94V-0 Pin Pitch=2.5mm Parallel=10mm Size=14.3mmX13.5mmX10.3mm
EF20 Transformer Bobbin Ferrite Core Bobbin 3+3 Pins
3+3 pin transformer bobbin EF20. Horizontal power transformer bobbin. Bobbin Size=20mmX19mmX20.55mm. Parallel Distance=16mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.
EF12 Double Slots Bobbin for FlyBack Transformer
Power transformer EF12 bobbin. 5+5 pin two slots EF12 coil bobbin. Bobbin Size=15.0mmX13.4mmX10.3mm. Parallel distance=10.2mm. Pin pitch=2.54mm. We have bobbin tooling to meet customer's requirement.
4+4 Pins EF16 Horizontal Transformer Bobbin For High Frequency Transformer
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=15mmX13mmX14.8mm
EF12.6 Transformer Bobbin 5+5 Pins Double Slots
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10.2mm Size=15.2mmX13.3mmX10.3mm
EF12.6 Transformer Bobbin 3+3 Pins Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.8mm Parallel Distance=7.6mm Size=14mmX10mmX15.65mm
