Mini Precision Current transformer has good linearity, easy to installation. Materials UL94-V0. Insulation Rating Class F (155OC). Power supply is needed when the operational amplifier is added to the transformer,e.g. ±15V，±12V or according to the actual operation.
brand:
MCTitem no.:
MCT06A30 Precision Current Transformershipping port:
ShanghaiHefei Mycoil Technology Co.,LTD is specialized in manufacturing coil type products and filters products, precision current transformer is our new products, we produce different types current transformers. If you are interested in our current transformers, you can send specification to us, our engineers can design according to your requirements. We also can send free current transformer samples in 5 days, if our samples approved your testing, then we can began from small order to big order!
Quick Details
|
Part No: MCT06A30 Precision Current Transformer |
|
Brand name: MCT |
|
Operating temperature：-40°C~50°C |
|
Custom made: Available |
|
Storage temperature:-40°C~70°C |
|
Logo: Can be customized |
|
Relative humidity:10~95% |
|
Packing: Carton, can custom |
|
Rated input current:30A |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information

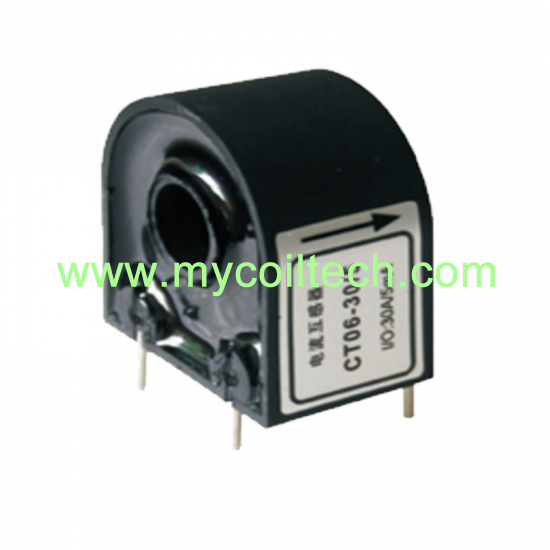

Product Name: PCB Mounting Mini Precision Current Transformer
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay
protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner
packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN |
Rated IN/OUT |
Accuracy |
Linearity Range |
Phase shift |
Load resistance |
Isolated withstand voltage |
Threading aperture, Unit:mm |
|
MCT06A30 |
30A/5mA |
0.2 |
0~60A |
≤10’ |
≤800Ω |
3000V |
Φ8.80 |
|
MCT06A50 |
50A/10mA |
0.2 |
0~100A |
≤10’ |
≤500Ω |
3000V |
Φ8.80 |

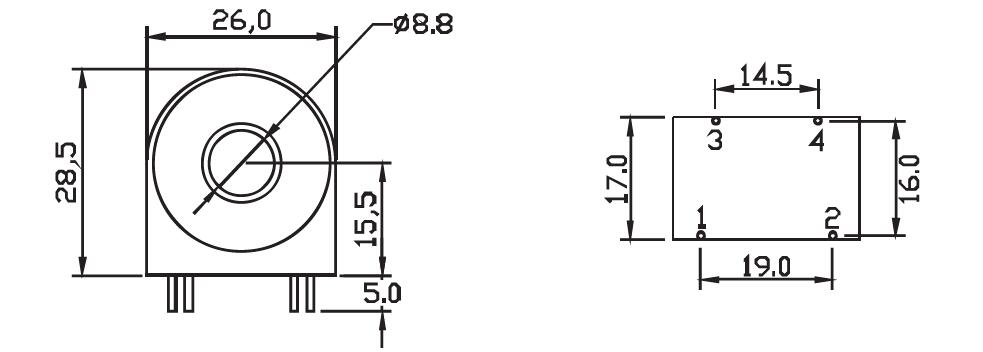

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
If you have any questions, please contact us or leaving your comments, we will
give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
