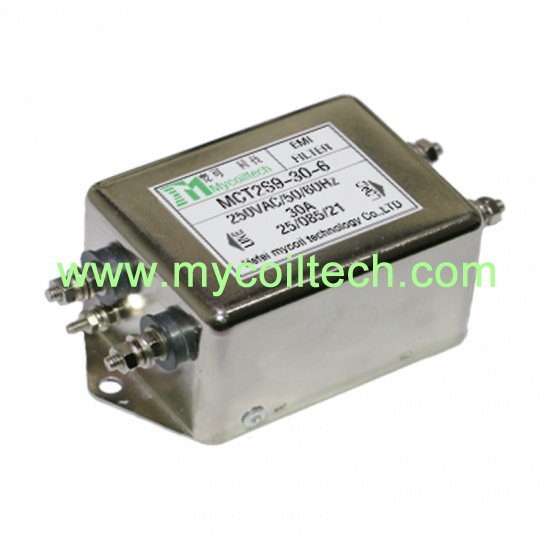

Single phase power filters. High performance with differential mode choke. Good low frequency attenuation. Good performance for inverter and kinds of speed motor apparatus, which meet the RFI electromagnetic compatibility of Euro standards. Welcome for customized products.
brand:
MCTitem no.:
MCT2S9 Single Phase High Performance Filters Seriesshipping port:
ShanghaiHigh performance single phase filter with differential mode choke. We design various noise EMI filters to meet different applications, if you need customized single phase EMI filters, we also can design for you and samples can be provided in 5 days.
Quick Details
MCT2S9 Single Phase High Performance Filters Series |
Brand name: MCT |
Rated Voltage: 120/250VAC |
Custom made: Available |
Rated Current: 6A~25A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: Single Phase High Performance EMI Filter for Inverter
Applications: Inverter. Frequency drive device. Medical equipment. Electrical equipment. Electronic data processing equipment. Industrial applications. Various noisy applications requiring good filter performance
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
