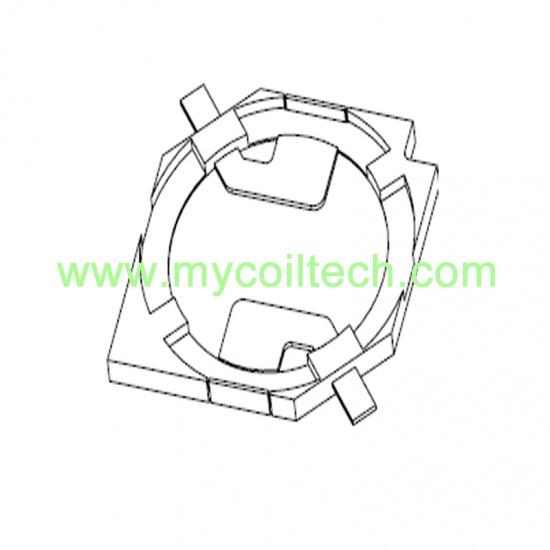

Toroidal base inductor. SMD base made of LCP material. We manufacture various line filter and power inductor for customers, special specifications available upon request. Our high current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.
product origin:
Chinabrand:
MCTitem no.:
MCT-SMD-BASE01shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.038$SMD shield power inductor base, low cost and high reliability, provide samples for testing.
Quick Details
|

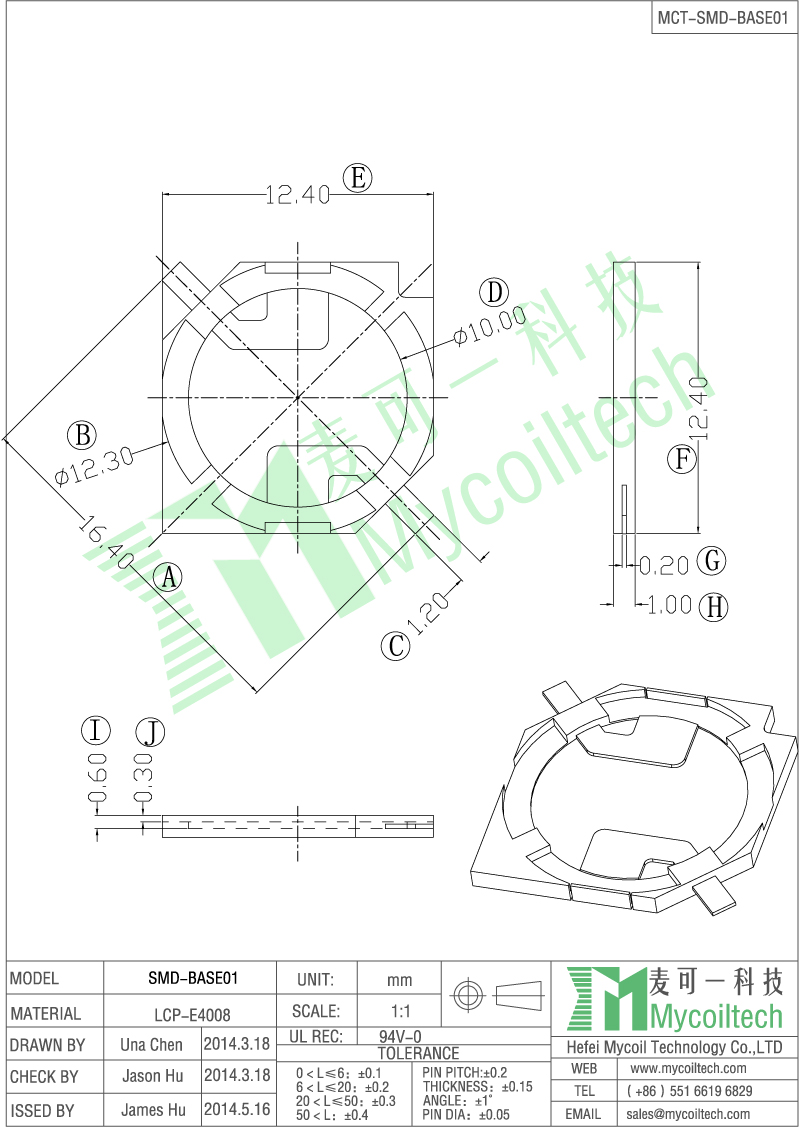

Part No: MCT-SMD-BASE01 |
Brand Name: MCT |
|
Material: LCP-E4008 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: SMD Choke Coil Inductor With Base
Product Range: Transformers, relays, coils, bobbins, ferrite cores.
Applications: common mode choke, power inductor, filter inductor.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
Commom Mode Choke Inductor Filter SMD Base 12.7*9.3mm Base
Without Pin,LCP Material,UL REC:94V-0 Inductor Base Size=12.7mmX9.3mmX1.4mm
18mm Length SMD Inductor Filter Base
Without Pin,LCP Material,UL REC:94V-0 Inductor base size=12mmX12mmX1.4mm
LCP Material SMD Power Inductor Base For High Voltage Inductor
Without Pin,LCP Material,UL REC:94V-0 Inductor base size=14.2mmX18.5mmX1.6mm
Magnetic Inductor Base For Transformer Common Mode Inductor Bobbin
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Outside Diameter=13mm Height=4.3mm
Toroidal Common Mode Choke Inductor Base With 3+3P DIP Base
3+3 Pins Dip Base,LCP Material,UL REC:94V-0 Inductor base size=11.5mmX10.5mmX2.6mm
Common Mode Choke Ferrite Core Inductor Base With DIP Base
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Pin Pitch=14mm Parallel Distance=7mm Inductor base size=17mmX10mmX13.5mm
Drum Core Inductor Base With 2+2P Round Base
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Outside Diameter=15mm Height=4.3mm
T375HF Material Common Mode Choke Inductor Base
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Inductor base size=15mmX10mmX9mm
Common Mode Choke Inductor Base With 2+2P T375HF Material Base
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Inductor base size=15mmX10mmX10mm
Ferrite Toroidal Common Mode Choke Inductor Base
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=4.5mm Inductor base size=10.7mmX7mmX2.5mm
Bobbin Ferrite Core Common Mode Choke Inductor Base
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Pin Pitch=4.5mm Parallel Distance=14mm Inductor base size=20.5mmX16mmX11.5mm
20*20mm Common Mode Choke Square Inductor Base
Without Pins,LCP Material,UL REC:94V-0 Inductor base size=20mmX20mmX3mm
