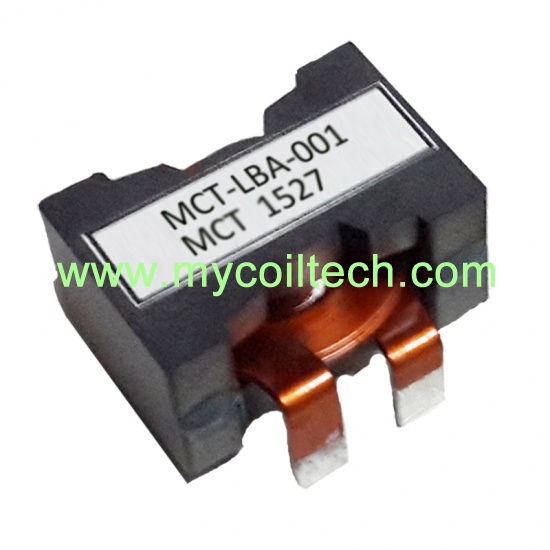

PQ type SMD large current shielded inductor. We design this power inductor wieh PQ20/16 ferrite core, wingding with flat copper-single layer. Operation temperature: -40°to+125°C. Less temperature rise. Mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems.
brand:
MCTitem no.:
Shielded Power Inductorsshipping port:
ShanghaiWe are professional high current power inductor manufacturer, we design various RM type current inductors, DIP/SMD type current inductors, large current inductors and other type large current inductors.
Our high current shielded power inductors have high saturation current, very low core losses-ferrite(MnZn) and high current capability. Mainly used in storage inductor for high efficiency DC/DC converters, especially used by buck converters, filter for audio applications, etc. We accept custom design and OEM service, if you have any requests, welcome to contact us.
Quick Details
|
Part No: Shielded Power Inductors |
|
Brand name: MCT |
|
Operation temperature: -40°to+125°C |
|
Custom made: Available |
|
Less temperature rise |
|
Logo: Can be customized |
|
Ferrite core PQ20/16 |
|
Packing: Carton,can custom |
|
Wingding with flat copper-single layer |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information
Product Name: SMD Shielded Power Inductor PQ Type High Current Chokes
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Automotive electronics.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging)
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Electrical Data and Part Number(PN)
|
I in A |
L in uH |
RDC/mΩ |
PN |
|
10.00 |
12 |
0.060 |
MCT-LBA-001 |
|
16.00 |
8.0 |
0.070 |
MCT-LBA-002 |
|
20.00 |
5.0 |
0.050 |
MCT-LBA-003 |
|
25.00 |
2.7 |
0.025 |
MCT-LBA-004 |
|
30.00 |
2.2 |
0.020 |
MCT-LBA-005 |
If you have any questions, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
3+3Pin EE8.3 Bobbin for Ferrite Core
3+3 Pins Horizontal Bobbin, Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=6mm Size=8.2mmX8.1mmX7.1mm
EF20 5+5 Pin Transformer Horizontal Bobbin
Horizontal coil bobbin. EF20 power transformer manufacture. Bobbin Size=22.0mmX22.0mmX16.0mm. Pin pitch=3.8mm. Parallel Distance=15.0mm. Transformer bobbin with PA66 material.
Common Mode Inductor UU10.5 Coil Former
UU10.5 EMI/RFI noise nilter manufacturer. 2+2 pin vertical UU10.5 bobbin. Low resistance and high temperature rise. Bobbin Size=17.8mmX16.9mmX18.5mm. Parallel Distance=10.0mm. We produce UU10.5 bobbin, UU10.5 cover and UU10.5 clips.
EE25 Vertical Single Slot 4+4 Pin Electronic Transformer Bobbin
EE25 4+4 pin vertical bobbin. Bobbin Size=16.9mmX16.5mmX19.6mm. Pin Pitch=5mm. Parallel Distance=12mm. EE25 phenolic material transformer bobbin. DIP transformer bobbin. UL REC:94V-0.
10uH Ferrite Drum Core Inductor DR1008 Radial Leaded Inductor
DR1008 radial ferrite core drum core inductor. Mainly for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
Electronic Transformer Bobbin Case for High Frequency Transformer
Pet Electronic Transformer Case. Black transformer case. Case Size=46.4mmX41.9mmX26.1mm. We can make case tooling. For PET transformer bobbin. UL REC:94V-0
EI Type Encapsulated Transformer Low Frequency and Power Transformer
EI Series PCB Mounting Encapsulated Transformers Output Power: 17.0 VA – 50.0 VA. Low frequency encapsulated transformer. Standard type cast housing “KK”. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features. Self-extinguishing cast housing and sealing material. Per item tested quality with certificate.
EE30 Flyback Transformer Vertical Frame
3+3 pin EE30 vertical bobbin, multi slots coil transformer. Bobbin Size=21.5mmX19.0mmX24.5mm. Pin pitch=4.0mm. Parallel Distance=12.5mm. Low voltage and low frequency EE30 electronic winding transformer.
EFD25 High Frequency Ferrite Core Seagull Feet Bobbin
Power supply transformer bobbin. EFD25 horizontal bobbin 5+7 pin. Pin pitch1=5mm. Pin pitch2=3.5mm. Bobbin Size=35mmX25.5mmX13.5mm. Phenolic material transformer bobbin. We can make bobbin tooling. UL REC:94V-0.
Power Supply Transformer EC28 Horizontal Bobbin
EC28 6+6 pins horizontal transformer bobbin. EC/ER28 coil inductor bobbin. Bobbin Size=29.0mmX28.0mmX24.0mm. Parallel Distance=25.0mm. Pin pitch=5.0mm. Phenolic material transformer Bobbin. DIP transformer bobbin. UL REC:94V-0.
Vertical EE13 High Frequency Power Transformer Bobbin
EE13 mini electronic drive transformer. EE13 5+5 pin vertical frame. Coil former Size=13.3mmX12.3mmX19.85mm. Parallel Distance=8.5mm.Pin pitch=2.5mm. We supply EE13 PC40 material ferrite cores. Welcome customized EE13 transformer. Used in UPS, switching mode power supply, telecom communication systems, welding machines and other industries.
PM62/49 Soft Ferrite Core Bobbin
PM62 transformer without pins, PET material PM62 coil former. Mn-Zn ferrite cores. We manufacture final PM62 transformer and accept OEM service.
