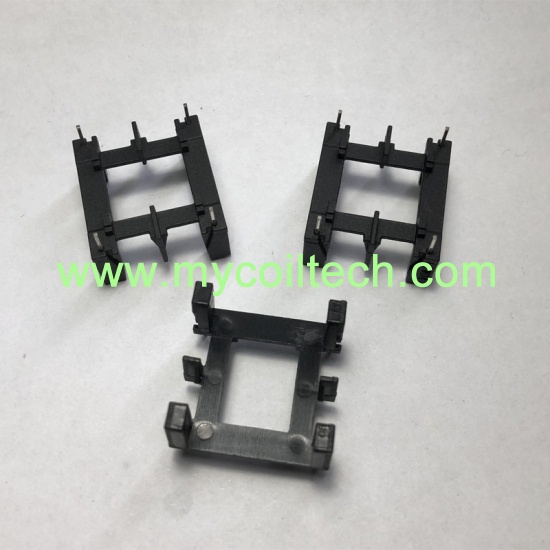

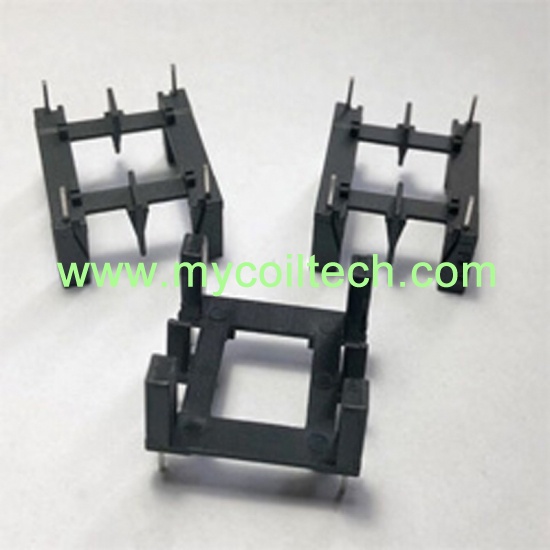

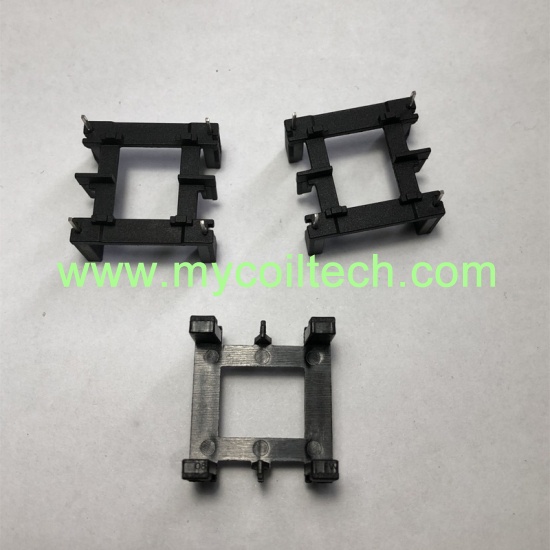

High current SQ23 inductor. 2+2 pins SQ23 horizontal coil former. Bobbin Size=25.5mmX24.0mmX11.75mm. Parallel Distance=22.5mm. Pin pitch=20.0mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.
brand:
MCTitem no.:
MCT-SQ2301(H/2+2P)shipping port:
Shanghaipayment:
T/T in advanceGood quality flat line common mode inductor, we produce SQ type bobbin ans supply matched ferrite cores, samples can be sent for testing.
Quick Details
|
Part No: MCT-SQ2301 |
Brand Name: MCT |
|
Material: Nylon |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: SQ23 Common Mode Choke Inductor Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: power supply,micro wave,household equipment,high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.

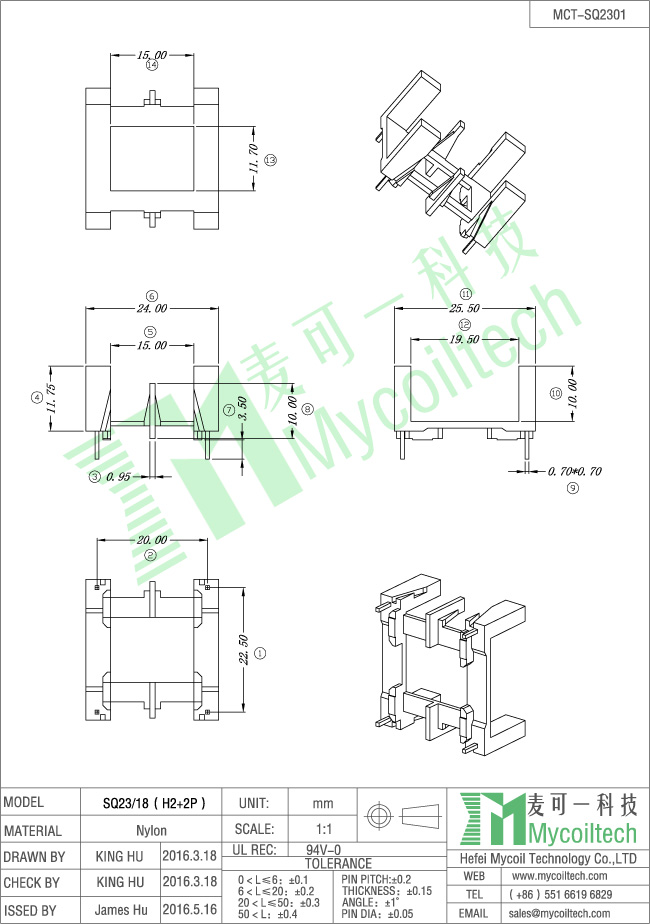

Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
Vertical High Current Inductor SQ23 Bobbin
Common mode choke inductor. 2+2 pins vertical SQ23 coil former. Bobbin Size=28.0mmX14.0mmX25.0mm. Parallel Distance=10.0mm. Pin pitch=18.8mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.
SQ19 Filter Inductor Horizontal Base 2+2 Pins
2+2 pins SQ19 inductor base, horizontal ET coil former for common mode choke inductor. Size=24.0mmX14.3mmX12.5mm. Parallel Distance=10.0mm. Pin pitch=19.0mm. PET material base. We are professional bobbin factory, we have made different series bobbin moldings, samples are available.
ETD44 Power Supply Transformer Vertical Frame
ETD44 THT transformer bobbin, 9+9 pins single slot coil former. Bobbin Size=49.5mmX31.2mmX51.7mm. Parallel Distance=27.94mm. Pin pitch=5.08mm. FR530 material ETD44 bobbin. We manufacture various SMPS transformers, accept OEM and custom design.
EER28 High Frequency Horizontal Transformer Bobbin 6+9 Pins
6+9 pins EER28 horizontal bobbin. Parallel Distance=26mm. Pin Pitch1=5.0mm. Pin Pitch2=4.0mm. Phenolic material EER28 transformer bobbin. Bobbin Size=36.4mmX31mmX23.6mm. UL REC:94V-0.
Four Slots EPC19 Transformer Bobbin 4+6 Pin SMD Horizontal Coil Bobbin
4+6 pin SMD Bobbin. Four slots horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=19mm. Bobbin Size=24mmX19mmX9.9mm. Customized designs are accepted.
2+2 Pins Double Slots UU16 Horizontal Transformer Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18.5mmX17mmX20.7mm
Horizontal Bobbin EE13 Transformer Bobbin Dip Type
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10mm Size=13mmX11.8mmX12.8mm
High Frequency Coil Former EF25 5+5 Pins Bobbin
EF25 horizontal winding bobbin. 5+5 pins coil former. Bobbin Size=26.7mmX24.5mmX20.1mm. Parallel Distance=20mm. Pin pitch=5mm. We can make bobbin tooling. DIP transformer bobbin.
EFD40 7+9 Pins Coil Former for Ferrite Cores Double Section Horizontal Bobbin
EFD40 multi section transformer bobbin. Horizontal bobbin. Parallel Distance=44.3mm. 7+9 pins transformer bobbin. Bobbin Size=45mmX44.3mmX12.7mm. UL REC:94V-0.
SMD Choke Coil Inductor With Base
Toroidal base inductor. SMD base made of LCP material. We manufacture various line filter and power inductor for customers, special specifications available upon request. Our high current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.
ETD49 High Voltage Transformer Ferrite Bobbin
ETD49 PCB mounting transformer, 10+10 pins ETD49 vertical coil former. Bobbin Size=61.4mmX33.9mmX56.0mm. Pin pitch=5.08mm. Parallel Distance=30.48mm. PET material ETD49 HF transformer frame.Manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
Low Frequency R Type Transformer Single Phase Power Transformer
Customized single phase R type transformer. R-type transformers EI transformer than 30% smaller, 40% thinner, 40% lighter. R type transformer leakage magnetic minimum, EI transformer than 10 times smaller. The heat generated R-core transformer EI transformer ratio at least 50% smaller.
