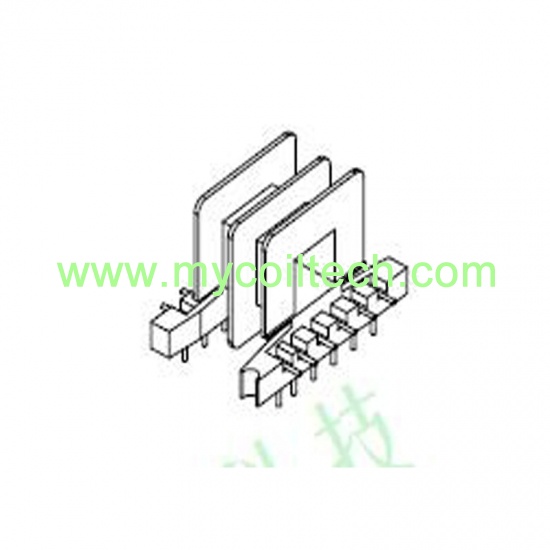

High frequency EE35 bobbin. Supply customized electronic transformer. 6+6 pin two slots bobbin. Parallel distance=21.4mm. Pin pitch=5.0mm. EE35 Bobbin Size=37.5mmX27.2mmX25.5mm. L pin transformer bobbin. EE35 PET material bobbin.
brand:
MCTitem no.:
MCT-EE3502-1shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.086$High quality and good price EE35 horizontal coil former, 6+6 pin with two slots EE35 bobbin, we make final transformer and supply matched EE35 ferrite cores.
Quick Details
|
Part Number: MCT-EE3502-1 |
Brand Name: MCT |
|
Material: PET |
Color: White |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Two Slots Transformer EE35 Bobbin 12 Pins
Product Range: Transformers, filters, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, choke inductors, high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Welcome for inquiry, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
