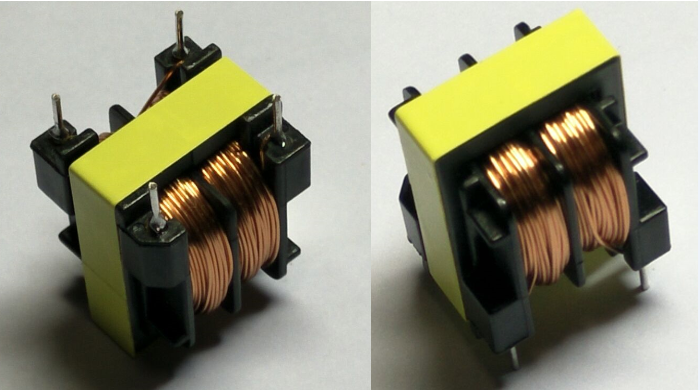

UU25 Common Mode Choke inductors are lead-free productswigh saturated material, wide inductance range. Different frequency require will be meet by different material.
brand:
MCTitem no.:
MCTL25U Series Standard Windingshipping port:

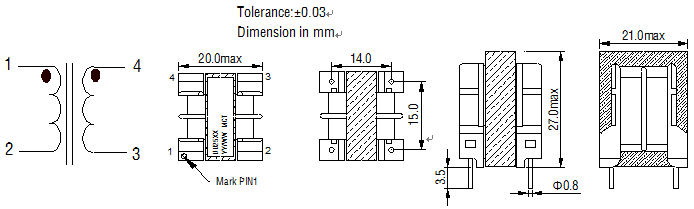

Shanghai PortOutline of EMI suppression Filter for AC Power Lines Common mode Choke coil MCTL25U Series standard winding. UU common mode choke mainly used for AC power suppliers, DC-DC converters and telecommunication equipment. We offer different series common mode choke, such as uu25.4 common mode choke, uu10.5 common mode choke, uu15.7 common mode filter inductor and other series common mode chokes. We also can design to meet customers requirements. Our common mode chokes products are UL and RoHS certified.
Quick Details
|
Part No: MCTL25U Series Standard Winding |
|
Brand name: MCT |
|
Rated voltage:85~265VAC,50/60Hz |
|
Custom made: Available |
|
Insulation resistance:100MΩ @500VDC |
|
Logo: Can be customized |
|
Turns ratio:1:1±2% |
|
Packing: Carton,can custom |
|
Hi-pot: 2500VAC/1mA/60Sec |
|
Certification: ISO9001,ROHS,CE |
|
Testing frequency:1KHz/0.25V |
|
OEM: Available |
|
Operating temperature:-40°C~+105°C |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: UU25 Common Mode Choke Filter For High Frequency Inverter
Applications: Switching power supply, Lighting equipment, Data transmission, Medical application equipment, Home appliance.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Specification
MCT Part No.
Inductance(mH) min
DC Resistance(Ω)max
Rated Current(A)
MCTL25U047A075
47.0
0.72
0.75
MCTL25U033A100
33.0
0.55
1.00
MCTL25U016A150
16.0
0.25
1.50
MCTL25U010A175
10.0
0.17
1.75
MCTL25U005A225
5.60
0.08
2.25

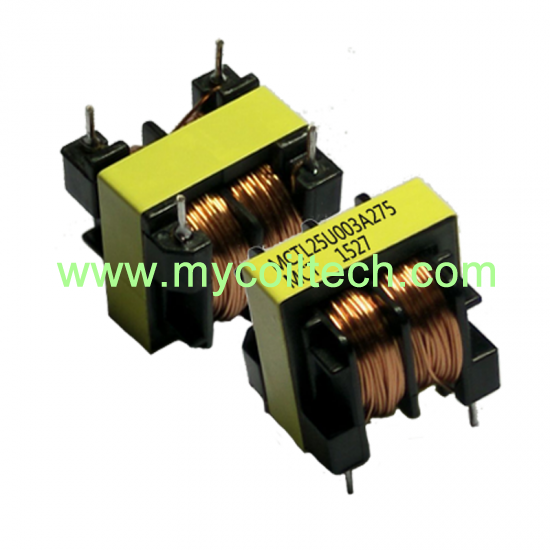

MCTL25U003A275
3.30
0.055
2.75
MCTL25U001A350
1.50
0.032
3.50
