brand:
MCTitem no.:
MCT-PQ2011(V6+8P)shipping port:
Shanghaipayment:

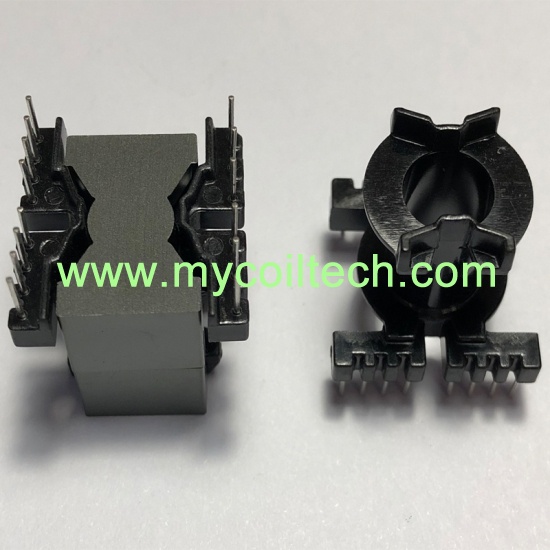

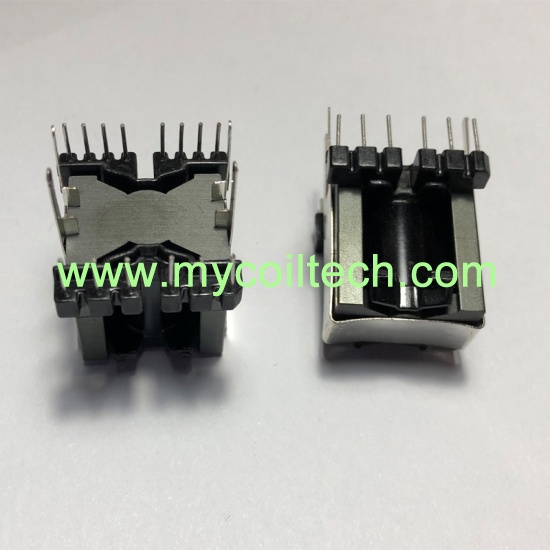

T/T in advanceHigh efficiency PQ20 transformer bobbin(coil former), single slot 6+8 pins, we can provide samples, custom design also acceptable.
Quick Details
|
Part No: MCT-PQ2011(V6+8P) |
Brand Name: MCT |
|
Material: T375HF |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: PQ20 Vertical Power Transformer Bobbin 6+8 Pin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: power transformers,flyback transformer,high frequency transformers,drive transformer.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.

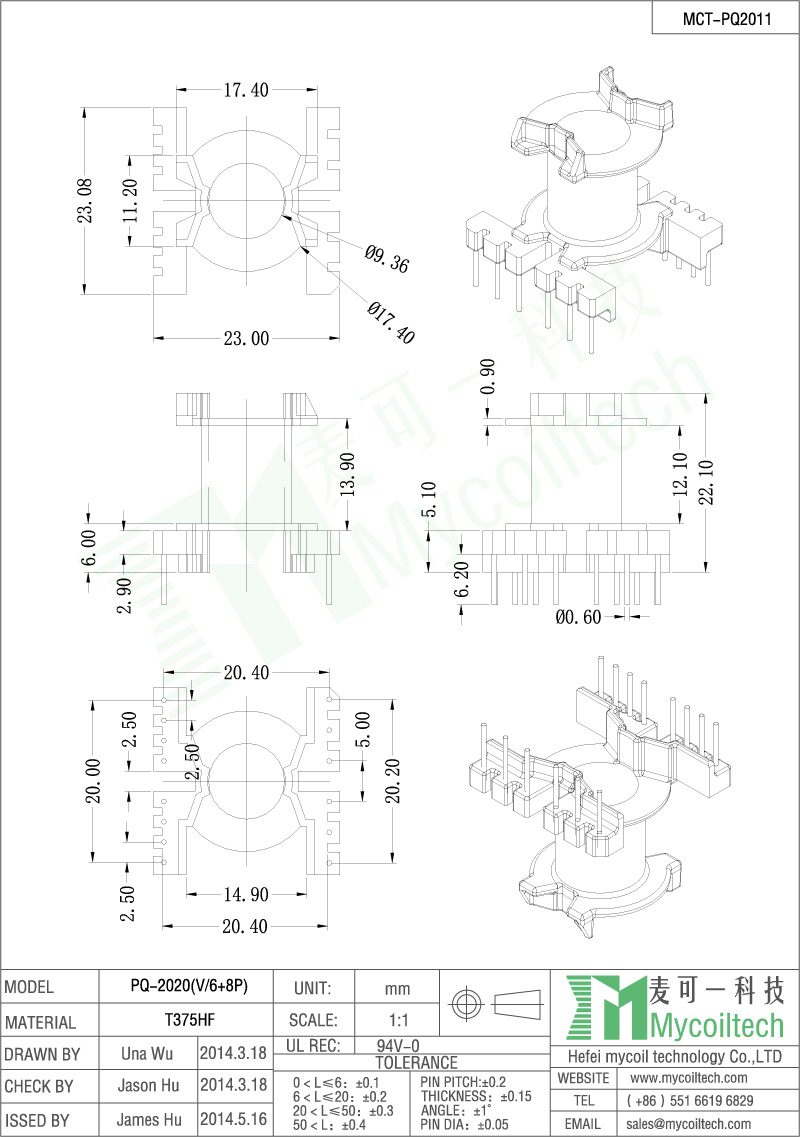

Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
