No Pin Bobbin,Phenolic Material,UL REC:94V-0

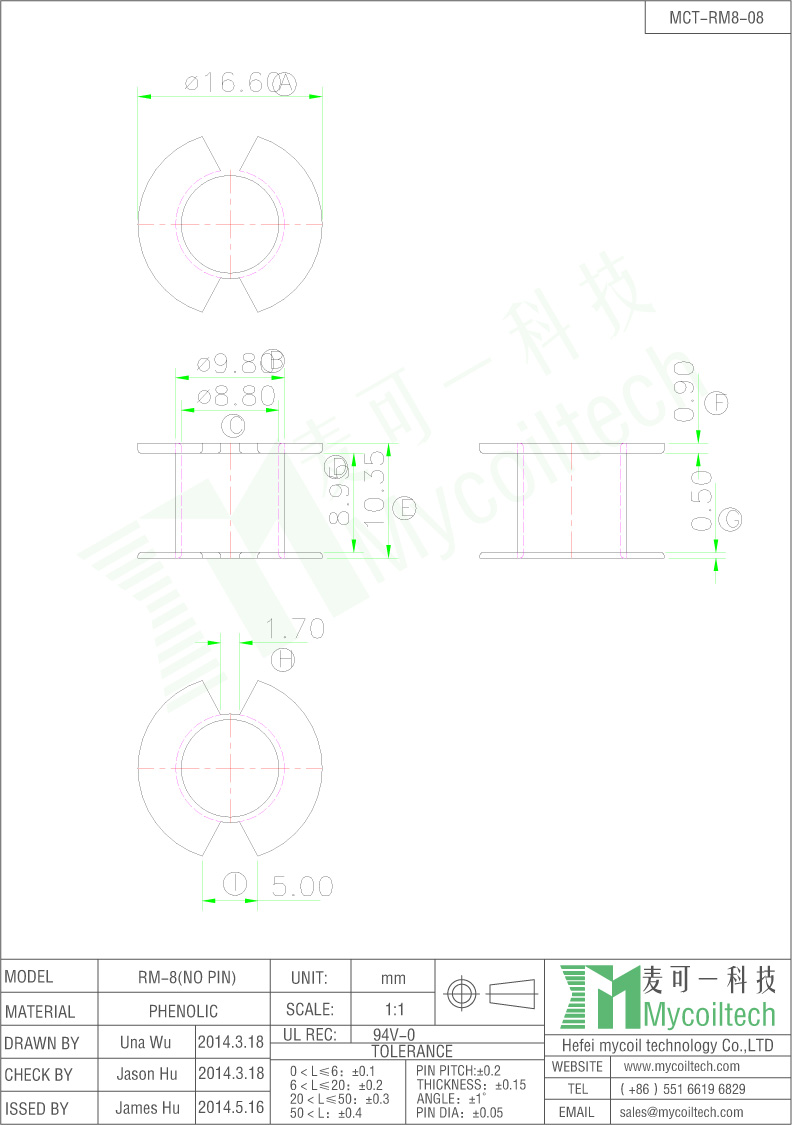

Size=16.6mmX16.6mmX10.35mm
brand:
MCTitem no.:
MCT-RM8-08(NO PIN)shipping port:
ShanghaiBest quality RM bobbin for telecommunication and electronic equipment, accept any quantity!
Quick Details
|
Place of Origin: Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material: Phenolic |
|
Part Number:MCT-RM8-08(NO PIN) |
|
Brand Name: MCT |
|
Color: Black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: RM8 Transformer Bobbin No Pin, for PCB Mounting
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supply, high frequency transformer, filter inductors, resonant inductors
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers, they can quickly respond to make drawings and samples.
We use high quality materials to make our bobbin products more stable.
Contact: Lily Yu
Email:sales003@mycoiltech.com
Skype: live:sales003_125
Product Specification
RM6 Power Supply Transformer Bobbin with 2+2Pins
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17.1mmX12.3mmX8.9mm
Vertical RM6 High Frequency Transformer Bobbin with 2+2Pin Double Slots
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17mmX12.3mmX8.9mm, Pin Dia=0.5mm
PCB Mounting RM6 Transformer Bobbin
RM6 led drive transformer bobbin, 4+4 pins vertical coil bobbin, coil former size=20.9mmX12.3mmX8.9mm,Pin Dia=0.5mm, Phenolic Material,UL REC:94V-0, DIP Bobbin, accept customized RM6 small electronic transformer.
RM6 Vertical Bobbin for Household Ferrite Core,with 4+4 Pin Double Slots
4+4 Pins Vertical Bobbin. Double Slots Bobbin. Bobbin Size=20.9mmX12.3mmX8.9mm. Phenolic Material, DIP transformer Bobbin. UL REC:94V-0
Switching Power Suppy RM6 Bobbin, 5pin Vertical type
5+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=16.1mmX13mmX11.65mm
RM6 High Frequency Transformer Vertical Bobbin
RM6 ferrite core bobbin, 3+3 Pins vertical RM6 coil bobbin, DIP Bobbin,Pin Pitch=2.55mm,Size=20.9mmX12.3mmX9mm. Phenolic Material, RM6 transformer used for led lighting, UPS, SMPS, computer, main power transformers.
RM6 4+7 Pins High Frequency Transformer Bobbin, Phenolic Material
4+7 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=25.39mmX12.3mmX8.4mm
4 Pins Ferrite Core Vertical RM6 bobbin
4+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Pin Pitch=2.54mm,Size=15.6mmX10mmX9.8mm
Vertical RM6 Transformer Bobbin 3+3 Pins Double Slots Bobbin
3+3 Pins Double Slots Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
Vertical RM6 Switching Power Transformer Bobbin
3+3 Pins DIP Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
RM6 Bobbin for Power Charge High Frequency Transformer
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Double Slots Bobbin,Size=20.5mmX12.1mmX8.7mm
Vertical RM6 High Frequency Ferrite Core Bobbin
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Size=20.5mmX12.2mmX9.1mm
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
