LAN transformer and filter modules for network filter. We design different lan transformers to meet or exceed IEEE 802.3, 10Base-T specifications. Electrical Specifications @ 25°C. Operating temperature 0°C~70°C. Surface mount, IC grade, transfer-molded package withstands 235°C peak temperature profile.
brand:
MCTitem no.:
10BASE-T Isolation Transformershipping port:
ShanghaiWe specialized in manufacturing various lan transformers, our 10BASE-T Isolation transformers are widely ued in apter aards, MAUs, Hubs, and Motherboard applications. Surface mount, IC grade, transfer-molded package withstands 235°C peak temperature profile. If you are looking for customized lan transformers, we can design for you, and we can provide samples for the testing. If you have any requests, welcome to contact us.
Quick Details
|
Part No: 10BASE-T Isolation Transformer |
Brand name: MCT |
|
Electrical Specifications @ 25°C |
Custom made: Available |
|
Meet IEEE 802.3, 10Base-T specifications |
Logo: Can be customized |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, can custom |
|
Operating temperature: 0°C~70°C |
MOQ: Any quantity |
|
Storage temperature: -25 to 125°C |
OEM: Available |
|
Lead time: 25 days after payment |
Shipping: Air, Ship, etc |
Part Information

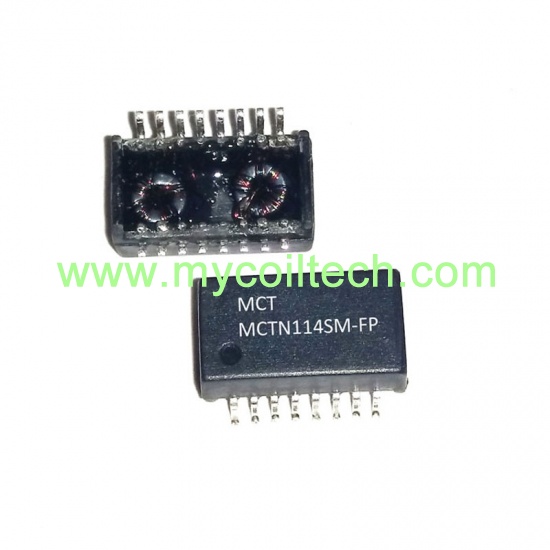

Product Name: 10BASE-T Lan Transformer Surface Mount Isolation Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Adapter Cards, MAUs, Hubs, Motherboard, Lan transformers, SMD and DIP isolated transformers, Common mode chokes for EMI suppression, Surface mount transformers.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
