Customized military EMC filters. High quality components, high performance/cost. Type: single phase. Rated current from 1A to 10A. Test Voltage ( 1min ): Line to Ground: 1500VAC. Line to Line: 1500VDC.
brand:
MCTitem no.:
MCT8MF Military Filtersshipping port:
Shanghai

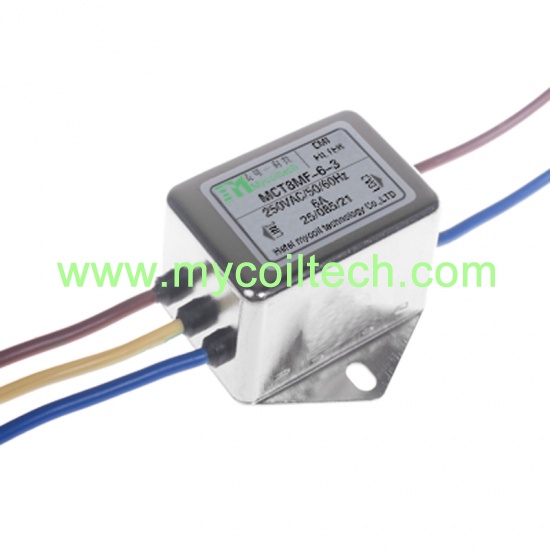

MCT8MF single phase military filters, designs specially for the CE102 conduction launch request in the military equipment through electromagnetic compatibility military symbol GJB 151A/152A. We produce and design various EMI filters, such as PCB mounting EMI filters, IEC EMI filters, household applicance Filters, feed through EMI filters, etc. If you are interested in our products, welcome to contact us.
Quick Details
Part No: MCT8MF Military Filters |
Brand name: MCT |
Rated Voltage: 250VAC |
Custom made: Available |
Rated Current: 1A~10A |
Logo: Can be customized |
Operating Frequency: 50/60HZ |
Packing: Carton, can custom |
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: 250VAC Military Filters Single Phase Military RF Filters
Applications: Single phase power supplies, switch-mode power supplies. Small to medium-sized machines and household equipment. Portable electrical and electronic equipment. Test and measurement equipment. Medical equipment.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
