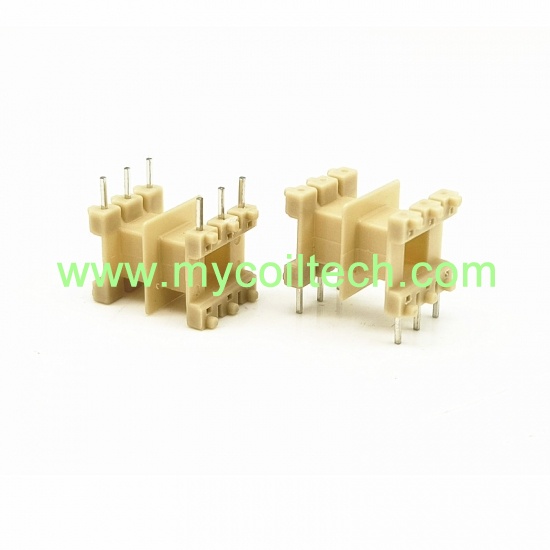

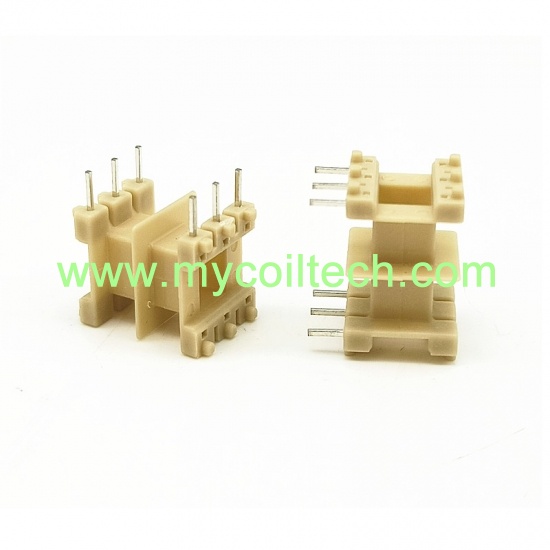

3+3 pins double slots EE20 bobbin. Horizontal EE20 ferrite coils. Bobbin Size=20.0mmX13.6mmX13.6mm. Pin Pitch=5.0mm. Row distance=15.0mm. DIP transformer EE20 bobbin. EE20 electronic transformer mainly used in UPS, DC converters, switching power supply, computers, LED lights, test equipment, measurement and control unit.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE2006shipping port:
ShangHaipayment:
T/T in advance, West Union, PaypalEF20 double slots transformer bobbin, 3+3 pins EE20 coil former with ferrite cores, welcome customized transformer.
Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
