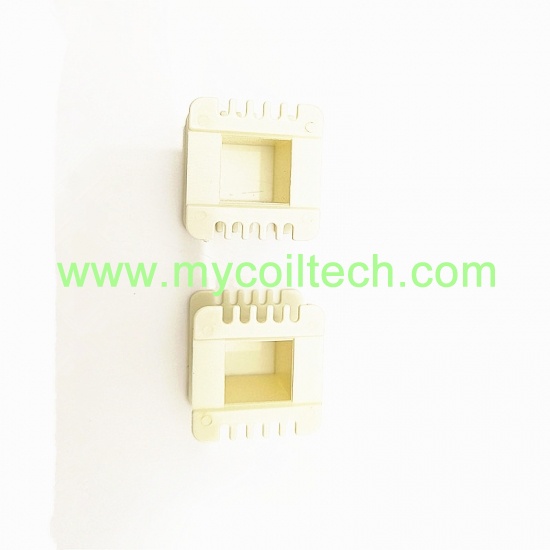

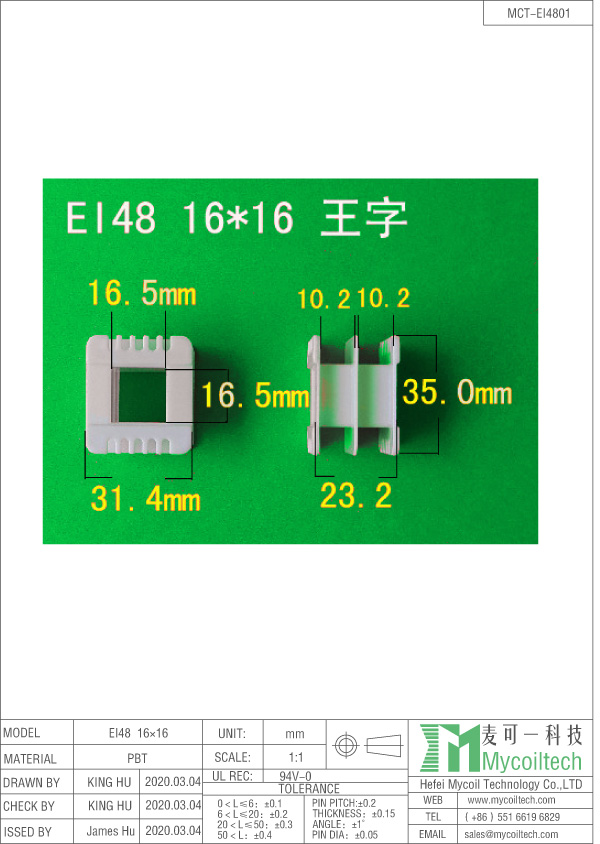

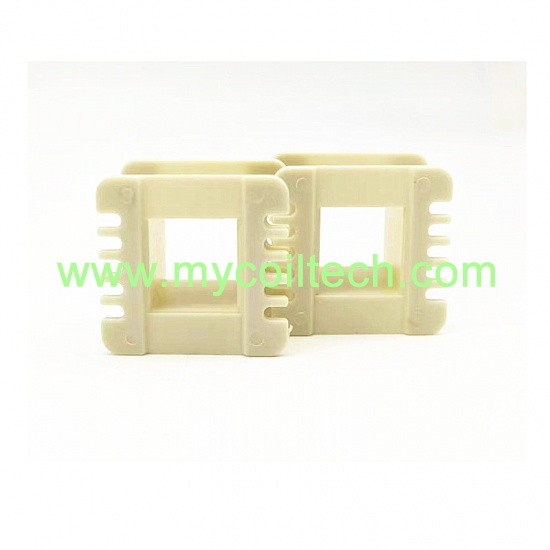

PBT material EI48 bobbin, double slots EI48 core coil former. 16*16 EI48 bobbin size=35.0mmX31.4mmX23.2mm. We can make new EI48 bobbin tooling to meet size requirement, supply EI48 cores, welcome customized low frequency transformers, audio frequency transformers.
brand:
MCTitem no.:
MCT-EI4801shipping port:
Shanghaipayment:
T/T in advance; PayPalEI48/16 horizontal double slots bobbin, EI48 lamination core bobbin, samples can be sent for testing.
Product Specification
Welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
Double Slots EI13 Transformer Vertical Bobbin Penolic Material
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=8.5mm Size=12.4mmX12.3mmX11.4mm
EI13 Transformer Bobbin Vertical Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX12.5mmX10.7mm
Double Slots EI13 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.5mm Size=12.3mmX12.5mmX11mm
5+5 Pins EI13 Transformer Bobbin Phenolic Material Dip Type
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.5mm Size=13.3mmX12.2mmX12mm
EI13 Transformer Bobbin Double Slots 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.5mm Size=13.3mmX12.2mmX12mm
Double Slots EI13 Transformer Bobbin Phenolic Material
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=16mmX12.7mmX10.8mm
5+5 Pins EI13 Transformer Bobbin Vertical Bobbin Dip Type
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=16mmX12.7mmX10.8mm
5+5 Pins EI13 Transformer Bobbin Phenolic Material
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.8mm Size=13mmX12.5mmX13mm
Double Slots EI13 Transformer Bobbin 5+5 Pins Vertical type
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.8mm Size=12.5mmX12.5mmX13mm
EI13 Transformer Bobbin 3+3 Pins With Double Slots
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=5mm, Parallel Distance=8.5mm Size=12.4mmX12.4mmX12.1mm
Double Slots EI13 Transformer Bobbin 3+3 Pins Dip Bobbin
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=5mm, Parallel Distance=8.5mm Size=12.4mmX12.4mmX11.5mm
EI13 Transformer Bobbin Vertical Bobbin 3+3 Pins
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=5mm, Parallel Distance=8.5mm Size=12.4mmX12.2mmX11.9mm
