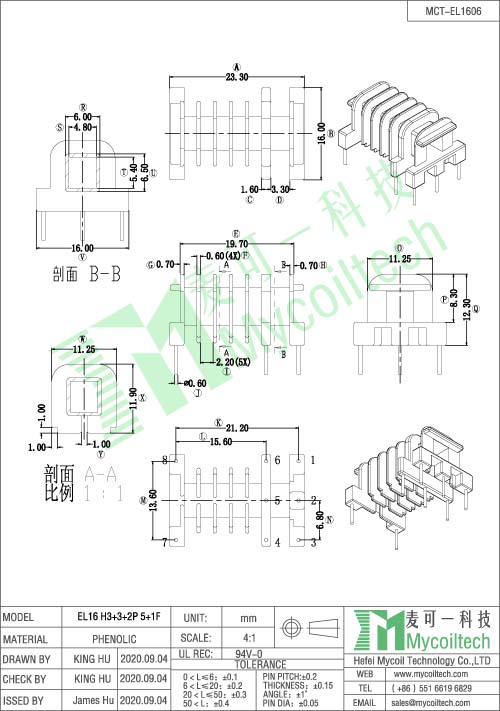

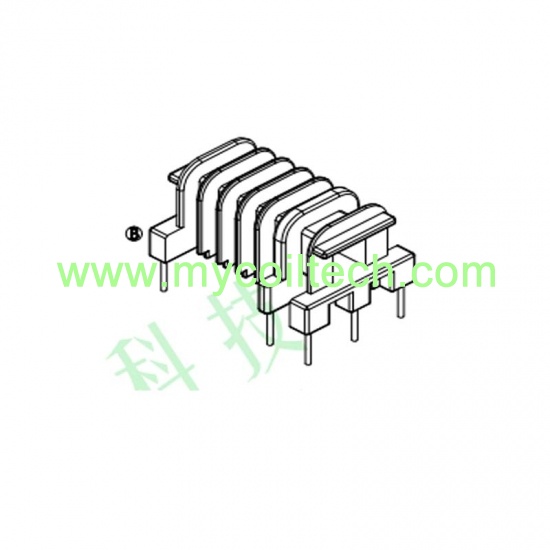

EL16 horizontal coil former, 3+3+2pins six slots EL16 bobbin. Bobbin Size=23.3mmx16.0mmx12.3mm. Pin Pitch1=6.8mm.Pin Pitch2=13.6mm. Parallel Distance=15.6mm. Phenolic material EL16 horizontal transformer bobbin, accept new bobbin tooling.
brand:
MCTitem no.:
MCT-EL1606shipping port:
ShangHaipayment:
T/T in advanceEL16 3+3+2 pins horizontal bobbin with six grooves, supply EEL16 ferrite cores.
Product Specification
Welcome for customized transformers:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EL16 Horizontal Coil Former 6+6 Pins
EL16 ferrite transformer, 6+6 pins horizontal EL16 bobbin, through hole transformer bobbin. Parallel Distance=15.6mm.Bobbin Size=28.3mmx16.8mmx15.1mm. Pin Pitch1=5.4mm. Pin Pitch2=2.4mm. Phenolic material EL16 transformer frame, we make new bobbin tooling to meet special bobbin size requirement.
EL12 Phenoilic Transformer Bobbin
1+1 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=17.7mm Size=19.4mmX9.4mmX9.4mm
EL16 Vertical Transformer Bobbin Phenolic Material With 4+6 Pins
4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=12mm Size=17.8mmx16mmx26.6mm
EL16 Mn-Zn Ferrite Core Transformer Bobbin
4+6 pins vertical EL16 bobbin, high frequency EL16 bobbin. Bobbin Size=18mmx16.2mmx26.2mm. Pin Pitch=3.5mm. Parallel Distance=12mm. Phenolic material EL16 former. UL REC:94V-0
Dip Bobbin EL16 Vertical Transformer Bobbin With 4+6 Pins
4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=12.2mm Size=18mmx16.2mmx29.9mm
4+6 Pins EL16 Vertical Transformer Bobbin Dip Bobbin
4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=12.2mm Size=18mmx16.2mmx29.9mm
EL16 Vertical Transformer Bobbin Phenolic Material Dip Bobbin
4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.7mm Parallel Distance=12.2mm Size=15.5mmx11.5mmx29.8mm
EL19 Vertical High Frequency Transformer Bobbin 4+6 Pin Coil Former
4+6 pin EL19 transformer bobbin. Vertical type bobbin. Parallel distance=12mm. Pin Pitch1=2.7mm. Pin Pitch2=3.5mm. Dip bobbin. Bobbin Size=17.7mmX15.9mmX29.2mm. UL REC: 94V-0
Single Slot EL19 4+6 Pins Transformer Bobbin
EL19 vertical 4+6 pins bobbin, EL19 ferrite core bobbin. Parallel distance=12.0mm. Pin Pitch1=2.7mm. Pin Pitch2=3.5mm. Dip transformer bobbin. Bobbin Size=17.9mmX15.8mmX29.35mm. Phenolic material EL19 bobbin, we can make new tooling to meet size requirement.
5+5 Pin Single Slot EL19 High Frequency Bobbin Vertical Winding Bobbin
EL19 5+5 pin transformer bobbin. Vertical type transformer bobbin. Parallel distance=12mm. Pin Pitch=4mm. Phenolic bobbin. Dip bobbin. Bobbin Size=22.5mmX15.8mmX29.2mm. UL REC: 94V-0
EL19 4+6 Pin Transformer Bobbin Vertical Type Single Slot Coil Bobbin
EL19 vertical coil former. 4+6 pin transformer bobbin. Phenolic material transformer bobbin. Parallel distance=10.9mm. Pin Pitch1=3.5mm. Pin Pitch2=3.5mm. Dip bobbin. Bobbin Size=17.8mmX16.3mmX29.3mm. UL REC: 94V-0
EL19 High Voltage Transformer 4+6 Pins
EEL19 ferrite cores. 4+6 pins vertical bobbin for EL19 transformer. Parallel distance=12.0mm. Pin Pitch1=2.8mm. Pin Pitch2=3.45mm. Dip bobbin. Bobbin Size=17.8mmX16.3mmX20.9mm. Manufacture final EL19 electronic transformer.
