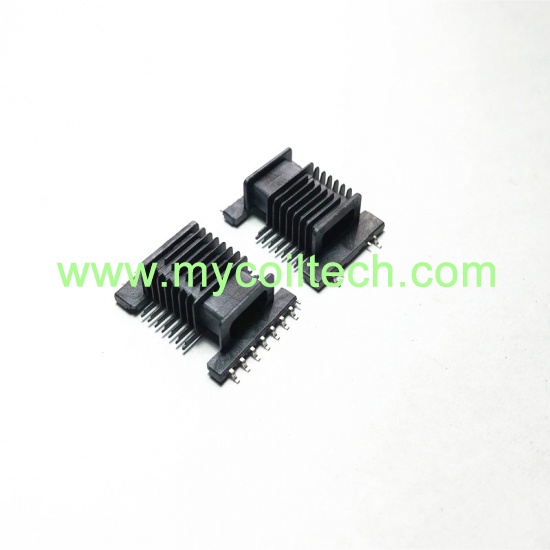

EM15 High Frequency Flyback Transformer SMD Bobbin

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Size=19.6mmX16mmX8.9mm

EL16 ferrite transformer, 6+6 pins horizontal EL16 bobbin, through hole transformer bobbin. Parallel Distance=15.6mm.Bobbin Size=28.3mmx16.8mmx15.1mm. Pin Pitch1=5.4mm. Pin Pitch2=2.4mm. Phenolic material EL16 transformer frame, we make new bobbin tooling to meet special bobbin size requirement.

EEL22 switcing transformer. Vertical 5+5 pin EEL22 bobbin. Bobbin size=22.1mmX16.0mmX30.0mm. Pin pitch=4.0mm. Parallel Distance=15.0mm. EEL22 transformer mainly used in communication power supply,SMPS, UPS power supply and other electronic equipment.

Encapsulated common mode choke coil filters, has high current, low temperature rise, low power consumption. Mainly used in electronic devices EMI radiated noise suppression, PC USB interface cable for PC and peripheral, 1394 lines, DVC, set-top boxes, LCD panels, low-voltage differential signaling (LVDS).

Electronic transformer clips ETD29. Used for horizontal/vertical ETD29 transformer bobbin. Clips Material: stainless steel material clips. Clips Size=34.5mmX8mmX8.5mm. UL REC:94V-0. Accept custom design.

4+4 pins horizontal bobbin, high power transformer manufacture. Pin Pitch=3.8mm Parallel Distance=17.8mm. Bobbin Size=21.6mmX17.8mmX11.05mm. Phenolic material transformer bobbin,UL REC:94V-0

4+4 pin horizontal EE16 bobbin, flyback transformer frame. Bobbin size=17.7mmX21.0mmX13.5mm. Row distance=17.78mm. Pin pitch=3.81mm. EE16 electronic transformer widely used in power supply, UPS, computer equipment, medical equipments, computers, switching power supplies, communication equipments, power components, vehicle electronic equipments.

Bakelite bobbin EF25 for transformer. Two slot horizontal bobbin. Bobbin Size=20.4mmX18.4mmX22.4mm. Pin pitch=14.0mm. Parallel Distance=15.0mm. Phenolic material bobbin. DIP transformer bobbin.

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.25mm Parallel Distance=10.5mm Size=16mmx13mmx15mm

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=15.9mm Size=15.9mmX8.5mmX10.7mm

14 pins phenolic ERL type bobbin. Vertical transformer bobbin. Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=35mmX28.1mmX41mm. Accept make bobbin tooling.
