brand:
MCTitem no.:

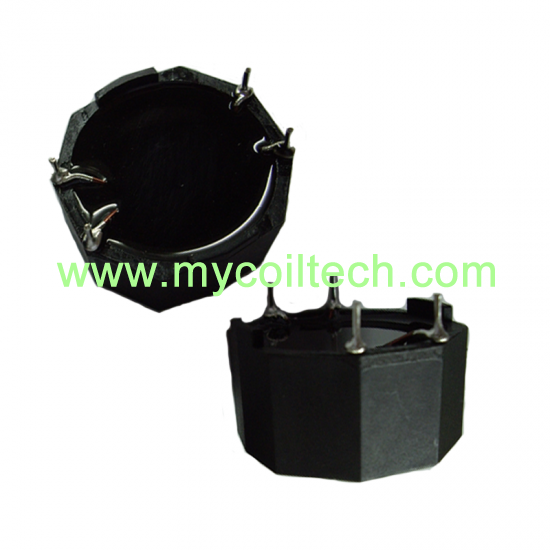

MCT Case Potting H31C Series Common Mode Choke Standard Windingshipping port:
ShanghaiWe have a research team consists of five engineers engineering and technical personnel, if you have encapsulated mode chokes projects, you can send specification to us, we can quickly make encapsulated mode choke inductor samples, if you need design new common mode chokes, our engineers can design for you. So we can help you to complete the sample machine test at the first time.
Quick Details
|
Part Number: MCT Case Potting H31C Series Common Mode Choke |
|
Brand name: MCT |
|
Type: Choke Inductor |
|
Custom made: Available |
|
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
|
Operating temperature:-40°C~+105°C. |
|
Shipping: Air, Ship, etc |
|
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
|
Lead time: 25 days after payment |
|
OEM: Available |
Part Information
Product Name: Encapsulated Common Mode Choke Coils for High Frequency EMI Suppresion
Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

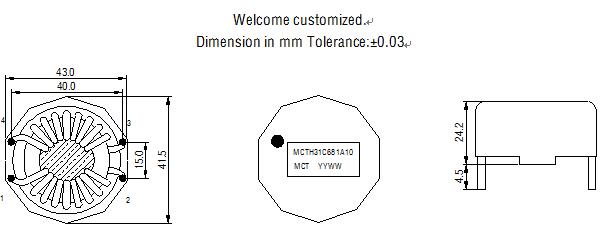

Product Specification
Typical electrical parameter
|
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
|
MCTH31C681A10 |
68.0 |
0.80 |
1.0 |
|
MCTH31C561A15 |
56.0 |
0.50 |
1.5 |
|
MCTH31C391A20 |
39.0 |
0.30 |
2.0 |
|
MCTH31C181A30 |
18.0 |
0.15 |
3.0 |
|
MCTH31C101A40 |
10.0 |
0.10 |
4.0 |
|
MCTH31C680A50 |
6.80 |
0.06 |
5.0 |
|
MCTH31C390A60 |
3.90 |
0.04 |
6.0 |
|
MCTH31C270A80 |
2.70 |
0.022 |
8.0 |
|
MCTH31C010AA0 |
1.80 |
0.015 |
10.0 |
|
MCTH31C010AD0 |
1.00 |
0.008 |
13.0 |
We can decign it. If you have any requests, please contact us, we will give you fast reply
