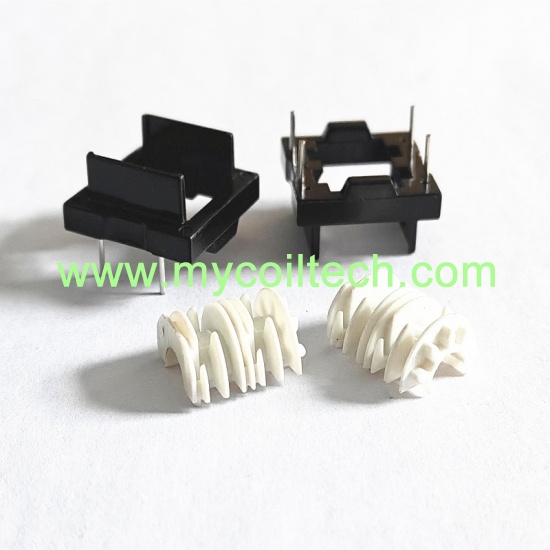

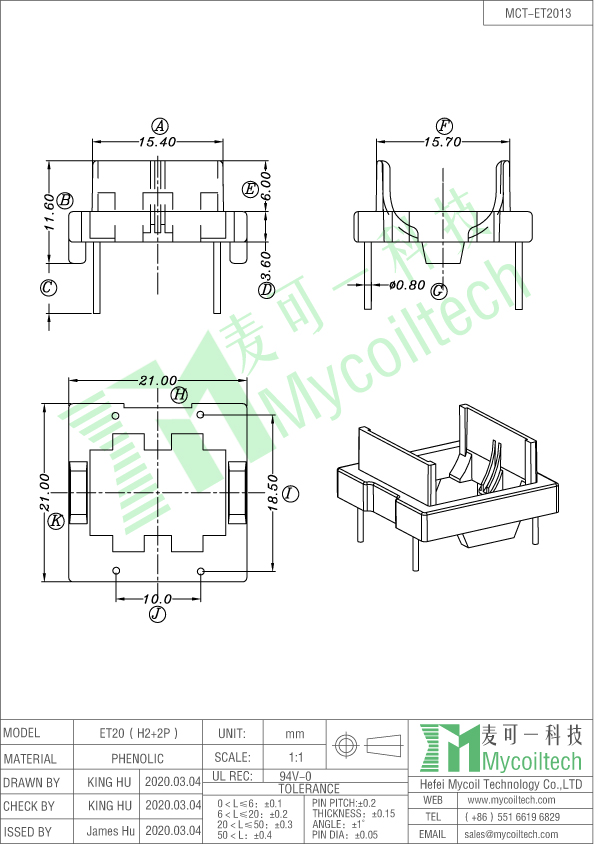

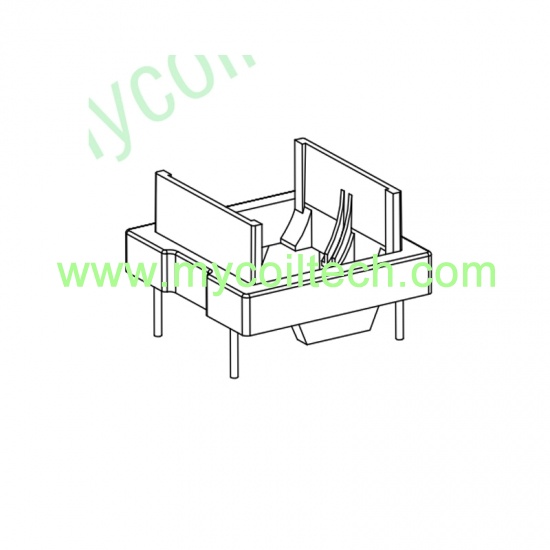

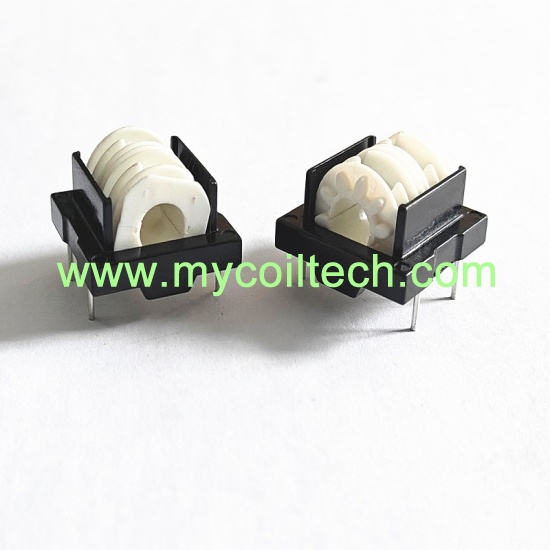

2+2 pins ET20 horizontal inductor base, phenolic material base for ET20 filter. Base Size=21.0mmX21.0mmX11.6mm. Parallel Distance=18.5mm. Pin Distance=10.0mm. We manufacture final ET20 filter inductor, accept custom made transformers.
brand:
MCTitem no.:
MCT-ET2013shipping port:
Shanghaipayment:
T/T in advancePhenolic material ET20 horizontal base, 2+2 pins header plate, samples can be sent for testing.
Product Specification
If you are interested in our items, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
ET24 Common Mode Choke Bobbin With Four Slots
ET24 power inductor bobbin. 2+2 pins choke coil bobbin. ET28 vertical type coil former. ET/UT24 four slots bobbin. We can make tooling to meet different dimensions. Bobbin Size=17.0mmX17mmX18.8mm. UL REC: 94V-0
UT19 Bobbin Cover for Common Mode Choke Coils FBT Material Cover
UT/ET19 transformer bobbin cover for coil inductors. FBT material cover, we can make tooling to meet different dimensions. UL REC: 94V-0
ET20 High Frequency Transformer Bobbin Four Slots UT20 Bobbin
ET20 electronic transformer bobbin. ET/UT20 four section bobbin output transistors. Size=15.6mmX11.5mmX7.9mm. PBT material transformer bobbin. We can make tooling to meet different dimensions. UL REC: 94V-0
Double Slot ET20 Transformer Bobbin for Common Mode Choke Coil
ET20 filter inductor bobbin. ET/UT20 two section bobbin output transistors. Size=15.6mmX11.5mmX7.9mm. PBT material transformer bobbin. We can make tooling to meet different dimensions. UL REC: 94V-0
ET20 Common Mode Choke Bobbin Four Slots Coil Bobbin
ET20 high frequency transformer bobbin. ET/UT20 four section bobbin. Size=15.4mmX15mmX7.5mm. Phenolic material ET/UT series transformer bobbins. We can make tooling to meet different dimensions. UL REC: 94V-0
ET20 Power Line Filter Inductor Bobbin Four Slots ET Bobbin
Four slots ET20 coil bobbin. ET/UT20 PBT material bobbin. Bobbin Size=15.65mmX13.9mmX6.95mm. We can make tooling to meet different dimensions. UL REC: 94V-0
Four Slots ET20 Phenolic Bobbin For PCB Mount Transformer
ET20 four slots transformer bobbin. High frequency and good performance. Size=15.6mmX12.5mmX7.8mm. Phenolic material ET/UT bobbin. We can make tooling to meet different dimensions. UL REC: 94V-0
Filter Inductor Bobbin ET20 Four Slots Transformer Bobbin
ET20 high frequency coil former. ET/UT20 PBT material bobbin. Bobbin Size=15.65mmX11.3mmX6mm. We can make tooling to meet different dimensions. UL REC: 94V-0
ET28 Single Slot Vertical Transformer Bobbin 4+4 Pins
ET28 4+4 pins high frequency bobbin. Vertical ET28 coil former. Bobbin Size=34.7mmX29.2mmX29.2mm. ET/UT28phenolic material bobbin.We can make tooling to meet different dimensions. UL REC: 94V-0
ET28 Four Slots Transformer Bobbin For Inductor Base
ET28 no pins transformer bobbin. ET28 vertical/horizontal type coil former. ET/UT28phenolic material bobbin. We can make tooling to meet different dimensions. Bobbin Size=21.6mmX16mmX6.9mm. UL REC: 94V-0
ET28 Double Slots Transformer Ferrite Core Bobbin
ET28 double slots bobbin. ET28 vertical/horizontal type coil former. ET/UT28 phenolic material bobbin. We can make tooling to meet different dimensions. Bobbin Size=21.6mmX16mmX6.9mm. UL REC: 94V-0
ET20 Vertical 2+2 Pins Inductor Base For Transformer
ET20 vertical coil bobbin base. 2+2 pins ET20 coil former. Base Size=21mmX16mmX15.5mm. Pin pitch=13mm. ET/UT20 phenolic material bobbin base. We can make tooling to meet different dimensions. UL REC: 94V-0
