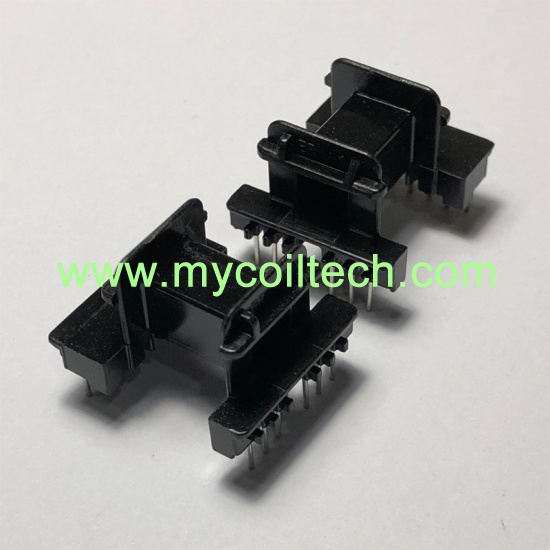

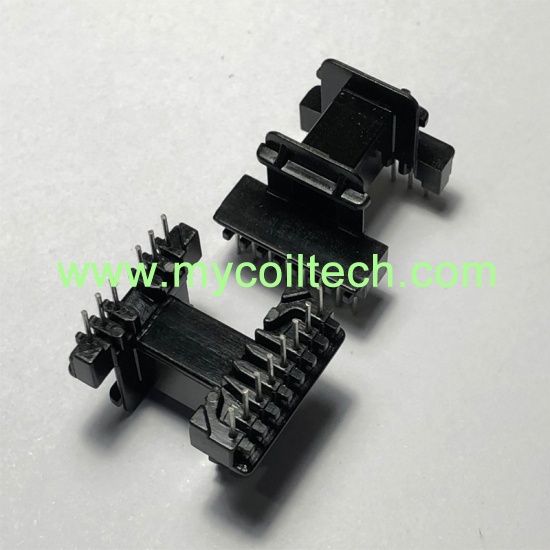

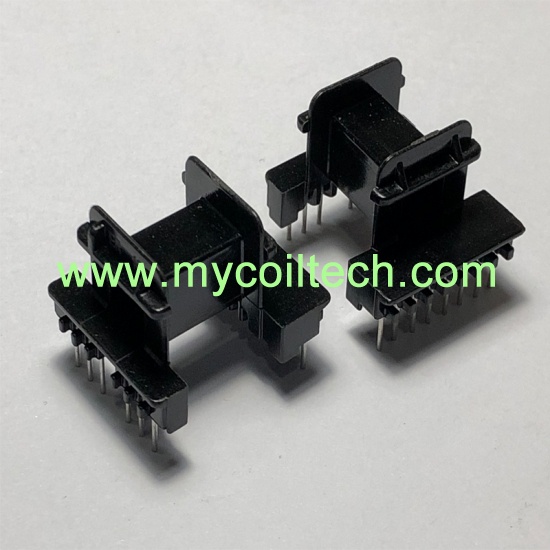

EE20 6+8 pin horizontal bobbin. EE20 phenolic coil former. Bobbin Pin Pitch1=5mm. Bobbin Pin Pitch2=2.5mm. DIP transformer bobbin. Parallel Distance=20mm. Bobbin Size=24.8mmX20.9mmX15.4mm. UL REC:94V-0.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE2004(H6+8P)shipping port:
ShangHaipayment:
T/T in advanceprice range:
1000-5000/0.089$Bobbin factory new designing high frequency transformer bobbin EE20, horizontal type bobbin 6+8 pin. We accept custom design and OEM service, small order also acceptable.
Quick Details
|
PN: MCT-EE2004(H6+8P)
|
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: High Frequency EE20 Bakelite Bobbin For Switch Mode Transformer
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Applications: switching power supply transformers, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Specification
More details, welcome to contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
