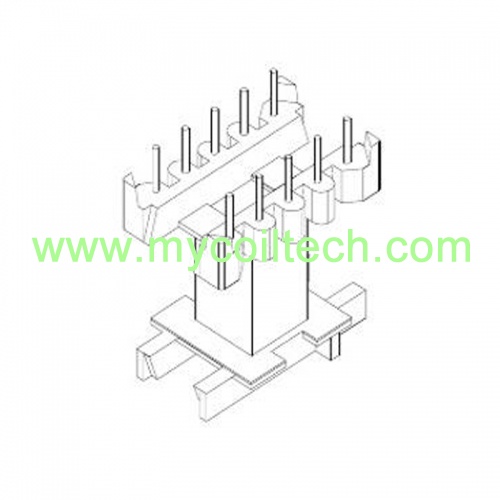

  • 6+6 Pins EF30 Vertical Bobbin
    EF30 Power Transformer Vertical Bobbin 6+6 Pin

    EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.

  • PQ50 Electronic Transformer Bobbin
    PQ50 Vertical High Frequency Transformer 6+6 Pin Bobbin

    6+6 pins PQ50 coil former. PQ phenolic material bobbin. Bobbin Seize=51.5mmX50.8mmX51.5mm. Parallel Distance=45.65mm. PQ50 Vertical bobbin for power transformer. Make bobbin tooling.

  • Electronic Impedance Matching and Maximum Power Transformers
    High Frequency Matching Transformer for Switching Power Supplies

    High Frequency Electronic Matching Transformers are intended for measuring electric signal voltages or currents which contain useful data. They match the signal source with the load ensuring the minimum signal distortion. Along with active components (such as transistors and lamps) they are included into devices amplifying electric oscillations that work within a wide frequency band.

  • MCTLA Series High Current DIP Type Inductor
    High Current DIP Type Inductor High Frequency Power Inductor

    DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)

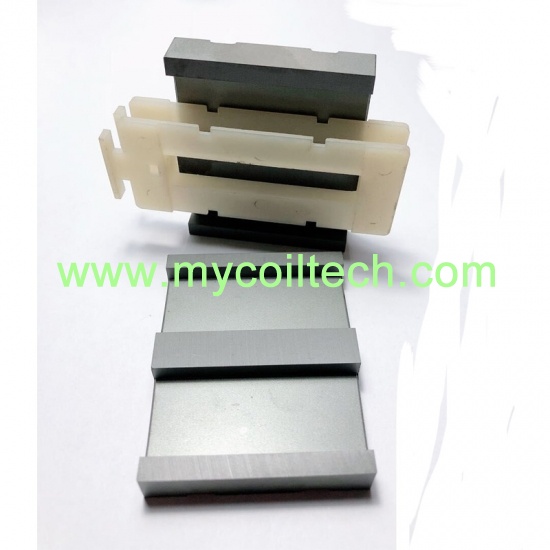

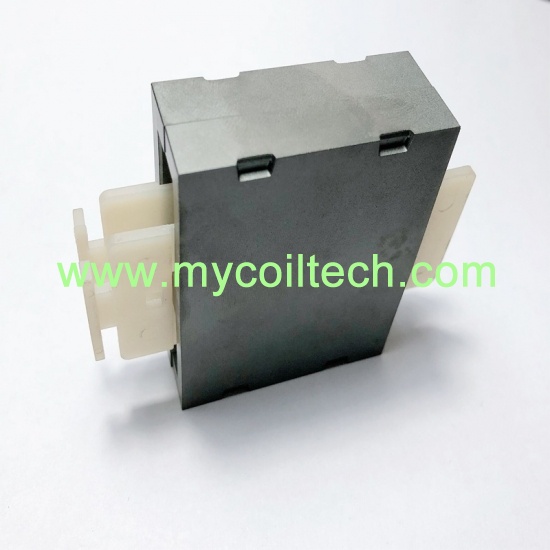

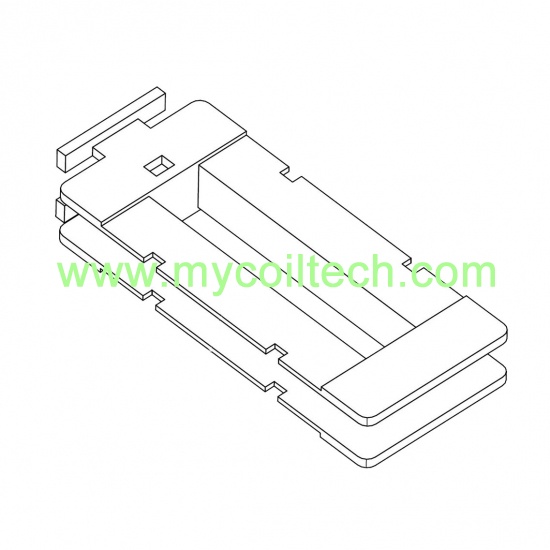

PEE64 Transformer Bobbin Used For Planar Transformer

PEE64 flyback transformer bobbin, no pin PEE type bobbin made of PA66 Material, we have bobbin tooling to meet customers's requirement. Bobbin Size=79mmX32mmX15.8mm.

  • brand:

    MCT
  • item no.:

    MCT-PEE6401
  • shipping port:

    Shanghai
  • payment:

    T/T in advance
contact now download
product description

MCT new design PEE64 transformer bobbin, accept small order, any requests please contact us!!



Quick Details

Part No: MCT-PEE6401

Brand Name: MCT

Material: PA66

Color: Milk White

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: PEE64 Transformer Bobbin Used For Planar Transformer.

Products Range: Transformers,Inductors,Bobbins,Ferrite cores.

Applications:High frequency transformer, SMPS ttransformer,flaback transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

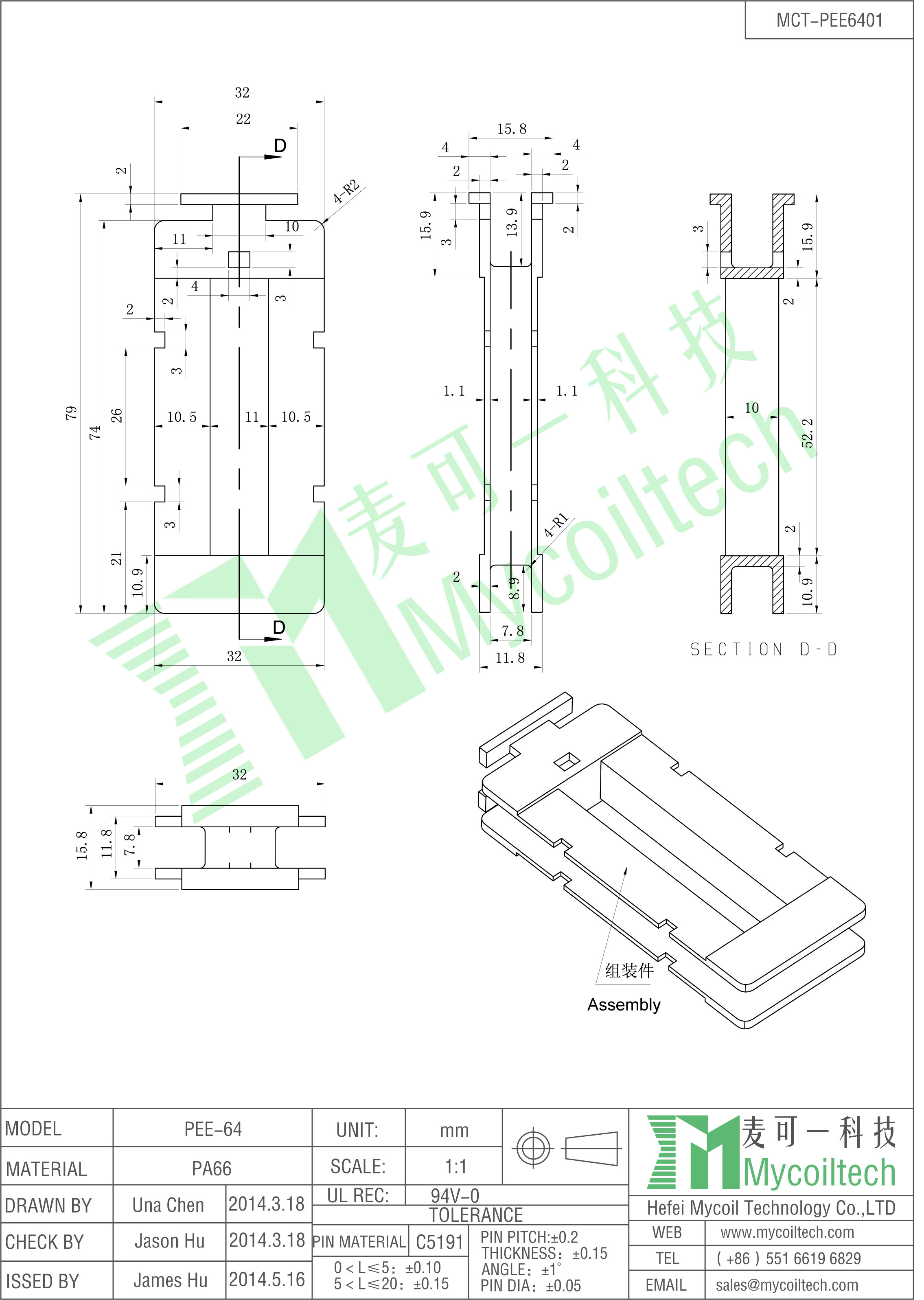

Product Specification

PEE64 transformer bobbin manufacture


We manufacture final transformer, welcome customized designs.
