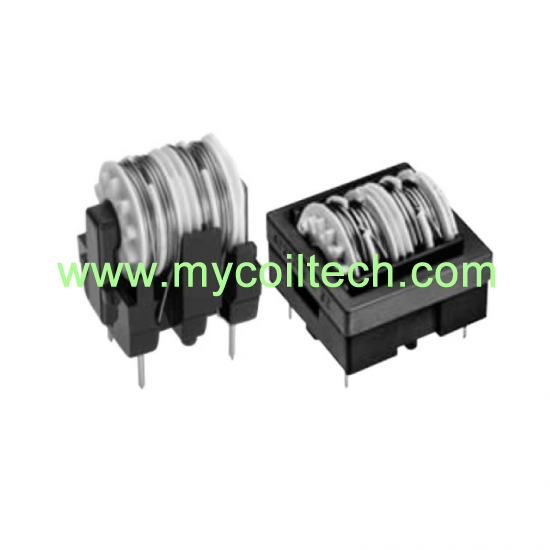

ET20 high current common mode inductor has light weight, easy to round and , low magnetic leakage flux, high reliability, windings balanced within 1%.
brand:
MCTitem no.:
ET20 Series Common Mode Chokeshipping port:
Shanghai PortET20 Common mode chokes are widely used in computer switching power supply filter common mode electromagnetic interference(EMI) signal. In the board design, ET20 common mode choke inductor is also plays the role of EMI filtering, for suppressing the generation of electromagnetic waves generated by high-speed signal lines.
Hefei Mycoil Technology Co., LTD is professional manufacture in designing, producing and selling electronic transformers, choke coils and full range of SMD power inductors. All common mode choke coils we shipped, are all meet customers requirement strictly. We offer OEM services on all our product lines. Design and manufacture of new models are also available. We accept OEM projects and customer designs and can source products and services for you.
Quick Details
Part No: ET20 Series Common Mode Choke |
|
Brand name: MCT |
Working frequency range:20kHz-500kHz |
|
Custom made: Available |
Operating temperature range: -40℃~+125℃ |
|
Logo: Can be customized |
Storage temperature: +85℃~-25℃ |
|
Packing: Carton,can custom |
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
Inductance range: 0.6mH~33.0mH |
|
OEM: Available |
Rated current:0.3~3 50Hz(A) |
|
Shipping: Air, Ship, etc |
DC resistance: 0.06Ω~3Ω @25°C |
|
MOQ: Any quantity |
Shape type: horizontal, vertical |
|
Lead time: 25 days after payment |
Part Information
Product Name: ET20 10mH Power Line Filtering Inductor Common Mode Choke
Applications: Switching power supply, Lighting equipment, Data transmission, Wind generators, Frequency Converter.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.

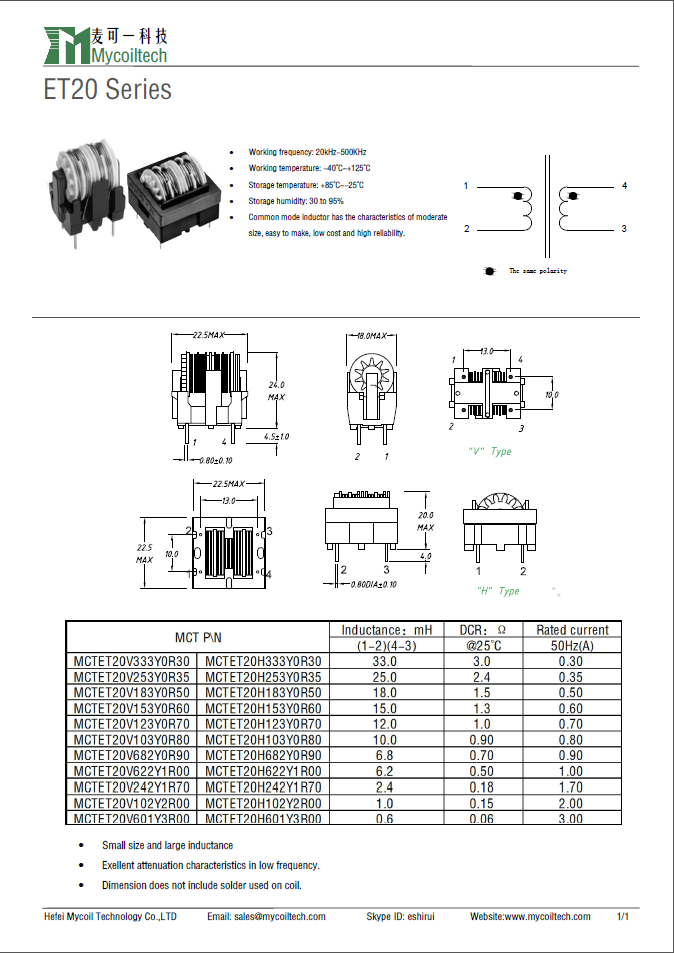

Product Specification
