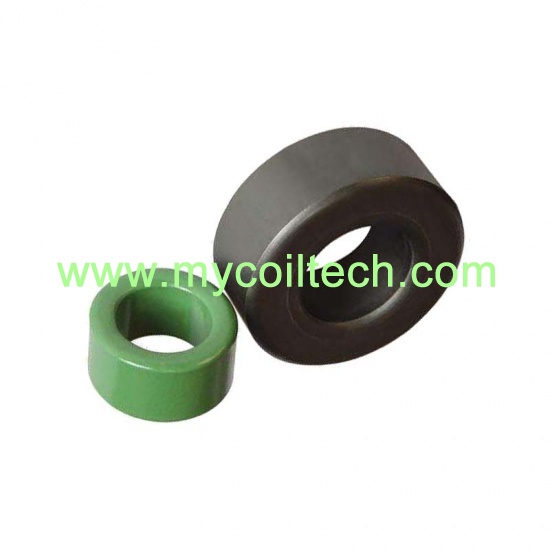

Magnetic Ferrite Toroidal Cores for Transformers and Choke Coils

Magnetic ferrite toroidal cores for transformers, inductors,sensors, motors,rotors, wind generators, magnetic holder, filters automobiles. Low noise, low magnetizing current.

  • brand:

    MCT
  • item no.:

    Magnetic Ferrite Toroidal Cores
  • shipping port:

    Shanghai
contact now
product description

Quick Details

Part Number: Magnetic Ferrite Toroidal Cores

Brand Name: MCT

Material: Mn-Zn/MP4/M5P /M7P/M10P

Logo: Can be customized

Shape of Ferrite Core: Toroidal

OEM: Available

Features: High intrinsic coercive force, Max continuous working temp

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: Magnetic Ferrite Toroidal Cores for Transformers and Choke Coils

Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Product Applications: High frequency switching power transformers. Coupled inductors and transformers,
RF circuits, EC power supply chokes, motors dimmer control filters Matching transformer. Filter transformer. Toroidal inductors.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.



Product Details

            High Quality Toroidal Ferrite Core manufacturer


TYPE

Dimension:mm

Weight: g

D1

D2

H

T2.54×1.27×1.27

2.54±0.2

1.27±0.15

1.27±0.25

0.03

T3.05×1.27×1.27

3.05±0.25

1.27±0.15

1.27±0.15

0.04

T3.05×1.78×1.52

3.05±0.25

1.78±0.2

1.52±0.15

0.05

T3.05×1.78×1.27

3.05±0.25

1.78±0.2

1.27±0.15

0.04

T3.5×1.78×1.78

3.50±0.25

1.78±0.2

1.78±0.2

0.05

T3.94×2.24×1.27

3.94±0.3

2.24±0.2

1.27±0.15

0.05

T3.94×2.24×2.54

3.94±0.3

2.24±0.2

2.54±0.2

0.10

T3.94×1.78×1.78

3.94±0.3

1.78±0.2

1.78±0.2

0.05

T4×2×1

4.0±0.3

2.0±0.2

1.0±0.1

0.06

T4×2×2

4.0±0.3

2.0±0.2

2.0±0.1

0.09

T5×3×2

5.0±0.3

3.0±0.2

2.0±0.2

0.14

T6×3×2

6.0±0.3

3.0±0.2

2.0±0.2

0.21

T6×3×3

6.0±0.3

3.0±0.2

3.0±0.3

0.32

T8×4×3

8.0±0.3

4.0±0.3

3.0±0.2

0.56

T9×5×3

9.0±0.3

5.0±0.3

3.0±0.2

0.60

T10×6×3

10.0±0.3

6.0±0.3

3.0±0.2

0.90

T10×6×5

10.0±0.31

6.0±0.3

5.0±0.3

1.27

T12×6×4

12.0±0.4

6.0±0.3

4.0±0.2

1.51

T12.7×7.8×5

12.7±0.4

7.8±0.3

5.0±0.3

1.75

T12.7×7.14×4.77

12.7±0.4

7.14±0.3

4.77±0.3

1.90

T12.7×7.14×6.35

12.7±0.4

7.14±0.3

6.35±0.3

2.70

T12.7×7.92×6.35

14.0±0.4

7.92±0.3

6.35±0.3

2.16

T14×8×7

14.0±0.4

8.0±0.3

7.0±0.3

3.75


TYPE

Effective parameter

ALnH/N2)(AL±20%

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

T2.54×1.27×1.27

0.075

5.531

4.268

440

880

1320

1761

T3.05×1.27×1.27

1.037

5.99

6.211

570

1112

1668

2224

T3.05×1.78×1.52

0.945

7.226

6.826

420

821

1232

1643

T3.05×1.78×1.27

1.035

7.226

5.688

320

685

1027

1369

T3.5×1.78×1.78

1.433

7.62

10.919

570

1168

1752

2336

T3.94×2.24×1.27

1.052

9.196

9.677

360

719

1078

1438

T3.94×2.24×2.52

2.105

9.196

19.353

720

1438

2157

2876

T3.94×1.78×1.78

1.822

8.09

14.75

680

1413

2120

2827

T4×2×1

1.0

9.06

9.06

330

690

970

1400

T4×2×2

1.3

9.06

11.8

430

900

1260

1800

T5×3×2

2.0

12.3

24.6

470

1000

1400

2000

T6×3×2

3.0

14.1

42.4

660

1400

1950

2800

T6×3×3

6.0

14.1

84.6

1000

2800

3900

5600

T8×4×3

4.5

20.4

91.9

1030

2070

2910

4150

T9×5×3

6.1

22.0

134

850

1800

2500

3500

T10×6×3

6.1

25.1

153

740

1550

2150

3050

T10×6×5

10.2

25.1

256

1200

2600

3600

5100

T12×6×4

12.0

27.2

326

1300

2800

3900

5600

T12.7×7.8×5

14.7

31.6

464

1200

2400

3400

4900

T12.7×7.14×4.77

12.9

29.5

381

1300

2750

3850

5500

T12.7×7.14×6.35

17.2

29.5

507

1800

3700

5100

7300

T12.7×7.92×6.35

14.9

31.2

465

1440

3000

4200

6000

T14×8×7

20.5

32.8

671

1900

3900

5500

7800


TYPE

Dimension:mm

Weight: g

D1

D2

H



T14×9×5

14.0±0.4

9.0±0.3

5.0±0.3

2.27

T16×8×5

16.0±0.4

8.0±0.3

5.0±0.3

3.55

T16×9.5×5

16.0±0.4

9.5±0.3

5.0±0.3

3.12

T16×12×8

16.0±0.3

12.0±0.3

8.0±0.3

3.35

T16×9.5×8

16.0±0.4

9.5±0.3

8.0±0.3

3.95

T16×8×8

16.0±0.4

8.0±0.3

8.0±0.3

4.85

T17×10×8

17.0±0.4

10.0±0.3

8.0±0.3

5.35

T17×10×6.35

17.0±0.4

10.0±0.3

6.35±0.3

4.88

T17.5×12×8

17.5±0.4

12.0±0.3

8.0±0.3

4.50

T17.5×9.5×8

17.5±0.4

9.5±0.3

8.0±0.3

6.15

T18×10×10

18.0±0.3

10.0±0.3

10.0±0.3

8.77

T18×10×6.35

18.0±0.4

10.0±0.3

6.35±0.3

6.10

T18×10×8

18.0±0.4

10.0±0.3

8.0±0.3

6.55

T18×10×12.7

18.0±0.4

10.0±0.3

12.7±0.3

9.25

T20×10×10

20.0±0.4

10.0±0.3

10.0±0.3

10.20

T20×12×6.35

20.0±0.4

12.0±0.4

6.35±0.3

5.80

T20×12×8

20.0±0.4

12.0±0.4

8.0±0.3

7.60

T20×12×10

20.0±0.4

12.0±0.4

10.0±0.3

9.50

T20×12×12.7

20.0±0.4

12.0±0.4

12.7±0.4

11.52

T21.5×13.5×6.35

21.45±0.4

13.55±0.4

6.35±0.3

6.32

T22.1×13.7×6.4

22.1±0.4

13.7±0.4

6.4±0.3

6.82

T22×14×6.5

22.0±0.4

14.0±0.4

6.5±0.3

6.82

T22×14×8

22.0±0.4

14.0±0.4

8.0±0.3

8.72


TYPE

Effective parameter

ALnH/N2)(AL±20%

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

T14×9×5

12.5

36

452

1060

2200

3100

4400

T16×8×5

20.0

36.2

724

1660

3500

4850

6900

T16×9.5×5

16.3

40

653

1250

2600

3650

5200

T16×12×8

15.9

43.4

689

1100

2300

3200

4600

T16×9.5×8

26.0

39.2

1019

2000

4200

5850

8350

T16×8×8

32.0

36.2

1158

2700

5500

7750

11100

T17×10×8

28.0

41.4

1159

1200

4200

5900

8500

T17×10×6.35

22.2

41.4

919

940

3400

4700

6700

T17.5×12×8

22.0

45.8

1008

1450

3000

4200

6050

T17.5×9.5×8

32

42

1357

2350

4900

6850

9800

T18×10×10

38.9

41.5

1610

2800

5900

8200

11800

T18×10×6.35

24.7

41.5

1020

1800

3750

5200

7500

T18×10×8

31.1

41.5

1290

2300

4700

6600

9400

T18×10×12.7

49.4

41.5

2040

3600

7500

10500

14900

T20×10×10

48

48.1

2092

2200

660

9250

14000

T20×12×6.35

24.8

48.1

1190

1500

3250

4550

6500

T20×12×8

31.3

48.1

1505

2000

4100

700

8200

T20×12×10

39.1

48.1

1880

2450

5100

7150

10200

T20×12×12.7

49.7

48.1

2390

3100

6500

9100

13000

T21.5×13.5×6.35

24.7

53.1

1310

1400

2900

4100

5800

T22.1×13.7×6.4

26.4

54.1

1430

1500

3050

4300

6100

T22×14×6.5

25.6

54.7

1400

1400

2950

4100

5900

T22×14×8

31.4

54.7

1720

1700

3600

5050

7200


TYPE

Dimension:mm

Weight: g

D1

D2

H



T22×14×10

22.0±0.4

14.0±0.4

10.0±0.3

10.84

T22×13.7×6.35

22.0±0.4

13.7±0.4

6.35±0.3

6.82

T22.1×13.7×12.7

22.0±0.4

13.7±0.4

12.7±0.4

13.50

T25×15×8

25.0±0.4

15.0±.4

8.0±0.3

12.40

T25×15×10

25.0±0.4

15.0±0.4

10.0±0.3

15.20

T25×15×13

25.0±0.4

15.0±0.4

13.0±0.3

20.00

T25×15×15

25.0±0.4

15.0±0.4

15.0±0.4

23.30

T25.4×12.7×9.35

25.4±0.4

12.7±0.4

9.35±0.3

21.50

T25×15×12

25.4±0.4

15.0±0.4

12.0±0.4

18.80

T25×15×12.7

25.4±0.4

15.0±0.4

12.7±0.4

19.50

T26×14.5×15

26.0±0.4

14.5±0.4

15.0±0.4

24.50

T28×16×8

28.0±0.4

16.0±0.4

8.0±0.3

15.20

T28×16×10

28.0±0.4

16.0±0.4

10.0±0.3

19.20

T28×16×13

28.0±0.4

16.0±0.4

13.0±0.3

24.5

T28×16×6.35

28.0±0.4

16.0±0.4

6.35±0.3

11.8

T29×19×15

29.0±0.5

19.0±0.4

15.0±0.3

27.5

T31×19×8

31.0±0.5

19.0±0.5

8.0±0.3

18.2

T31×19×13

31.0±0.5

19.0±0.5

13.0±0.4

29.0

T31×19×15

31.0±0.5

19.0±0.5

15.0±0.4

33.4

T36×23×15

36.0±0.5

23.0±0.5

15.0±0.4

41.4

T38×19×13

38.0±0.5

19.0±0.5

13.0±0.5

51.8

T38×22×13

38.5±0.5

22.0±0.5

13.0±0.4

50.8

T40×24×16

40.0±0.5

24.0±0.5

16.0±0.4

58.2


TYPE

Effective parameter

ALnH/N2)(AL±20%

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

T22×14×10

39.3

54.7

2150

2250

4500

6300

9000

T22×13.7×6.35

26.2

54.0

1410

1400

3000

4200

6000

T22.1×13.7×12.7

52.8

54.1

2860

2900

6100

8500

12000

T25×15×8

39.1

60.2

2350

2000

4100

5700

8200

T25×15×10

48.9

60.2

2940

2500

5100

7150

10200

T25×15×13

63.6

60.2

3830

3200

6650

9300

13300

T25×15×15

73.4

60.2

4420

3700

7650

10700

15300

T25.4×12.7×9.35

58.1

55.3

3210

3100

6500

9100

13000

T25×15×12

58.7

60.2

3530

3000

6100

8600

12000

T25×15×12.7

62.1

60.2

3740

3150

6500

9100

13000

T26×14.5×15

83.8

60.5

5042

2800

8250

11500

17500

T28×16×8

48.1

65.6

3155

2100

4500

6300

8650

T28×16×10

60.1

65.6

3942

2700

5600

7800

11000

T28×16×13

76.0

65.6

4990

3500

7300

10200

14500

T28×16×6.35

38.2

65.6

2506

1700

3600

5000

7100

T29×19×15

74.9

73.2

5481

3100

6100

8500

12800

T31×19×8

47.1

75.5

3550

1900

3900

5500

7800

T31×19×13

76.5

75.5

2770

3100

6400

8900

12700

T31×19×15

88.2

75.5

6660

2100

6900

9700

14500

T36×23×15

112

93.8

10500

3200

7600

10600

15200

T38×19×13

118.7

82.7

9820

3100

8500

12000

18500

T38×22×13

123

86.1

10590

3200

9000

11000

15800

T40×24×16

125

86.3

12100

3900

8200

11400

16400


TYPE

Dimension:mm

Weight: g

D1

D2

H



T46×31×12

46.0±0.5

31.0±0.5

12.0±0.4

50.8

T48×30×15

48.0±0.5

30.0±0.5

15.0±0.4

75.4

T49×31.8×16

49.0±0.6

31.8±0.6

16.0±0.6

74.6

T49×34×16

49.0±0.6

33.8±0.5

16.0±0.4

73.2

T50×25×20

50.0±0.8

25.0±0.5

20.0±0.5

125.0

T50×30×19

50.0±0.8

30.0±0.7

19.0±0.5

107.0

T50×35×20

50.0±0.8

35.0±0.7

20.0±0.5

93.0

T50.8×31.8×19.1

50.8±05

31.8±0.5

19.1±0.5

107.0

T60×38×12

60.0±1.5

38.0±1.0

12.0±0.5

93.0

T60×38×20

60.0±1.5

38.0±1.0

20.0±0.5

137.7

T63×38×25

63.0±1.5

38.0±1.0

25.0±0.7

221.0

T68×44×15

68.0±1.5

44.0±1.0

15.0±0.7

143.0

T74×39×13

74.0±1.5

38.9±1.0

12.7±0.7

177.0

T79×50×26.5

79.0±1.5

50.0±1.0

26.5±0.7

355.0

T85.7×55.5×12.7

85.7±1.5

55.5±1.0

12.7±0.7

203.0

T100×50×20

100±1.2

50.0±0.9

20.0±0.4

565.0

T120×60×20

120±1.4

60.0±1.0

20.0±0.4

815.0

T124×60×40

124±1.8

60.0±1.5

40.0±0.4

1490.0

T140×65×20

140±1.8

65.0±1.5

20.0±0.8

1013.0

T150×110×27

150±2.0

110±2.0

27.0±1.0

1058.0


TYPE

Effective parameter

ALnH/N2)(AL±20%

Ae

(mm2)

Le

(mm)

Ve

(mm3)

M4P

M5K

M7K

M10K

T46×31×12

93

114

10600

2500

5100

7200

10300

T48×30×15

133

118

15700

3400

7050

9900

14000

T49×31.8×16

135

123

16622

3800

7600

9300

14800

T49×34×16

120

127.2

15264

4300

5800

9300

14800

T50×25×20

240

109

26200

6360

13000

19000

28000

T50×30×19

186

120

22400

4200

9000

12800

19000

T50×35×20

148

131

19403

2670

6800

9500

14500

T50.8×31.8×19.1

178

125

22300

4300

8650

12500

18000

T60×38×12

111

155

18840

2350

4850

6800

9750

T60×38×20

185

155

28700

3900

8100

11300

16000

T63×38×25

304

152

46200

4024

8140

11500

16280

T68×44×15

175

171

29925

2953

6210

9750

14200

T74×39×13

214

165

35310

4024

8140

12200

16280

T79×50×26.5

377.6

196

73913

4725

10800

15200

23000

T85.7×55.5×12.7

189

215

40635

2726

5520

7820

11040

T100×50×20

500

235.5

117750

5336

13340

18210

26680

T120×60×20

600

282.6

169560

5020

1140

1560

19270

T124×60×40

1202

260

312684

11136

27840

39310

55680

T140×65×20

718.2

294

211292

5856

14640

21350

29280

T150×110×27

535.9

402.1

215500

3324

8312

11420

16624


If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Lily Yu

Inquiry

If you are interested in our products or have any questions, contact us now!

related products
contact us now
TOP
