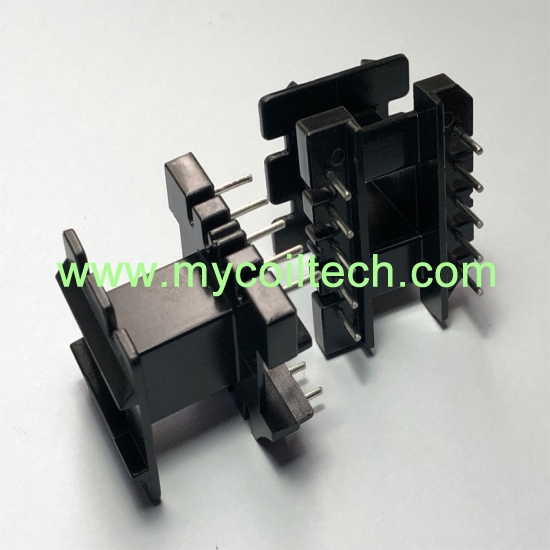

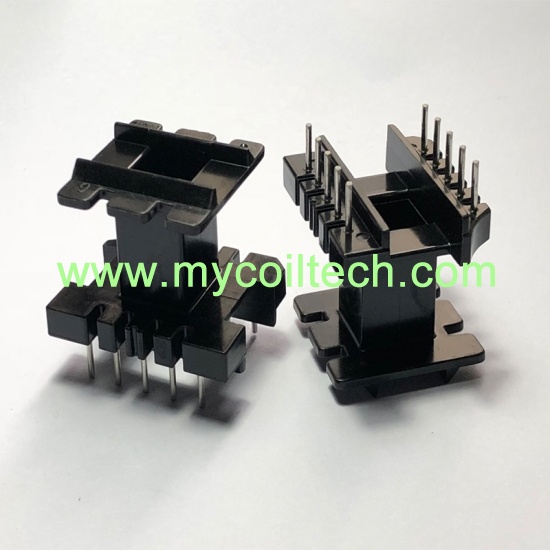

Customize EE35 transformer. 5+5 pin vertical EE35 coil former. Parallel distance=20.0mm. Pin pitch=5.0mm. EE35 Bobbin Size=32.0mmX25.1mmX26.7mm. DIP pin transformer bobbin. EE35 Phenolic material bobbin.
brand:
MCTitem no.:
MCT-EE3503shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.087$New high frequency bobbin EE35, vertical type pin 5+5, good quality and factory price, samples can be sent in 5 days.
Quick Details
|
Part Number: MCT-EE3503 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE35 Ferrite Core Bobbin For LED Drive Transformer
Product Range: Transformers, filters, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, choke inductors, high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

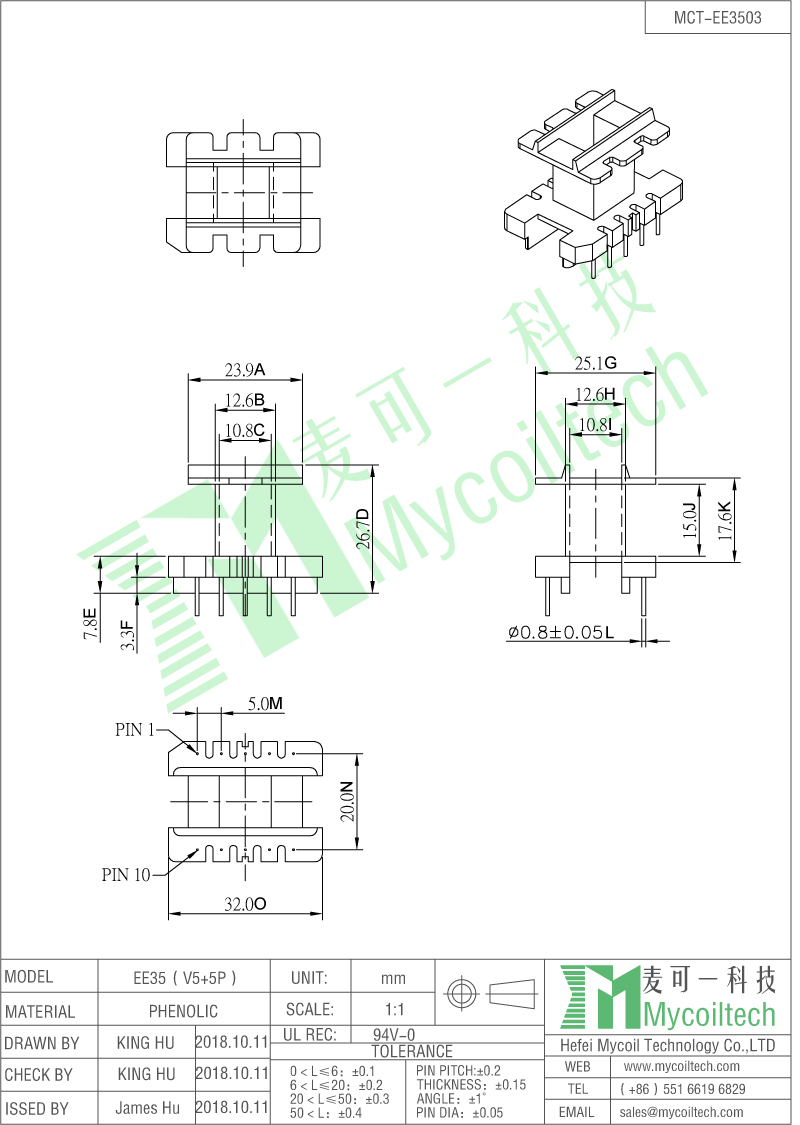

Product Specification
Welcome for inquiry, we will give you fast reply.
