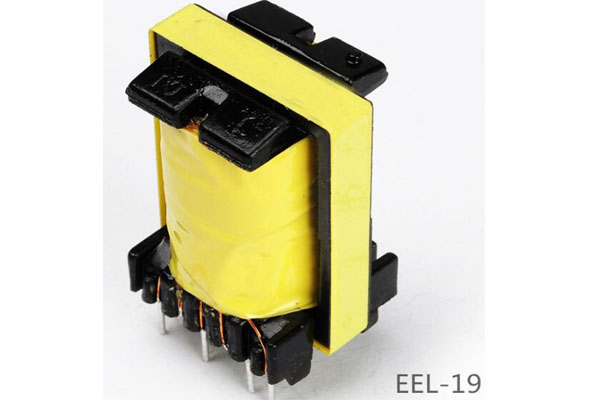

10~18W EL19 flyback transformer means the output power is 10~18W, main advantage is simple and low cost. In this series,our product mumber is MCTE1901-MCT1903
brand:
MCTitem no.:
10~18W EL19 Flyback Transformershipping port:
ShanghaiHefei Mycoil Technology Co.,LTD is professional manufacture in designing, producing electronic transformers, choke coils, full range of SMD power inductors. We are ISO9001:2008 certification factory, which located in Anhui province(near to Shanghai). We have about 200 workers working at the factory, 5 main engineers and about 10 works as QC, 8 sets Automatic CNC Winding Machines, 50 sets semi-auto CNC Winding Machines.
10~18W EL19 series high frequency flyback transformers are suitable for EE/CCFL inverter or DC/DC converter, switching power transformer, pulse transformer, EE5 current sensor transformer, ADSL transformer and PQ type high frequency switch transformer, EP type magnet shielding switch transformer, RM type communication filter, aux power transformer. We offer OEM services on all our product lines, we accept customized specifications and customized remark or logo on electronic components.
Quick Details
|
Part No: 10~18W EL19 Flyback Transformer |
|
Brand name: MCT |
|
The operating frequency: 20kHz-500KHz |
|
Custom made: Available |
|
Working temperature: -40 ℃ to + 125 ℃ |
|
Logo: Can be customized |
|
Storage temperature: -25 ℃ to + 85 ℃ |
|
Packing: Carton,can custom |
|
Storage humidity: 30 to 95% |
|
Certification: ISO9001,ROHS,CE |
|
Power range: 0.5W~18W |
|
OEM: Available |
|

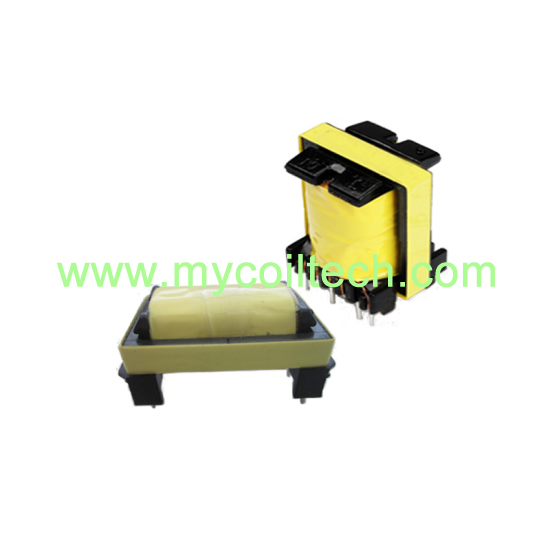

Shape type: horizontal, vertical |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: 10~18W EL19 Output High Frequency Flyback Transformer
Applications: Single-phase Transformer, DC-DC converter, Driving transformer, Power transformer, Digital camera, hand-held switching mode power charger
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Details
EL19-2 type OUTPUTS:5 or 12v flyback transformer, our PN includes MCTE1901 MCTE1902.
SIZE EL19-5 OUTPUTS:3.3/5/12/18/30v flyback transformer, our PN is MCTE1903.
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
