Advantages and Application of EE/EEL/EF Magnetic Core June 2,2021.

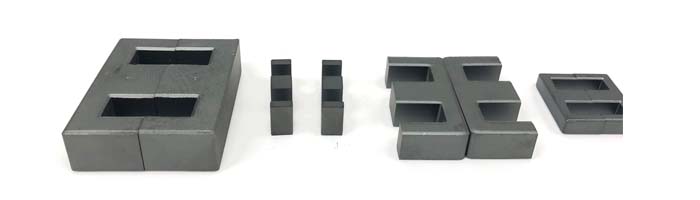

EE/EF/EEL Core Features

1)With large winding area, it’s convenient to winding and wiring.

2)Wide application range, high working frequency, wide working voltage range, high output power and good thermal stability.

Power Magnetic Core Factory

EE/EF/EEL Core Application

It is widely used in the fields of program-controlled switch power supply, LCD power supply, high-power UPS inverter power supply, computer power supply, energy-saving lamp and other fields.

EE/EF/EEL Transformer Manufacturing

EE core and EF type cores are the main component of electronic transformers, especially in high frequency transformers. According to the different size, we produce different series SMPS transformers, Such as: EF12.6, EF20,EF25,EF30, EF32, EF36, EE20,EE25,EE35,EE65,EEL16, EEL19, EEL25,etc. Most of them are customized.

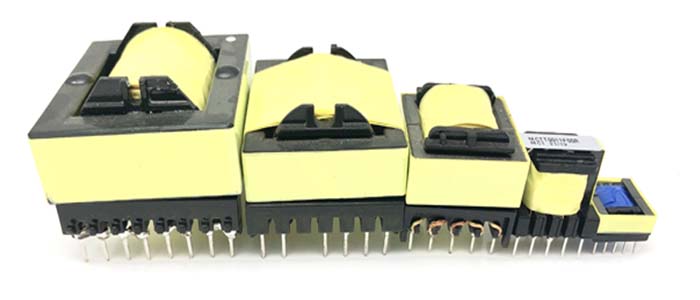

Switching Mode Power Supply Transformer

SMPS Transformer Application

SMPS transformers are widely used in green light, home appliances, computers and peripheral equipment, office automation, industrial control equipment, communication equipment, EMI suppression, auto and mechanical automatic control.
