ER-Type Bobbin:Structure, Application Scenarios and Performance Advantages

1. Structural Features

The magnetic core of the ER-type Bobbin is E-shaped, but its appearance is different from that of EF-type and EFD-type bobbins. The magnetic core of the ER-type Bobbin is usually relatively flat, with the height of the middle column and side columns being relatively low. This design allows the ER-type Bobbin to occupy less space in the vertical direction, making it more suitable for application scenarios with height restrictions.

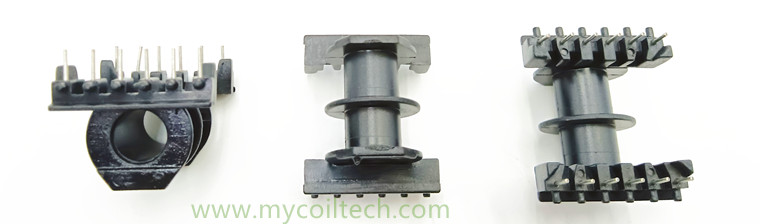

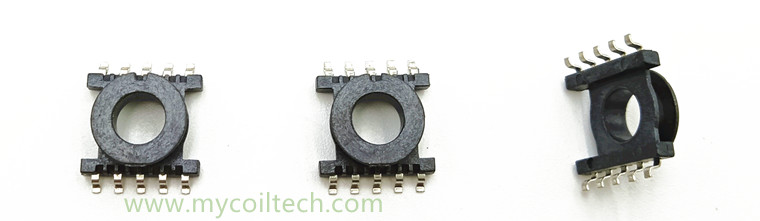

The number and layout of pins of the ER-type Bobbin vary according to different models and application requirements. The common types include through-hole type and surface-mount type (SMD), such as the ER35 transformer bobbin and SMD-ER11.5 switching power supply transformer. Its size specifications include ER8, ER10, ER12, ER16, ER20, etc. ER-type Bobbins of different sizes are suitable for transformers with different power and space requirements.

2. Application Scenarios

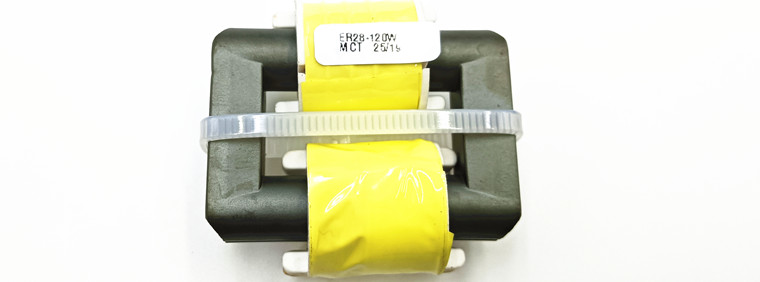

ER-type Bobbins are often used in fields such as ER28 DC-DC conversion transformers, switching power supplies, and high-frequency transformers. They are especially widely applied in miniaturized electronic products that have strict requirements on the volume and height of transformers.

For example, in portable power supply devices like mobile phone chargers and tablet chargers, the ER-type Bobbin, relying on its flat structural design, can achieve efficient power conversion in limited space, meeting the miniaturization and high-performance requirements of devices for power supplies.

3. Performance Advantages

The flat structural design of the ER-type Bobbin enables it to have lower winding resistance and inductive loss in high-frequency electronic transformer applications, which can effectively improve the high-frequency performance and efficiency of transformers.

At the same time, due to its compact size, it can save space in miniaturized electronic products, which is conducive to realizing the slim and lightweight design of products.

In addition, the ER-type Bobbin also has strong versatility. There are various sizes and pin configurations available on the market, facilitating engineers in design and component selection.
