Horizontal QP35 transformer bobbin. 2+2 Pins bobbin.
Parallel Distance=22mm. Phenolic material bobbin. UL REC:94V-0
Bobbin Size=36mmX25.2mmX31.4mm. Accept make bobbin tooling.
brand:
MCTitem no.:
MCT-QP3501(H2+2P)shipping port:
ShanghaiProfessional electronic components manufacture, 2018 new design QP35 horizontal 2+2 pins transformer bobbins. All products we produced were double tested, also with advanced manufacturing process. We can provide free bobbin samples for your testing.
Quick Details
|
Part Number: MCT-QP3501(H2+2P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: 2+2 Pins QP35 Electronic Transformer Bobbin for Ferrite Cores
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification

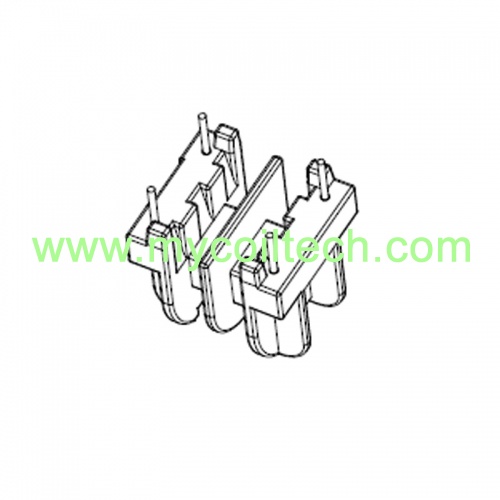

EI35 Encapsulated Transformer Double Slots Bobbin
EI35 ferrite core bobbin. Double slots EI35 coil former. Parallel distance=20.5mm. Bobbin pin pitch=5.0mm. Bobbin size=29.4mmX24.2mmX31.2mm. We manufacture various HF transformer, CT transformers, bobbins and supply magnetic cores, we can make new bobbin/core tooling to meet special requirements.
2+2 Pins EI19 Horizontal Transformer Frame
EI19 transformer bobbin, 3+3 pins EI19 DIP bobbin, vertical shape EI19 bobbin. Bobbin Size=18.0mmX13.5mmX16.4mm. Pin pitch=3.3mm. Parallel Distance=15.00mm. Phenolic material EI19 bobbin, we manufacture EI19 electronic transformers.

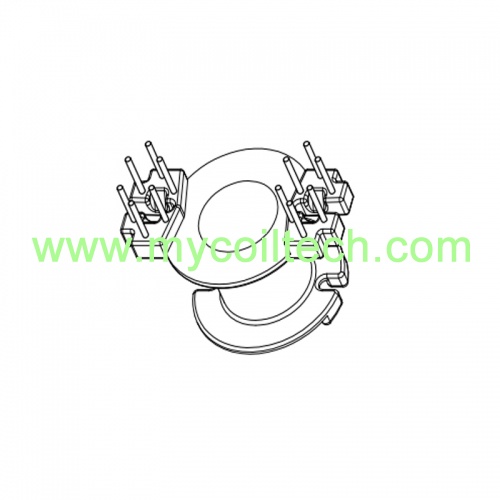

RM14 Bobbin For LED Control Transformer
RM14 signal transformer frame. 6+6 pin vertical coil former. Bobbin size=41.0mmX31.4mmX28.8mm. Pin pitch=5.08mm. Parallel distance=35.6mm. Widely used in communication transformer, high frequency Transformer, main power transformer and SMPS transformer. We have many bobbin toolings, for special size, we can make new tooling to meet requirement.
EF16 Switching Transformer Vertical Bobbin
EF16 power transformer frame, vertical EF16 4+4 pin bobbin 4+4 pin. Row distance=10.2mm. Pin pitch=3.70mm. Bobbin Size=17.0mmX14.6mmX13.05mm. SMPS transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
Military Single Phase DC EMI Filters
Military electronic installation filters. Excellent performance at high and low frequency. Type: DC. Rated current from 1A to 10A. Test Voltage ( 1min ): Line to Ground: 700VAC. Line to Line:400VDC.
EF25 Power Charger Transformer Horizontal Bobbin
EF25 SMPS transformer. 5+5 pin horizontal bobbin EF25. Bobbin Size=24.0mmX23.8mmX21.5mm. Pin pitch=2.5mm. Parallel Distance=20.5mm. PC40 material EF25 ferrite core. DIP type transformer bobbin.
Horizontal Bobbin EF15 Transformer Bobbin With 4+5 Pins
4+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance1=12.5mm Parallel Distance2=14.5mm
EP10 Transformer Clips, Manganese Steel Transformer Iron Clips
NO HOLE EP10 Transfromer Iron Clips,UL REC:94V-0 Material: Manganese Steel T=0.2±0.02mm Clips Size=13.5mmX11mmX8mm
Dip EP7-13 Horizontal Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.2mm Size=9.4mmX7.7mmX8.2mm
PQ35 Ferrite Core Power Transformer Bobbin
PCB mount transformer PQ35/35 bobbin. No pin transformer PQ35 bobbin. Bobbin Size=31.5mmX31.0mmX30.9mm. PQ35 high frequency transformer widely used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
PQ45 Power Supply Transformer Frame
PCB mounting transformer PQ45 bobbin, PQ45/45 soft ferrite core, PET material PQ45 coil bobbin. PQ45 transformer used in home appliance power supplies, inverters, medical equipments. computers, UPS, cusomer electronics, welcome customzied components.
Vertical EE65/32/27 Bobbin For Power Transformer
EE65 electronic transformer bobbin. Single phase EE65/32/27 bobbin. Coil former Size=55.0mmX53.5mmX59.1mm. Parallel Distance=48.0mm.Pin pitch=5.0mm. We supply matched EE65 ferrite cores and transformers. EE65 transformer widely used in UPS, switching mode power supply, telecom communication systems, welding machines and other industries.
